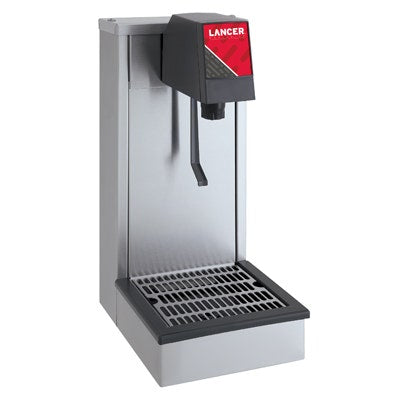

Lancer 301 Island Base Dispenser, 1 Valve

Confirm your fit · 30 seconds

Is the Tower 301 the right dispenser for your build?

The 301 is the smallest in the 30x family — single-valve, single-flavor. If you need 2+ flavors, we'll point you to the right sibling. Answer 3 questions.

1. What's the situation?

2. How many flavors do you need on tap?

3. What's the use case?

4. About how many pours per day at peak?

2. What dispenser are you replacing?

3. Why are you replacing it?

· Or call our techs at 888-964-4239

Don't get caught short

Build the complete 1-valve install in one click

The 301 is the tower head — sized for a counter cold plate or ice well. To pour you also need a CO₂ supply, regulator, carbonator (for soda), BIB rack, syrup pump, water filter, backflow preventer, and tubing. Uncheck what you already have. If you're running a plain water station, skip the carbonator and the syrup pump.

Complete Lancer 301 install bundle (1-valve)

Required + recommended components per Lancer's install guide. The 301 chills via external cold plate or ice bath — your existing bar setup typically has this.

1-valve preset

$0 0 items selected

Already own a Lancer?

Skip the rebuild — find the part you need

Most Lancer service jobs are one or two parts, not a whole new dispenser. Below are our top-selling Lancer replacement parts — or jump straight to the full catalog.

Lancer LPV 3.0 Versapour Selfserve Lever Valve | 19-73311-L

$89.99 $99.99

Lancer Syrup Separator - For LEV/GMV 3.0 oz Soda Valves

$10.87 $20.05

Lancer Diffuser One Piece LEV - 05-3261

$3.99 $4.73

Lancer Block Mounting Assembly for GMV/Versa-Pour - 82-0274-SP

$10.24

Lancer Nozzle 2 Shot GMV 3.0 - 05-1463/03

$3.35 $6.33

Lancer Micro Switch Replacement for LEV 3.0 & 4.5 oz. Soda Valves - Models 100 & 145

$1.84 $2.30

Lancer 120V Agitator Motor Assembly, 5/3 Gal - 91-4020-SP

$89.99

Lancer LPV 3.0 Versapour Self-Serve Valve | 19-73311-MB - 19-73311-MB

$165.28 $195.91

Lancer 3.0 oz/sec LEV 3.0 Self-Serve Lever Valve & Block - 19-0120/03

$96.45

Lancer LEV Self-Serve Lever Valve, No Cover - 19-0359/03

$92.87

Lancer 500 Series 2-Circuit Line Chiller - 85-0552A

$1,599.90 $1,999.99

Lancer LEV 3.0 Series Service Valve - Genuine OEM Replacement

$110.82

View all Lancer replacement parts →

Compare the Lancer 30x family

Same tower platform, different flavor capacity

All four are island-base towers built on the same 24V LEV platform. Pick by how many flavors you need on tap.

Model	This product 301 Single-Valve 85-3131-111 $407.91	302 Self-Serve 2-Valve $469.30	302 Push-Button Crew-Serve $493.51	305 Island Base 5-Valve $1,729.47
Valve count	1 LEV	2 LEV	2 LEV	5 LEV
Valve type	Self-serve lever	Self-serve lever	Push-button	Self-serve lever
Best for	Water station / single-flavor	2-flavor fountain	Bar / drive-thru crew-serve	Mid-flavor menu
Power	24V (transformer)	24V	24V	24V
Cooling	External (cold plate / ice bath)	External	External	External
Key lock	✓	✓	✓	✓
Build	Stainless steel	Stainless steel	Stainless steel	Stainless steel
	You're here	View →	View →	View →

Inside the Tower 301

Four things you connect, no internal cooling

The 301 is a single-valve tower — sits on top of a counter cold plate or in an ice bath. Water (or syrup), CO₂ (if soda), and power come in from below.

1
Water in1/4" line at 40+ PSI flowing. Filtered through the BEV135 → carbonator (if soda) → tower.
2
CO₂ in (soda only)From the 20 lb tank → primary regulator → carbonator → tower at 70–80 PSIG. Skip if you're running plain water or non-carbonated juice.
3
Syrup in × 1One Bevlex line from the BIB, pulled by a single Flojet pump at 55–65 PSI. One pump per tap. Skip if it's a water-only station.
4
Cold plate or ice bath (external)The 301 has no internal cooling — it relies on the bar's existing counter cold plate or a flooded ice well. Line pre-chills before it reaches the valve.
5
Power24V via the included transformer (plugs into a standard 115V receptacle).

Lancer Tower 300 Series Spec Sheet

Full Lancer reference covering 301, 302, 305, and 306 tower variants — exact dimensions, electrical, water + CO₂ specs, valve options (PDF).

Download →

Before your installer shows up

Pre-install checklist

Seven things to confirm before the truck arrives. Saves a return visit.

✓

External cold plate or ice wellThe 302 has no internal cooling. Most bar wells already have one — confirm yours does, or budget for a counter cold plate.

✓

115V outlet within 6 ftFor the 24V transformer that ships with the tower. Standard residential receptacle is fine.

✓

Cold water line, 1/4" min40+ PSI flowing. If under 40, add the booster pump from the bundle.

✓

Floor drain with air gap3/8" line. Code requires the air gap — don't hard-pipe.

✓

CO₂ supply staged20 lb tank fits under most counters. Fill at a local welding/beverage gas supplier.

✓

Tower mount footprint~6" wide × ~13" deep on the counter (single-valve tower is the smallest in the family). Plumbing comes up through the counter.

✓

BIB shelf / under-counter spaceOne BIB rack (~24" × 12") holds the single syrup box. Skip entirely for water-only stations.

Common questions

What buyers ask before they pull the trigger

Three common patterns: (1) a filtered water station — chilled water on tap for restaurants, gyms, or break rooms; (2) a single-flavor juice or lemonade tap; (3) a signature soda or specialty beverage tap. The 301 is overkill if you need 2+ flavors — step up to the 302 instead.

No — and this is the most common surprise. The 301 is a tower head only. It mounts above (or in) an external cold plate or ice bath. Most bar wells already have a cold plate built in. If yours doesn't, budget for a separate counter cold plate. Call our techs to spec one to fit your setup.

No. The 301 is the tower only. If you're running soda you also need a carbonator (we ship the McCann's Big Mac), CO₂ supply, regulator, syrup pump, BIB rack, and tubing. The bundle above pre-specs all of it. For plain water or non-carbonated juice, skip the carbonator and CO₂ side entirely — just water filter + line + pump.

No special wiring. The 301 ships with a 24V transformer that plugs into a standard 115V receptacle. The 24V is just what the LEV solenoid valves run on internally. Same household outlet you'd use for any small appliance.

No — the 301 chassis is hard-built for a single valve. If you think you'll grow past 1 flavor, step up to the 302 (2-valve) — same tower platform, same install pattern, just one extra valve. Difference is about $60. Call our techs and we'll quote both side by side.

Daily: wipe the nozzle and drip tray, sanitize the valve face. Weekly: chemical line cleaning if it's running syrup. Quarterly: change the BEV135 water filter and inspect the backflow preventer. We sell the cleaning kits — call our techs if you want a maintenance bundle priced out.

Lancer factory warranty is 1 year parts and labor on the tower. We stock the 301 — most orders ship same-day if placed before 2pm CT, ground transit 3–5 days to most US zips. International freight available, call for a quote.

Still unsure? Call the techs.

You're spending $3K+ on a 10-year piece of equipment. A 5-minute call with someone who's installed 200 of these is free, and almost always cheaper than the wrong order.
