What's the difference between cube ice and nugget ice on this dispenser?

The cold plate is identical — both versions chill drinks the same way. The difference is the ice bin's auger and dispense path. Cube-ice models work with standard half-cube or smaller from any commercial ice machine. Nugget-ice models accept Sonic-style chewable ice.

Does the dispenser come with a carbonator?

No. The IBD22H is the head unit only. You also need a carbonator, CO₂ supply, regulator, syrup pumps, BIB racks, and tubing. The bundle on this page includes all of it pre-specced from Lancer's install guide.

What ice machine pairs with the IBD22H?

Any commercial machine producing half-cube, full-cube, or smaller. Plan ~1 lb ice per 4–5 drinks; the 180 lb bin handles ~700 drinks before refill.

Can I add a 7th valve later?

No — the IBD22H chassis is hard-built for 6 valves. For 7+ flavors, get the Lancer CED-400 8-valve unit instead.

Ice Dispenser - Lancer IBD25H 8-Valve Ice + Beverage

Q: Can I run this on a standard 110V outlet?

Yes — standard 115V, the same outlet you'd plug a microwave into. Dedicated 15A circuit recommended.

Confirm your fit · 30 seconds

Is the IBD25H the right dispenser for your build?

The 25H sits between the IBD22H (6-valve) and IBD30H (10-valve) — 8 flavors, 25" wide. Answer 3 questions and we'll confirm or route you to the right sibling.

1. What's the situation?

2. How many flavors do you need on tap?

3. About how many drinks per day at peak?

4. What kind of ice will you be serving?

2. What dispenser are you replacing?

3. Why are you replacing it?

· Or call our techs at 888-964-4239

Don't get caught short

Build the complete 8-valve install in one click

The IBD25H is the head unit. To actually pour drinks you also need a CO₂ supply, regulator, carbonator, BIB racks, syrup pumps (one per valve), water filter, backflow preventer, and tubing. We've pre-specced all of it from Lancer's install guide. Uncheck what you already have.

Complete IBD25H install bundle (8-valve)

Required + recommended components per Lancer's install guide. Quantities scale with valve count — 8 syrup pumps and 4 BIB racks for the 25H's 8 flavors.

8-valve preset

$0 0 items selected

Already own a Lancer?

Skip the rebuild — find the part you need

Most Lancer service jobs are one or two parts, not a whole new dispenser. Below are our top-selling Lancer replacement parts — or jump straight to the full catalog.

Lancer LPV 3.0 Versapour Selfserve Lever Valve | 19-73311-L

$89.99 $99.99

Lancer Syrup Separator - For LEV/GMV 3.0 oz Soda Valves

$10.87 $20.05

Lancer Diffuser One Piece LEV - 05-3261

$3.99 $4.73

Lancer Block Mounting Assembly for GMV/Versa-Pour - 82-0274-SP

$10.24

Lancer Nozzle 2 Shot GMV 3.0 - 05-1463/03

$3.35 $6.33

Lancer Carbonation Tester Kit - For Soda Fountain Service

$108.77

Lancer Micro Switch Replacement for LEV 3.0 & 4.5 oz. Soda Valves - Models 100 & 145

$1.84 $2.30

Lancer 3.0 oz/sec LEV 3.0 Self-Serve Lever Valve & Block - 19-0120/03

$119.99

Lancer LEV Self-Serve Lever Valve, No Cover - 19-0359/03

$92.87

Lancer 120V Agitator Motor Assembly, 5/3 Gal - 91-4020-SP

$89.99

Lancer 24 VDC Soda Valve Solenoid with Connectors - Replacement Part

$157.90

Lancer LPV 3.0 Versapour Self-Serve Valve | 19-73311-MB - 19-73311-MB

$165.28 $195.91

View all Lancer replacement parts →

Compare the IBD-H family

Same chassis, different size and valve counts

All four are integrated cube-ice IBDs with cold plate and -H insulation upgrade. Pick by flavor count + ice bin size.

Model	IBD22H 6-Valve $3,099.99	This product IBD25H 85-4528H-111 $3,903.79	IBD30H 8-Valve $5,665.40	IBD30H 10-Valve $6,348.33
Valve count	6 LEV	8 LEV	8 LEV	10 LEV
Width	22"	25"	30"	30"
Ice bin capacity	180 lb	180 lb	250 lb	250 lb
Ice type	Cube	Cube	Cube	Cube
Cold plate	✓	✓	✓	✓
-H insulation upgrade	✓	✓	✓	✓
Power	115V	115V	115V	115V
Best for	Standard bar / restaurant menu	Mid-flavor menu, busy bar	Larger bin for high volume	Full-flavor menus
	View →	You're here	View →	View →

Inside the IBD25H

Six things you connect, one thing you fill

A post-mix dispenser is just a precision blender for water + CO₂ + flavor syrup, chilled by an ice bath. Here's what plumbs into the 8-valve 25H.

1
Water in1/4" line, 40+ PSI flowing. Filtered by the BEV135 in the bundle, then to the carbonator.
2
CO₂ inFrom the 20 lb tank → primary regulator → carbonator → dispenser at 70–80 PSIG.
3
Syrup in × 8One Bevlex line per BIB, pulled by a Flojet pump at 55–65 PSI. Eight lines = eight valves.
4
Drain3/8" line to floor drain with an air gap (code requirement).
5
Ice fill180 lb bin — top off morning + mid-shift. Pairs with any ice machine making 1/2" cube or smaller.
6
PowerStandard 115V, 15A receptacle. Dedicated circuit recommended.

Lancer IBD Series Spec Sheet

Full Lancer reference covering the IBD22H, IBD25H, IBD30H, and IBD44 — exact dimensions, electrical, water + CO₂ specs, valve options, ice-bin capacities (PDF).

Download →

Before your installer shows up

Pre-install checklist

Seven things to confirm before the truck arrives. Saves a return visit.

✓

115V outlet within 6 ftDedicated 15A circuit recommended. Standard residential receptacle is fine.

✓

Cold water line, 1/4" min40+ PSI flowing. If under 40, add the booster pump from the bundle.

✓

Floor drain with air gap3/8" line. Code requires the air gap — don't hard-pipe.

✓

CO₂ supply staged20 lb tank fits under most counters. Fill at a local welding/beverage gas supplier.

✓

Counter cutout (if drop-in)25" × ~21" deep — 3" wider than the IBD22H. Measure your existing cutout if replacing.

✓

Ice machine within reachHalf-cube or smaller. Bin holds 180 lb but doesn't make ice — supply is on you.

✓

BIB shelf / under-counter spaceEach BIB rack is ~24" × 12". You'll need 4 racks for 8 valves.

Common questions

What buyers ask before they pull the trigger

The 25H is the middle child. IBD22H is 22" wide / 6 valves. The 25H is 25" wide / 8 valves with the same 180 lb ice bin. IBD30H jumps to 30" / 8-or-10 valves with a 250 lb bin. If you need 8 flavors but want the smaller ice bin (lower restock frequency, less under-counter space needed), the 25H is the right pick.

Standard 115V — the same outlet you'd plug a microwave into. Dedicated 15A circuit is recommended so the carbonator and dispenser aren't fighting another appliance, but it's not strictly required.

No — and this is the #1 surprise on first-time installs. The 25H is the head unit only. You also need a carbonator (we ship the McCann's Big Mac), CO₂ supply, regulator, syrup pumps (8 of them), BIB racks, and tubing. The bundle above includes all of it pre-specced from Lancer's install guide.

Any commercial machine producing half-cube, full-cube, or smaller. Manitowoc Indigo, Hoshizaki KM, Scotsman Prodigy — all standard. Bigger cubes will jam the agitator. Volume-wise, plan ~1 lb ice per 4–5 drinks; the 180 lb bin handles ~700 drinks before refill at peak. For higher-volume sites, the IBD30H's 250 lb bin gives you more runway.

Daily: drain the ice bin, wipe the cold plate, sanitize the nozzles and trays. Weekly: chemical syrup-line cleaning per BIB. Quarterly: change the BEV135 water filter and inspect the backflow preventer. We sell the cleaning kits — call our techs if you want a maintenance bundle priced out.

No — the IBD25H chassis is hard-built for 8 valves. If you think you'll need 9+ within a year or two, step up to the IBD30H 10-valve. Same install pattern, larger ice bin, room for the extra valves. Call our techs and we'll quote both side by side.

Lancer factory warranty is 1 year parts and labor on the head unit. We stock the IBD25H — most orders ship same-day if placed before 2pm CT, ground transit 3–5 days to most US zips. International freight available, call for a quote.

Still unsure? Call the techs.

You're spending $3K+ on a 10-year piece of equipment. A 5-minute call with someone who's installed 200 of these is free, and almost always cheaper than the wrong order.

888-964-4239 Mon–Fri 8:30am–5pm CT

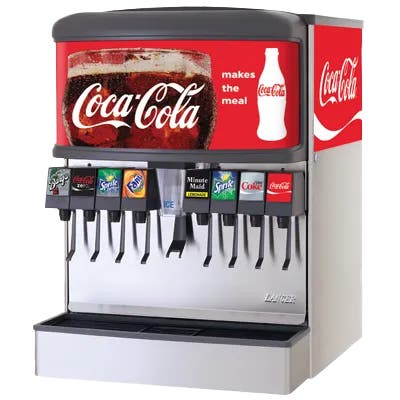

Ice Cube Dispenser 8-Valve - Lancer IBD25H Combination Ice + Beverage
