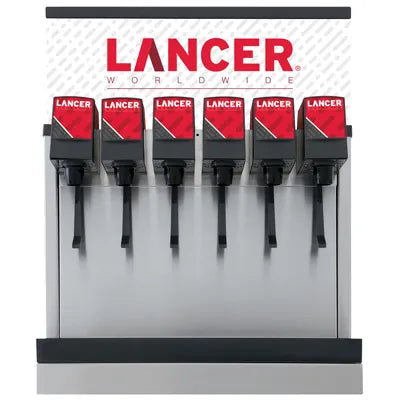

Lancer CED 1506E 6-Valve Countertop Soda Dispenser

Confirm your fit · 30 seconds

Is the CED 1506E the right dispenser for your build?

The CED 1506E is a 6-valve counter-electric — self-contained refrigeration, no external cold plate or ice fill. The CED line includes 4-, 6-, and 8-valve models. Answer 3 questions and we'll route you to the right one.

1. What's the situation?

2. How many flavors do you need on tap?

3. Where will it sit?

4. About how many drinks per day at peak?

2. What dispenser are you replacing?

3. Why are you replacing it?

· Or call our techs at 888-964-4239

Don't get caught short

Build the complete 6-valve install in one click

The CED 1506E has its own internal compressor and ice bank — you DON'T need an external cold plate or ice fill. But you still need a CO₂ supply, regulator, carbonator, BIB racks, syrup pumps, water filter, backflow preventer, and tubing. We've pre-specced all of it. Uncheck what you already have.

Complete CED 1506E install bundle (6-valve)

Required + recommended components per Lancer's install guide. Quantities sized for the 1506E's 6-valve menu — 6 syrup pumps, 3 BIB racks.

6-valve preset

$0 0 items selected

Already own a Lancer?

Skip the rebuild — find the part you need

Most Lancer service jobs are one or two parts, not a whole new dispenser. Below are our top-selling Lancer replacement parts — or jump straight to the full catalog.

Lancer LPV 3.0 Versapour Selfserve Lever Valve | 19-73311-L

$89.99 $99.99

Lancer Syrup Separator - For LEV/GMV 3.0 oz Soda Valves

$10.87 $20.05

Lancer Block Mounting Assembly for GMV/Versa-Pour - 82-0274-SP

$10.24

Lancer Diffuser One Piece LEV - 05-3261

$3.99 $4.73

Lancer Nozzle 2 Shot GMV 3.0 - 05-1463/03

$3.35 $6.33

Lancer Micro Switch Replacement for LEV 3.0 & 4.5 oz. Soda Valves - Models 100 & 145

$1.84 $2.30

Lancer 3.0 oz/sec LEV 3.0 Self-Serve Lever Valve & Block - 19-0120/03

$119.99

Lancer LEV Self-Serve Lever Valve, No Cover - 19-0359/03

$92.87

Lancer 120V Agitator Motor Assembly, 5/3 Gal - 91-4020-SP

$89.99

Lancer LPV 3.0 Versapour Self-Serve Valve | 19-73311-MB - 19-73311-MB

$165.28 $195.91

Lancer 500 Series 2-Circuit Line Chiller - 85-0552A

$1,599.90 $1,999.99

Lancer LEV 3.0 Series Service Valve - Genuine OEM Replacement

$110.82

View all Lancer replacement parts →

Compare the Lancer CED line

Same self-contained chassis, different valve counts

All four are counter-electric dispensers with built-in compressor + ice bank — no external cold plate or ice fill needed. Pick by flavor count.

Model	CED-400 4-Valve $2,782.52	This product CED 1506E 11L07106 $2,799.99	CED 1506 6-Valve LEV $3,164.54	CED 2508 8-Valve Post-Mix $5,449.95
Valve count	4 LEV	6 LEV	6 LEV	8 LEV
Compressor	1/3 HP	1/3 HP	1/3 HP	1/2 HP
Ice bank	14 lb	30 lb	30 lb	40 lb
Brand graphics	✓	✓	✓	✓
Power	115V	115V	115V	115V
Form factor	Counter-top	Counter-top	Counter-top	Counter-top
Best for	C-store, drive-thru, small bar	Standard 6-flavor soda menu	6-valve LEV variant	Full 8-flavor menu
	View →	You're here	View →	View →

Inside the CED 1506E

Self-contained — no ice fill required

The CED 1506E has its own compressor + 30 lb ice bank inside. You just plumb water, CO₂, and syrup in — the dispenser handles the cooling itself. Here's what connects.

1
Water in1/4" line, 40+ PSI flowing. Filtered by the BEV135 in the bundle, then to the carbonator.
2
CO₂ inFrom the 20 lb tank → primary regulator → carbonator → dispenser at 70–80 PSIG.
3
Syrup in × 6One Bevlex line per BIB, pulled by a Flojet pump at 55–65 PSI. Six lines = six valves.
4
Drain3/8" line to floor drain with an air gap (code requirement).
5
No ice fill neededThe CED 1506E's internal 30 lb ice bank is built and maintained by the 1/3 HP compressor — no external ice machine connection required. This is the headline difference from the IBD-H series.
6
Power115V, dedicated 15A circuit recommended (the compressor draws meaningfully more current than an ice-fed dispenser). Provide ~3" rear clearance for compressor airflow.

Lancer CED Series Spec Sheet

Full Lancer reference covering CED-400, CED 504, CED 1506, CED 2300, and CED 2508 — exact dimensions, electrical, compressor/ice-bank specs, valve options (PDF).

Download →

Before your installer shows up

Pre-install checklist

Seven things to confirm before the truck arrives. Saves a return visit.

✓

115V dedicated 15A circuitThe 1/3 HP compressor draws meaningfully more than ice-fed dispensers — a dedicated circuit prevents nuisance trips when other appliances cycle on.

✓

Cold water line, 1/4" min40+ PSI flowing. If under 40, add the booster pump from the bundle.

✓

Floor drain with air gap3/8" line. Code requires the air gap — don't hard-pipe.

✓

CO₂ supply staged20 lb tank fits under most counters. Fill at a local welding/beverage gas supplier.

✓

3" rear clearanceCompressor airflow exits the back. Cramming the unit against a wall causes the compressor to overheat and the ice bank to fall behind during peak service.

✓

Counter footprint~22" wide × ~24" deep. Plan for the 3" rear clearance on top of the counter dimension.

✓

BIB shelf / under-counter spaceEach BIB rack is ~24" × 12". You'll need 3 racks for 6 valves.

Common questions

What buyers ask before they pull the trigger

The IBD-H series chills drinks via an external ice bath — you load cube ice into the bin every shift. The CED 1506E has a built-in 1/3 HP compressor and 30 lb internal ice bank that the unit maintains itself. No ice fill, no ice machine connection. Trade-offs: the CED 1506E draws more electricity (compressor running) and has a hard cap on cold-plate capacity (the ice bank takes time to recover during high-volume runs). For standard 6-flavor menus on counter installs without a dedicated ice well, it's the right pick.

Yes — 115V, but use a dedicated 15A circuit. The compressor cycle pulls more current than an ice-fed dispenser, and sharing a circuit with another appliance (microwave, coffee grinder, etc.) leads to nuisance trips during peak. The bundle above doesn't include the receptacle work — that's on your electrician.

No. The CED 1506E is the head unit only. You also need a carbonator (we ship the McCann's Big Mac), CO₂ supply, regulator, syrup pumps (6 of them), BIB racks, and tubing. The bundle above includes all of it pre-specced from Lancer's install guide.

30 lb of ice translates to roughly 150–200 drinks before the compressor needs to recover. For under 500 drinks/day at peak that's plenty. For higher volume, you'll feel the cold plate slow down during sustained surges — that's the point at which stepping up to the CED 2508 (40 lb bank, 1/2 HP compressor) makes sense. Call our techs for a sizing check.

Daily: wipe the cold plate face, nozzles, and drip tray, sanitize valve faces. Weekly: chemical syrup-line cleaning per BIB. Quarterly: change the BEV135 water filter, inspect the backflow preventer, and vacuum the compressor condenser fins (rear of the unit). The condenser cleaning is critical — clogged fins are the #1 cause of CED compressor failures.

No — the CED 1506E chassis is hard-built for 6 valves. If you'll grow past 6 flavors within a year or two, step up to the CED 2508 (8-valve) or CCD-800 (8-valve portion control). Same install pattern, larger ice bank and compressor. Call our techs and we'll quote both side by side.

Lancer factory warranty is 1 year parts and labor on the unit. We stock the CED 1506E — most orders ship same-day if placed before 2pm CT, ground transit 3–5 days to most US zips. International freight available, call for a quote.

Still unsure? Call the techs.

You're spending $3K+ on a 10-year piece of equipment. A 5-minute call with someone who's installed 200 of these is free, and almost always cheaper than the wrong order.
