Lancer 120V Agitator Motor Assembly, 5/3 Gal - 91-4020-SP
Lancer 120V Agitator Motor Assembly, 5/3 Gal - 91-4020-SP
- Restores ice bank cooling efficiency.
- Prevents ice bank 'bridging' freeze-ups.
- Official Lancer OEM agitating motor.
- SKU: 91-4020-SP
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.

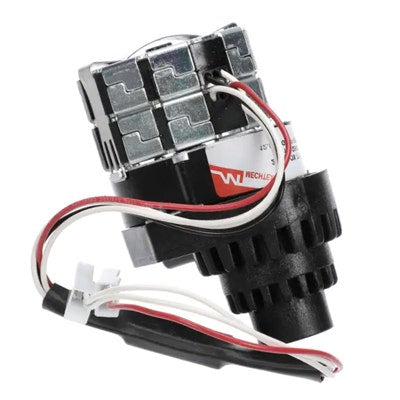

The Motor Assembly Agitator, 5/3 Gal is the high-torque electrical drive unit responsible for maintaining the ice bank's water circulation. Designed for 120V operation, it drives the propeller that moves water across the evaporator coils, ensuring the ice bank acts as an efficient thermal battery for the product lines.
Problem Solved: Restores circulation to prevent ice bank 'bridging'—where ice freezes solid around the product coils—ensuring even cooling across all circuits and preventing 'warm soda' calls.
Symptoms of Failure: Motor humming but not rotating, compressor tripping thermal overload, or agitating propeller failing to move the water bath despite power being present.
- Voltage: 120V / 60Hz
- Capacity: 5/3 Gallon Compatibility
- Application: Water Bath Agitation
- Type: High-Torque Inductive Motor
