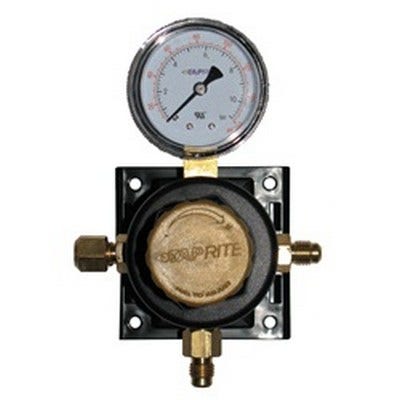

Taprite 5200 Series Secondary CO2 Soda Regulator | 160 PSI Gauge, 1/4" MFL Inlet/Outlet with Check Valve

In stock
Item: T5261SN-160
$69.99
| or |
GET PRO PRICING
Get lower prices, 30-Day Terms & 3% Back. Create a Free HowdyPro account
Express Options Available at Checkout
Express Checkout Logos
Sales Support Image

Call for Help & Best Pricing!

Speak with a real person based in San Antonio, TX!

888-964-4239 Live Chat

Quick Overview

  • Model: Taprite 5202C Series (Industrial BIB Rack Mount).
  • Pressure Range: 0-160 PSI (Optimized for Soda and High-Carbonation).
  • Connections: 1/4" MFL Inlet & 1/4" MFL Outlet with Check Valve.
  • Design: Inline secondary regulator for multi-pressure manifolds.
  • Safety: Integrated check valve prevents internal diaphragm contamination.
  • Construction: Forged brass body with a heavy-duty zinc bonnet.

Product Description

⌄

The Taprite 5200 Series Secondary Soft Drink Regulator is a high-pressure inline solution designed for the demanding requirements of soda fountain and Bag-in-Box (BIB) systems. Unlike primary regulators that attach directly to a tank, this secondary unit allows for precision pressure control of a single product line within a multi-tap manifold. With its 160 lb gauge, this regulator is engineered to handle the higher carbonation pressures required for soda concentrates and sparkling water, providing consistent, non-drift delivery even during peak service hours.

This professional-grade regulator is built for durability and safety. It features a 1/4" MFL (Male Flare) inlet for easy daisy-chaining and a 1/4" MFL outlet equipped with an integrated backflow check valve. This check valve is a critical safeguard, preventing syrup or liquid from backing up into the regulator diaphragm if a pressure drop occurs. The wall-mount bracket design makes it ideal for mounting directly onto a BIB rack or the back of a draught manifold, keeping your gas management system organized and easy to service.

Manifold Configuration Pro-Tip: Secondary regulators like the 5200 series are intended to be "daisy-chained." To build a 3-product manifold, you would connect the high-pressure gas from your primary regulator to the first secondary's 1/4" MFL inlet, then use a MFL-to-MFL jumper to feed the next regulator in line. Note: Because this uses flare (MFL) connections, always use 1/4" Flare Washers between the metal-on-metal connections to ensure a 100% gas-tight seal and prevent expensive CO2 leaks.
