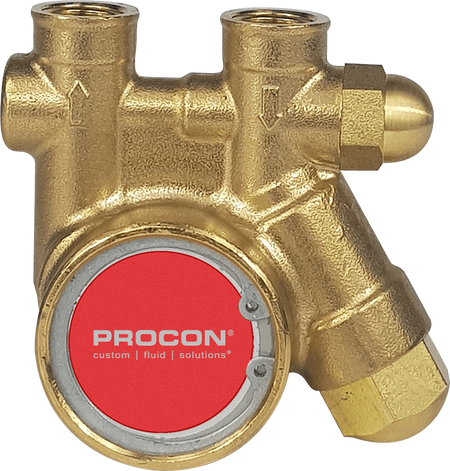

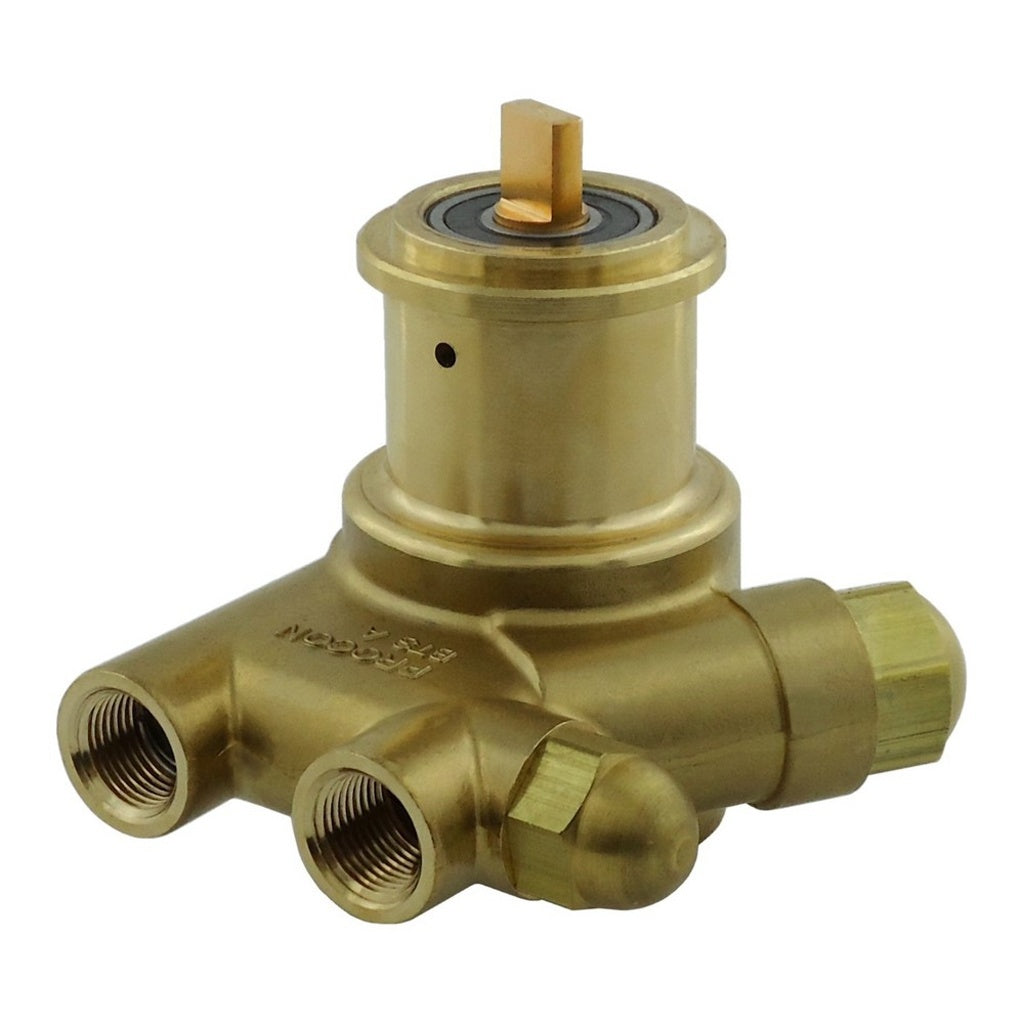

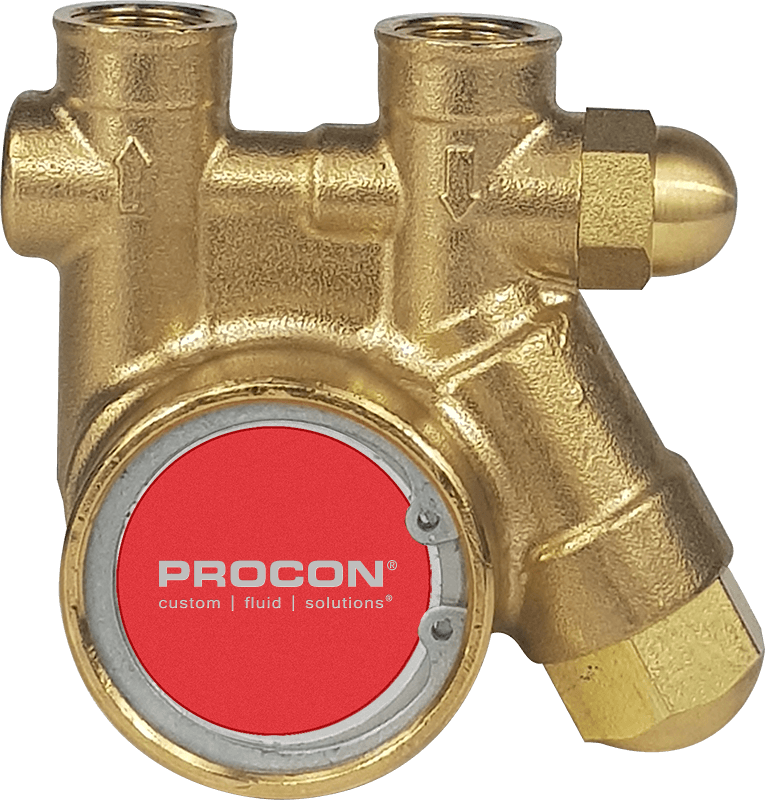

Procon® 101B070R11BC Series 1 Rotary Vane Fluid Pump w/ Strainer - 70GPH (210LPH), Fluorocarbon, Standard-Non External Adjust

More from: Procon
In stock
Item: 09H02186
(0)
Regular price $94.43
Found a lower price? Request Price Match

Quick Overview

  • Consistent flow rate across variable pressures
  • Self-priming (water) and maintenance-free with low vibration and pulsation characteristics
  • Internal Relief Valve Standard-Non External adjust configuration
  • Integral Strainer for debris removal from pumping fluid
  • Brass Housing Material
  • NPT 3/8" Inlet and Outlet Connections
  • Constructed with Fluorocarbon Elastomers
  • Flowrate of 70GPH (210LPH)*
  • Fluid Operating Temperature of between -4°F to 160°F (-20°C to 71°C)
  • Maximum Mechanical Horsepower required 0.37hp (276W)¹

* GPH rating at 1725RPM/60Hz and LPH rating at 1450RPM/50Hz
¹ Mechanical Horsepower requirement based on pump tested with water at room temperature and maximum operating pressure 250psi (17.5BAR)

Product Overview


The Procon® 101B070R11BC Series 1 pump with a strainer offers a flow rate of 70 GPH, designed to provide reliable and clean fluid transfer. Its robust construction and integrated strainer make it an ideal choice for applications where fluid purity is paramount.

Technical Information Details
Material Brass
Port Hole NPT 3/8"
Integrated Strainer Yes
Mounting Type Clamp-On
Drive Configuration Slotted With Bronze Coupling 1143
Flowrate (GPH) 70GPH
Flowrate (LPH) 210LPH
Elastomer Fluorocarbon
Seal Type Non Balances Ceramic/Carbon
Rotation Clockwise
Internal Component Material Carbon
Valve Type Solid- Ultem
ValveConfiguration Standard-Non External adjust
Product Weight 2.4lb (1.09Kg)



Operating Range Details
Maximum Mechanical Power Requirement 0.37hp (276W)
Maximum Operating Pressure 60psi
Relief Valve Set Pressure Range 60 to 99psi (4 to 7 BAR)
Max Static Pressure PSI 100psi
Min Operation Fluid Temperature -4°F
Max Operation Fluid Temperature 160°F
Max Fluid Viscosity 100cP
Max Sound Level 60dB(a)
Max Discharge Pressure 250psi
Min Speed 1000RPM
Max Speed 2400RPM
Dry Suction Lift 3.3ft
Wet Suction Lift 6.6ft
Fluid Acidity 6pH
Maximum Total Dissolved Solids (TDS) 5000ppm
