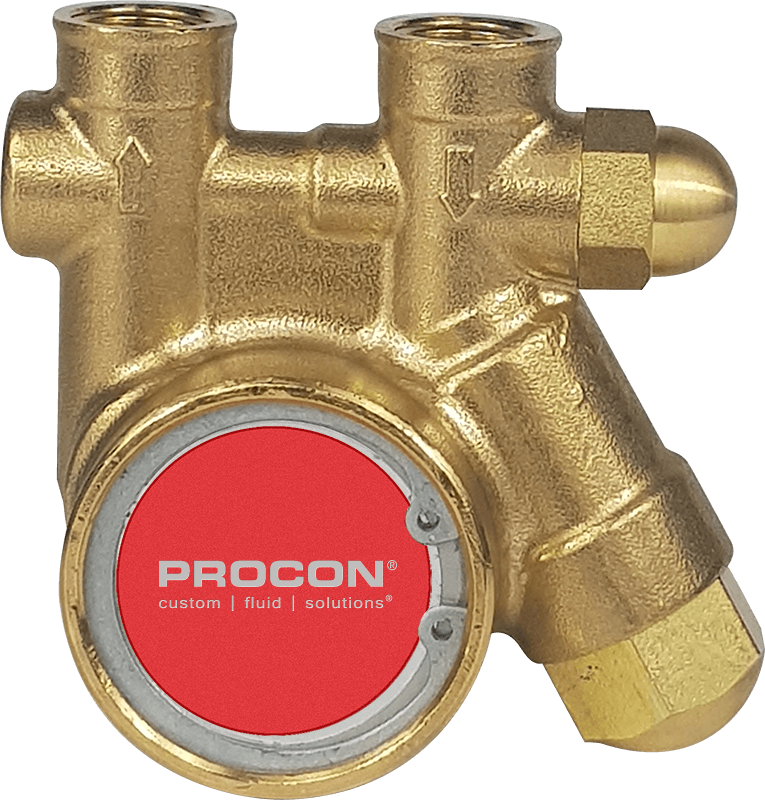

Procon® 101A050F11AA Series 1 Rotary Vane Fluid Pump w/ Strainer - 50GPH (150LPH), EPDM/Nitrile, Standard-Non External Adjust

More from: Procon
In stock
Item: 09H02124
(0)
Regular price $94.43
Found a lower price? Request Price Match

Quick Overview

  • Consistent flow rate across variable pressures
  • Self-priming (water) and maintenance-free with low vibration and pulsation characteristics
  • Internal Relief Valve Standard-Non External adjust configuration
  • Integral Strainer for debris removal from pumping fluid
  • Brass Housing Material
  • NPT 3/8" Inlet and Outlet Connections
  • Constructed with EPDM/Nitrile Elastomers
  • Flowrate of 50GPH (150LPH)*
  • Fluid Operating Temperature of between -4°F to 160°F (-20°C to 71°C)
  • Maximum Mechanical Horsepower required 0.33hp (246W)¹

Product Overview


Designed for reliability, the Series 1 Procon® 101A050F11AA pump comes equipped with a strainer, ensuring clean fluid transfer with a flow rate of 50 GPH. This feature makes it perfect for beverage dispensing systems, protecting against impurities and maintaining quality.

Technical Information Details
Material Brass
Port Hole NPT 3/8"
Integrated Strainer Yes
Mounting Type Clamp-On
Drive Configuration Double Flat
Flowrate (GPH) 50GPH
Flowrate (LPH) 150LPH
Elastomer EPDM/Nitrile
Seal Type Non Balances Ceramic/Carbon
Rotation Clockwise
Internal Component Material Carbon
Valve Type Bypass- Ultem
Valve Configuration Standard-Non External adjust
Product Weight 2.4lb (1.09Kg)


Operating Range Specification
Maximum Mechanical Power Requirement 0.33hp (246W)
Maximum Operating Pressure 150psi
Relief Valve Set Pressure Range 151 to 250psi (10 to 17.5 BAR)
Max Static Pressure PSI 100psi
Min Operation Fluid Temperature -4°F
Max Operation Fluid Temperature 160°F
Max Fluid Viscosity 100cP
Max Sound Level 60dB(a)
Max Discharge Pressure 250psi
Min Speed 1000RPM
Max Speed 2400RPM
Dry Suction Lift 3.3ft
Wet Suction Lift 6.6ft
Fluid Acidity 6pH
Maximum Total Dissolved Solids (TDS) 5000ppm
