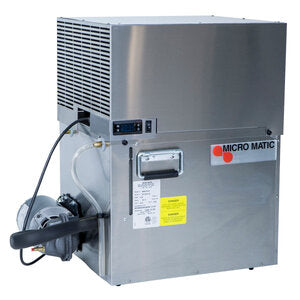

Micro Matic MMPP4301 Pro-Line™ Glycol Draft Beer System Chiller Power Pack - 2,300 BTU - 1/3 HP - 1 Pump - Air-Cooled
Regular price
$2610.57
GET PRO PRICING
Get lower prices, 30-Day Terms & 3% Back.
Create a Free HowdyPro account
Quick Overview
Specially designed to accommodate long draw beer systems, this Micro Matic Pro-Line™ Power Pack features: 2,300 BTU, 1/3 HP air-cooled compressor, 11.5 gallon glycol bath, and a single pump for glycol recirculation.Product Description
⌄The Micro Matic MMPP4301 is a commercial-grade, air-cooled draft beer system power pack engineered for reliable performance in bars, restaurants, and brewpubs. Featuring a 1/3 HP vane circulating pump, an 11.5-gallon glycol bath with exterior sight glass, and a digital thermostat, this unit ensures precise temperature regulation for mid-volume beverage service environments.
Top Features
- Precise Cooling: Digital thermostat provides accurate temperature control
- Powerful Circulation: 1/3 HP motor-driven pump with 80 GPH flow rate
- Compact Design: 30"W x 18"D footprint fits in tight commercial spaces
- Durability: Stainless steel glycol bath resists corrosion and wear
- Ease of Maintenance: Exterior sight glass and accessible components
- Self-Contained Refrigeration: Uses R134a refrigerant with 2,300 BTU capacity
Technical Specifications
| Name | Value |
|---|---|
| BTU Capacity | 2,300 BTU |
| Configuration | Self-Contained |
| Compressor Cooling | Air Cooled |
| Compressor | 1/3 HP |
| Volts | 115V |
| Plug Type | NEMA 5-15P |
| Bath Capacity | 11.5 Gallons |
| Pump Type | Vane with 1/3 HP Motor |
| No. Of Pumps | 1 |
| Height | 27-3/4" |
| Width | 18" |
| Length | 30" |
| Weight | 120 lbs |
| Approval | ETL Listed |
| Pump Capacity | 80 GPH |
| Cabinet Cover | Included Stainless Steel |
| Amps (Running) | 12.1 |
| Refrigerant | R513a |
| Refrigerant Charge | 12 oz. |
| Refrigerant Running Pressure | 18 (Low) - 140 (High) |
What Is a Commercial Draft Beer Power Pack?
A draft beer power pack is a self-contained refrigeration and circulation unit that maintains optimal beer temperatures from keg to tap. The MMPP4301 is designed for use in medium-volume hospitality venues, providing consistent cooling, efficient flow, and reduced maintenance requirements. These systems are typically installed under bars or within equipment stations to power glycol draft beer lines in high-traffic foodservice settings.
Ideal Applications
- Mid-volume bars, brewpubs, and taprooms
- Restaurants and casual dining environments
- Compact commercial kitchen and bar setups
- Hospitality venues requiring reliable beer temperature control
Why Choose Micro Matic MMPP4301?
- Compact footprint for easy installation in tight spaces
- Digital thermostat delivers consistent temperature management
- Air-cooled system eliminates need for external water lines
- Robust stainless steel construction withstands commercial use
- Self-contained unit minimizes service disruptions and simplifies setup
