4 Head Counter Pressure Bottle Filler - Gen 2

More from: Medusa
Only 5 left
Item: KEG820
(0)
Regular price $2143.91
Regular price Save 6% $2,279.99 Sale price $2143.91
Sales Support Image

Need Sales Support?

Request a call

Quick Overview

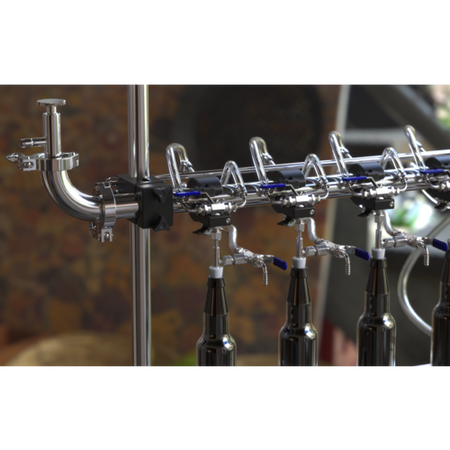

Introducing the newly redesigned and updated G2 Medusa Multihead Counter Pressure Bottle Filler!

  • Four separate filling heads.
  • 3-way stainless steel valves on both inlet & back pressure sides of all fill heads.
  • Improved Pressure Relief Valve has higher accuracy over fill rates, and directs foam into the drip tray rather than onto your bottles.
  • Removable Drip Tray is fully draining with a barbed outlet for constant filling & easy cleaning.
  • Robust stainless steel frame stands on its own or can be easily bolted or clamped to a work surface
  • Stainless steel fill reservoir keeps fill rates equal & reduces foaming
  • Inverted fill tubes & reservoir purge means cleaner filling with even less possibility for foam.
  • Dual TC Fill reservoir is easier to clean & allows for upgrades down the road (as they become available).
  • Easily adaptable to fill from nearly any pressurized vessel.
  • Height is adjustable from shorty bottles to growlers.
  • Easy disassembly for cleaning, storage & maintenance,
  • Sanitary 1.5" TC inlet for beer, 3/8" tube connection for CO2.
  • Backpressure Bar allows for a single adjustment point for fill rates. No more adjusting PRVs on each fill head.
  • Individual Purge Valves on each head allow nearly complete removal of all oxygen in a bottle which keeps your beer fresh!

Product Overview

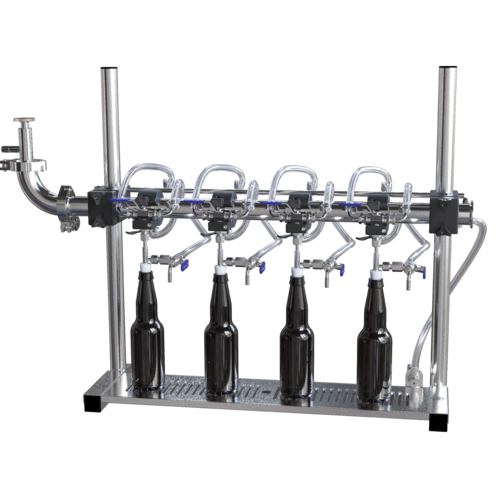

Introducing the newly redesigned and updated G2 Medusa Multihead Counter Pressure Bottle Filler!  This unique unit was designed in-house by the MB Pro Engineering team and purpose built for the smaller craft brewer or dedicated homebrewer.  The Medusa will speed up bottling day while also reducing exposure to oxygen during the bottling process, resulting in higher quality beer with a longer shelf life.  We've taken all of the great features of the first model—high quality components, 304 stainless steel construction, easy-to-use functionality—and improved on the design to bring you a top-of-the-line Bottle Filler.

The Medusa Multihead Counter Pressure Bottle Filler can be adjusted to cater all bottling needs.  All four heads can be operated individually, and the height, back pressure, and fill speeds can be adjusted for various bottle styles.  We've done our best to pack this unit with features that will handle all jobs, while keeping costs as low as possible.

Features:

  • Four separate filling heads.
  • 3-way stainless steel valves on both inlet & back pressure sides of all fill heads.
  • Improved Pressure Relief Valve has higher accuracy over fill rates, and directs foam into the drip tray rather than onto your bottles.
  • Removable Drip Tray is fully draining with a barbed outlet for constant filling & easy cleaning.
  • Robust stainless steel frame stands on its own or can be easily bolted or clamped to a work surface
  • Stainless steel fill reservoir keeps fill rates equal & reduces foaming
  • Inverted fill tubes & reservoir purge means cleaner filling with even less possibility for foam.
  • Dual TC Fill reservoir is easier to clean & allows for upgrades down the road (as they become available).
  • Easily adaptable to fill from nearly any pressurized vessel.
  • Height is adjustable from shorty bottles to growlers.
  • Easy disassembly for cleaning, storage & maintenance,
  • Sanitary 1.5" TC inlet for beer, 3/8" tube connection for CO2.
  • Backpressure Bar allows for a single adjustment point for fill rates. No more adjusting PRVs on each fill head.
  • Individual Purge Valves on each head allow nearly complete removal of all oxygen in a bottle which keeps your beer fresh!

Dimensions:

  • Footprint: 26-3/8" L x 8" W
  • Drip Tray: 23-1/2" L x 5-1/2" W
  • Overall Height: 25-3/8"
