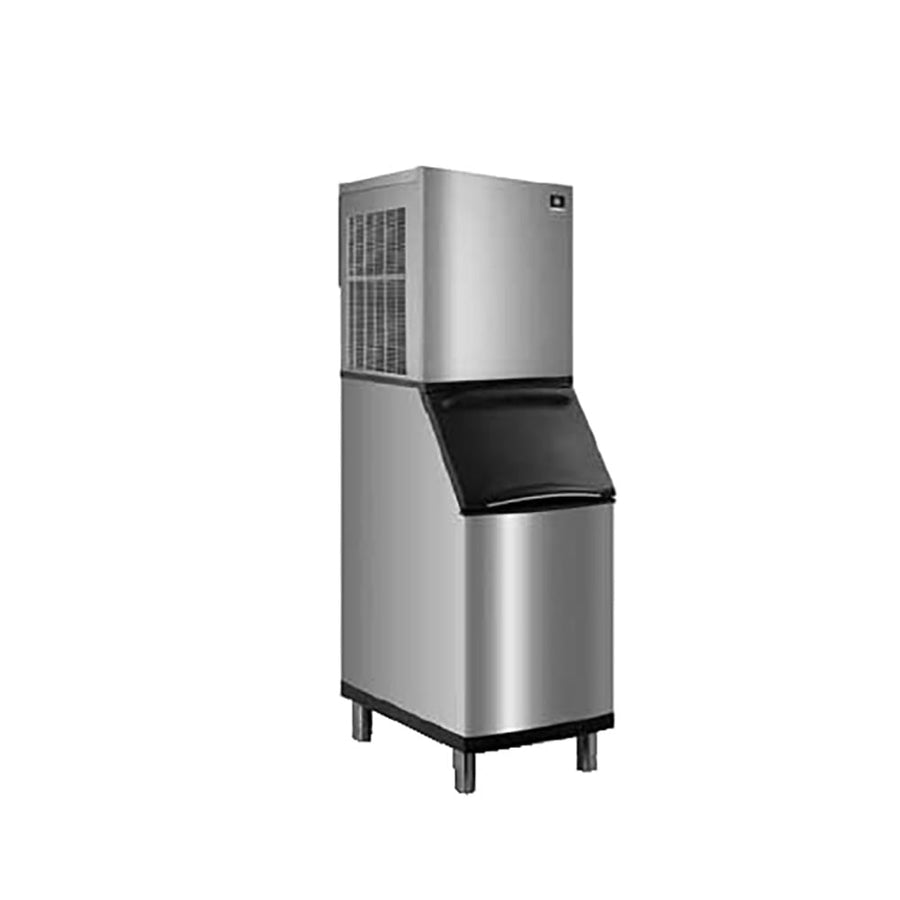

Manitowoc RNP0320A/D420 Commercial Ice Machine with Bin — 308 lb/Day Nugget, Air Cooled, 383 lb Storage, 115V
Manitowoc RNP0320A/D420 Commercial Ice Machine with Bin — 308 lb/Day Nugget, Air Cooled, 383 lb Storage, 115V
- Up to 308 lb/24 hr nugget production
- 383 lb insulated bin storage
- Air Cooled condensing
- Nugget ice format
- 22 in W x 34 in D x 76 in H footprint
At a glance
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
Overview
The Manitowoc RNP0320A/D420 produces up to 308 lb of nugget per 24 hours and stores it in a 383 lb insulated bin. It runs on air cooled condensing with R290 (Hydrocarbon) refrigerant on 115V power.
The nugget format gives you soft, chewable nugget ice that's popular for healthcare, smoothies, and beverage service.
At a glance: 22 in W, 34 in D, 76 in H, 115V/60Hz/1Ph, R290 (Hydrocarbon) refrigerant.
Key features
- Up to 308 lb/24 hr nugget production
- 383 lb insulated bin storage
- Air Cooled condensing
- Nugget ice format
- 22 in W x 34 in D x 76 in H footprint
- 115V, 60Hz, 1Ph
- R290 (Hydrocarbon) refrigerant
- Certified: ENERGY STAR, NSF, CE, AHRI, ETL
- Backed by manufacturer warranty (see details)
Full specifications
| 24 hr ice production (nominal) | 308 lb |
| Bin storage capacity | 383 lb |
| Ice type / cube size | Nugget |
| Compressor | Air Cooled |
| Refrigerant | R290 (Hydrocarbon) |
| Dimensions (W × D × H) | 22.0″ × 34.0″ × 76.0″ |
| Shipping weight | 282.0 lb |
| Electrical | 115 V · 60 Hz · 1 Ph |
| Water inlet | 0.38″ |
Documents & downloads
Certifications
Warranty
Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor
Authorized service & installation
This is commercial equipment — warranty coverage requires installation and service by a Manitowoc-authorized provider. Use Manitowoc’s official locator to find authorized installation, startup, and warranty service in your area.
Find authorized service →Get your unadvertised price
Manitowoc doesn’t allow us to publish our lowest price online. Request an unadvertised deal and we’ll send you the best price we’re allowed to quote — privately, with no obligation.
