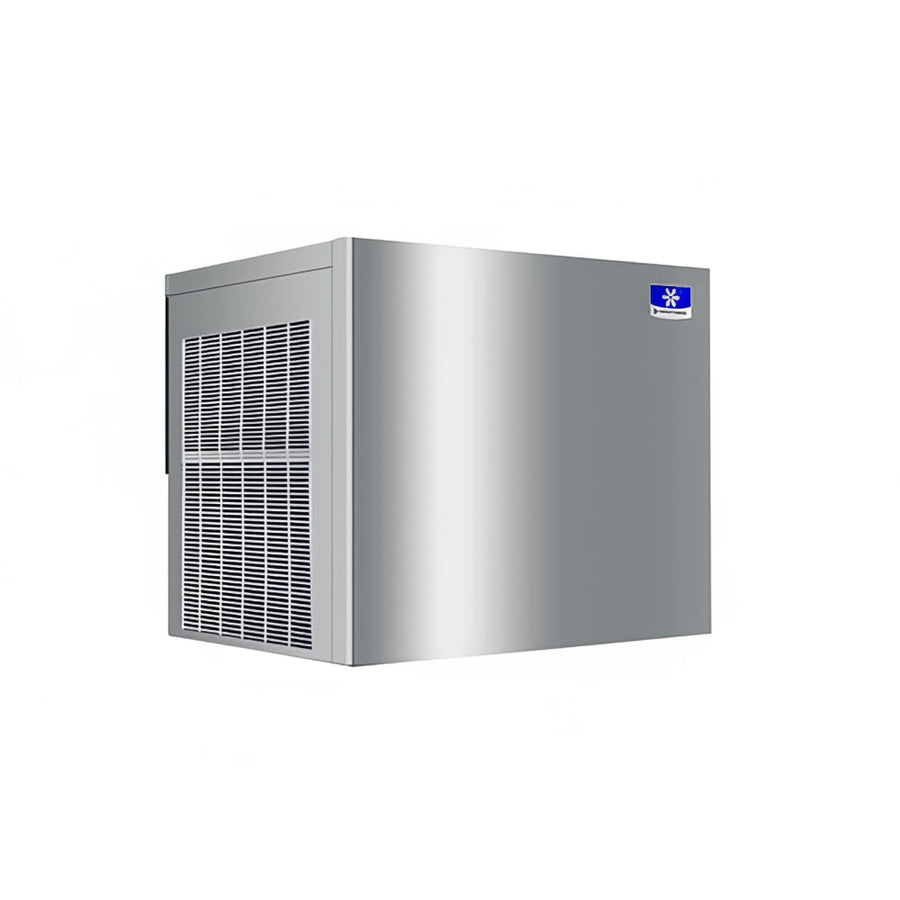

Manitowoc RNF1100W Commercial Ice Machine Head — 1158 lb/Day Nugget, Water Cooled, 208/230V
Manitowoc RNF1100W Commercial Ice Machine Head — 1158 lb/Day Nugget, Water Cooled, 208/230V
- Up to 1158 lb/24 hr nugget production
- Water Cooled condensing
- Nugget ice format
- 30 in W x 23.63 in D x 27.38 in H footprint
- 208/230V, 1Ph
At a glance
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
Overview
The Manitowoc RNF1100W produces up to 1158 lb of nugget per 24 hours. It runs on water cooled condensing with R404A refrigerant on 208/230V power.
The nugget format gives you soft, chewable nugget ice that's popular for healthcare, smoothies, and beverage service.
At a glance: 30 in W, 23.63 in D, 27.38 in H, 208/230V/Hz/1Ph, R404A refrigerant.
Key features
- Up to 1158 lb/24 hr nugget production
- Water Cooled condensing
- Nugget ice format
- 30 in W x 23.63 in D x 27.38 in H footprint
- 208/230V, 1Ph
- R404A refrigerant
- Certified: NSF, cULus
- Backed by manufacturer warranty (see details)
Full specifications
| 24 hr ice production (nominal) | 1158 lb |
| Ice type / cube size | Nugget |
| Compressor | Water Cooled |
| Refrigerant | R404A |
| Dimensions (W × D × H) | 30.0″ × 23.63″ × 27.38″ |
| Shipping weight | 275.0 lb |
| Electrical | 208/230 V · Hz · 1 Ph |
| Water inlet | 0.38″ |
Documents & downloads
Certifications
Warranty
3-year Parts & Labor 5-year Compressor Parts; 3-year Compressor Labor
Authorized service & installation
This is commercial equipment — warranty coverage requires installation and service by a Manitowoc-authorized provider. Use Manitowoc’s official locator to find authorized installation, startup, and warranty service in your area.
