Little Giant Condensate Pump 3/8" 115V 1/5 HP 45' Lift 19.5 PSI 553240
Little Giant Condensate Pump 3/8" 115V 1/5 HP 45' Lift 19.5 PSI 553240
- 3/8" condensate pump
- 115V operation
- CSA Listed
- Genuine Little Giant part 553240
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.

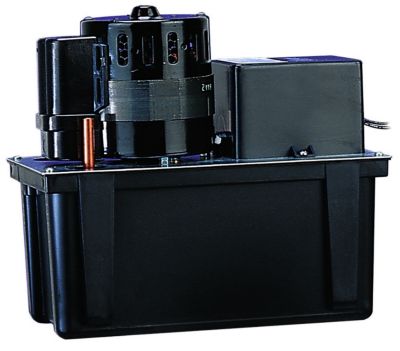

The Little Giant 553240 is a 3/8" condensate pump for condensate management and HVAC plumbing. Little Giant - 553240 - Condensate Pump VCL45ULS, 115V 1/5 Hp Motor, Condensate Removal Pump
Specifications
| Connection Size | 3/8" |
| Voltage | 115 VAC |
| Amps | 3.5 |
| Watts | 185 |
| Motor HP | 1/5 |
| Maximum Pressure (PSI) | 19.5 |
| Shut Off (Ft.) | 45' |
| Gallons Per Hour Of Water | 38@15', 415@9', 440@5', 445@3', 450@1' |
| Maximum Temperature | 120°F (48.89°C) |
| Approvals | CSA Listed |
| Country of Origin | MEX |
| Check Valve | No |
| Cord Length | 6' |
| Cycle/Hertz | 60 Hz |
| Float Material | Solid Polymer |
| Safety Switch | Yes |
Little Giant publishes the figures in the table above for this part number. Nothing here is inferred — if a value you need is not listed, it was not published by the manufacturer, and we would rather tell you that than guess.
For the installer: confirm nominal size and connection type against the existing run before ordering. Sizes in this category are quoted by the convention the manufacturer uses for the product family, which is not always the same as nominal pipe size.
Documents & Downloads
Warranty
Howdy Brewer Guarantee — Every product we ship is genuine Little Giant. If it arrives damaged or defective, contact us with your order number and we'll make it right with the manufacturer.
