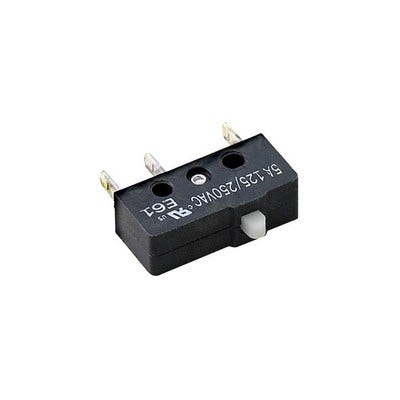

Lancer Switch Cherry DB1 - 26-0265/02

Ask a question Item # 26-0265/02 In stock

Lancer Switch Cherry DB1 - 26-0265/02

Ask a question Item # 26-0265/02
In stock
$104
30-day returns · Easy with prepaid labels provided
Get it by 3–5 business days
Free shipping · Change ZIP
  • Official Lancer OEM replacement.
  • Restores crisp electrical activation.
  • Eliminates non-responsive levers.
  • SKU: 26-0265/02

View full details →

Get PRO Pricing
3% back · Net 30 terms & More
Apply for HowdyPro →
?
Need a hand?
Bilingual support from real techs · Mon–Fri 8:30–5 CT
(888) 964-4239 Chat with a tech

Request a quote

Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.

Request a quote

The Lancer Switch Cherry DB1 is the precision micro-contact component responsible for triggering the dispensing cycle. When the mechanical lever is pulled, it depresses the plunger on this switch, sending a low-voltage DC signal to the main control board to actuate the dispensing solenoid.

Symptoms of Failure: If the station has power but no product flows when the lever is pressed, this switch is likely failed. You may also experience 'intermittent dispensing' where the customer has to press the lever multiple times or use extreme force to get a response.

Technician’s Note: Syrup buildup is the #1 cause of switch failure. Sticky syrup residue on the lever pivot puts lateral pressure on the switch plunger, causing it to snap. Always clean the pivot area with warm water before installing the new switch.Technical Specifications:
  • Manufacturer: Lancer
  • Type: Micro-Switch (Cherry DB1)
  • Application: Valve Actuation Trigger
  • Compatibility: LEV and GMV Valve Series

Searches related to this

Lancer dispensing partsLancer partsLancer replacement partsLancer accessoriesCommercial Beverage SystemsDispensing PartsLancer Replacement PartsLancer Replacement Parts & Components

Where this part is used

Found on these diagrams

All diagrams →

This part is a callout on the exploded diagrams below. Open one here — the matching pin opens highlighted so you can see exactly where it fits.

Lancer IBD22 IBD30 Faucet Plate and Ice Chute Sub-Assembly Post-Mix Parts Diagram

This part is highlighted on the diagram

Lancer IBD22 IBD30 Faucet Plate and Ice Chute Sub-Assembly Post-Mix Parts Diagram schematic

Click a numbered pin to view part details
