Lancer Panel Assembly MVU Logic Control Board - 52-3176-SP
$9309
Lancer Panel Assembly MVU Logic Control Board - 52-3176-SP
Lancer Panel Assembly MVU Logic Control Board - 52-3176-SP
In stock
$9309
30-day returns · Easy with prepaid labels provided
Special order ships in 1–2 weeks
Contact us for in stock options.
- Primary logic controller for MVU units.
- Fixes portion-control timing issues.
- OEM replacement for touch-panel failure.
- Precision high-duty cycle electronics.
?
Need a hand?
Bilingual support from real techs · Mon–Fri 8:30–5 CT
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.

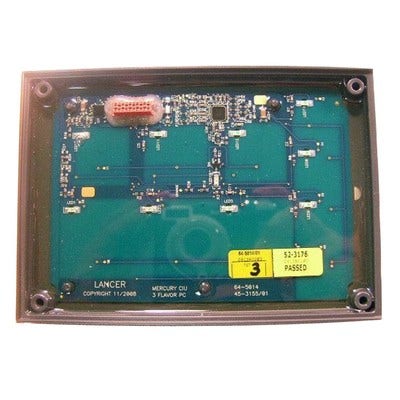

The Lancer Panel Assembly Printed Circuit Board MVU is the primary logic controller for the Multi-Valve Unit. It manages the communication between the user interface and the dispensing solenoids, handling the precise timing required for small, medium, and large portion-controlled pours.
Symptoms of Failure: If the dispenser is 'forgetting' portion sizes, failing to register button presses, or if the display shows garbled characters, the logic board is likely corrupted. A total lack of power to the valves (while the compressor still runs) is also a strong indicator of a blown output relay on this PCB.
Technician’s Note: This board is sensitive to Electrostatic Discharge (ESD). Always use a grounded wrist strap when removing from the anti-static bag. Check the 24V transformer output before installing to ensure a voltage spike wasn't the cause of the original board's failure.
Technical Specifications:- Part Type: Main Logic Control PCB
- Application: MVU Series Dispensers
- Voltage: 24V Input
- Functions: Portion Control, Agitator Timing, Logic Reporting
