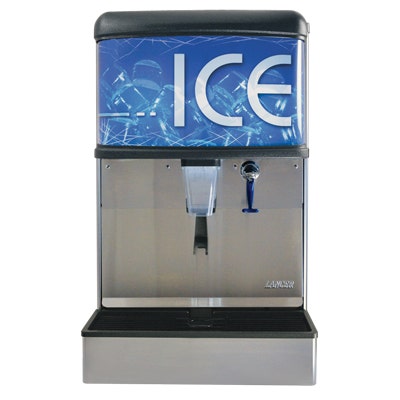

Ice Cube + Water Dispenser - Lancer ID22H 180 Lb Commercial Beverage
Ice Cube + Water Dispenser - Lancer ID22H 180 Lb Commercial Beverage
- Stores 180 lb of cube ice in a 22 in wide countertop cabinet.
- Push and lever ice dispensing, with Lancer's water valve option for water.
- 22 in wide, 30.5 in deep, 35.375 in high; 320 lb with ice.
- Runs on 115 V, 60 Hz and needs a drain within 5 ft.
- Listed by Lancer as CE, NSF and ETL certified.
- SKU / MPN: 85-4420H-02
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
Give guests ice and water from one 22 inch countertop station. The bin stores 180 lb of cube ice and can be filled by hand or fed by an ice machine mounted on top.
Lancer builds this dispenser on its ID 4400 platform, which it describes as a counter top self-service ice dispenser. The ID22H is the cube ice unit, and this listing is the ice and water configuration: Lancer offers a water valve as an option on the ID 4400. An automatic agitation system stirs the ice on a timer.
Features
- 180 lb of ice storage in a 22 in wide cabinet; Lancer's manual lists 150 lb of that as dispensable.
- Push and lever ice dispensing.
- Hex-Drive ice agitation and dispense drive system. Automatic agitation ships set to 2 seconds on every 60 minutes.
- Low-ice indicator lights up when the bin needs ice.
- Fully insulated storage bin and drip tray to control condensation.
- Stainless steel construction, exterior and interior.
- High-capacity drip tray to catch ice over-fill.
- Illuminated, interchangeable front graphics.
Specifications
| Lancer platform | ID 4400, 22 in |
|---|---|
| Ice storage | 180 lb |
| Ice type | Cube |
| Width | 22 in (559 mm) |
| Depth | 30.5 in (775 mm) |
| Height | 35.375 in (899 mm) |
| Space required | 22.5 in wide x 31 in deep |
| Weight with ice | 320 lb (145 kg) |
| Electrical | 115 V, 60 Hz |
| Water inlet | 3/8 in barb |
| Water supply | 25 PSI minimum; regulate above 50 PSI |
| Ambient temperature | 40°F to 105°F (4°C to 41°C) |
| Certifications | CE, NSF, ETL certified to UL Std 763 and CAN/CSA Std 22.2 No. 195 |
Compatibility
Use cube ice. Lancer states the dispenser operates properly only with cube ice and does not recommend shaved or flake ice. Set the unit on a level counter, within 5 ft of a drain and near a grounded outlet on its own circuit. NSF listed units must be sealed to the counter with an FDA approved sealant or set on 4 in legs. If no ice machine is fitted, leave at least 16 in above the unit for filling from a bucket. A top-mounted ice machine needs an adapter plate and a bin thermostat. The water line must be at least 3/8 in with 25 PSI minimum; pressure above 50 PSI must be reduced with a regulator. Clean and sanitize the ice bin at start-up and monthly.
More from Lancer
Shop all Lancer →Recently viewed
Searches related to this
Frequently asked questions
What kind of ice can I use in the ID22H?
Cube ice. Lancer's manual says the dispenser will only operate properly with cube ice and does not recommend shaved or flake ice; nugget or pellet ice needs Lancer's separate N version.
Can I mount an ice machine on top instead of filling it by hand?
Yes. Lancer requires an adapter plate and a bin thermostat to control the ice level, set at least 2 in below the top edge of the dispenser. Without an ice machine, leave at least 16 in above the unit to fill it from a bucket.
What do the counter and location need?
A level, well ventilated spot within 5 ft of a drain, near a grounded outlet on a separate circuit, on a counter that can support the dispenser, its ice and any ice machine mounted on top. Lancer lists 320 lb for the dispenser with ice and says the total with an ice machine could exceed 800 lb. NSF listed units must be sealed to the counter or set on 4 in legs.
What water supply does the water valve need?
A water line of at least 3/8 in with a minimum of 25 PSI, connected to the 3/8 in barb plain water inlet at the front of the unit. Pressure above 50 PSI must be reduced to 50 PSI with a regulator.
How often does the dispenser need cleaning?
Lancer calls for ice bin cleaning and sanitizing at start-up and monthly, and recommends cleaning the ice chute monthly. Exterior surfaces and the drip tray are cleaned daily with a mild detergent solution.
