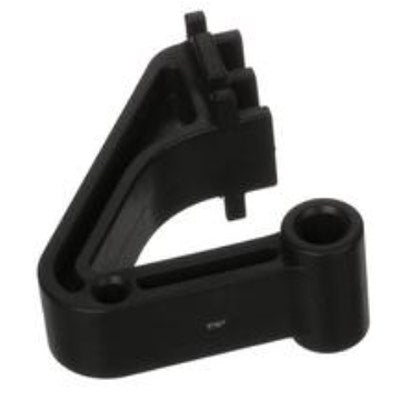

Lancer Arm Hinge Shroud - 05-1681
$591
Lancer Arm Hinge Shroud - 05-1681
Special order ships in 1–2 weeks
Contact us for in stock options.
- Ensures secure hinge alignment.
- Prevents mechanical binding.
- Durable reinforced construction.
- SKU: 05-1681
?
Need a hand?
Bilingual support from real techs · Mon–Fri 8:30–5 CT
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
The Lancer Arm Hinge Shroud is the mechanical pivot component designed to support the bin lid or merchandiser panel and ensure smooth opening/closing cycles. It serves as both a structural anchor and a protective cover to keep syrup splash away from the hinge pivot pin.
Problem Solved: Restores structural alignment and prevents component sagging or displacement in high-vibration self-serve areas. Fixes 'floppy' covers that allow warm air to enter the chilled cabinet.
Symptoms of Failure: Squeaking noises during operation, misaligned bin lids that allow warm air ingress, or graphic panels that feel loose or difficult to open.
Technician’s Note: Apply a small dab of food-grade grease to the pivot pin before snapping the shroud into place. Friction is the primary cause of pivot wear and eventual cracking in plastic hinges. Ensure the mounting screw is hand-tightened only.
Technical Specifications:- Manufacturer: Lancer
- Application: Hinge Support / Sanitary Cover
- Material: High-Impact Reinforced Polymer
- Compatibility: Standard Lancer Dispenser Frames
