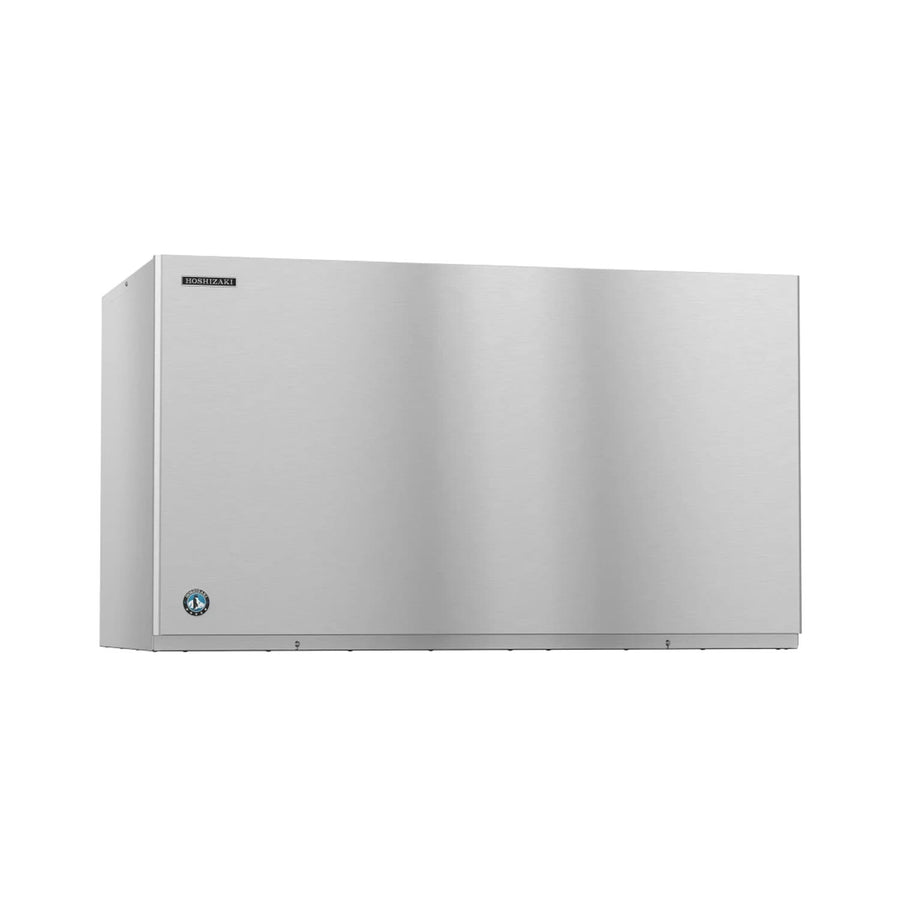

Hoshizaki KM-1601SWJ 1660 lb/Day Crescent Cube Commercial Ice Machine & Ice Maker, Water Cooled, Modular Head, 208/230V
Hoshizaki KM-1601SWJ 1660 lb/Day Crescent Cube Commercial Ice Machine & Ice Maker, Water Cooled, Modular Head, 208/230V
- Produces up to 1660 lb of crescent cube ice per day
- Modular head — pairs with a separate ice storage bin
- Water-cooled condenser
- R404A refrigerant
- 48"W x 27.38"D x 27.38"H exterior
At a glance
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
Overview
The Hoshizaki KM-1601SWJ is a modular commercial ice machine head that produces up to 1660 pounds of crescent cube ice per day. As a head unit it stacks onto a matching Hoshizaki storage bin (sold separately), letting you size production and storage independently for your space and volume. Hoshizaki's signature crescent cube is dense and slow-melting with a high ice-to-water ratio, so it chills drinks fast, displaces more volume in the glass, and won't water down the pour.
Engineered for continuous duty, it is built around a corrosion-resistant stainless steel evaporator and a water-cooled refrigeration system running on R404A refrigerant. Hoshizaki's reputation for reliability and long service life makes it a specify-once head for operators who run ice around the clock.
Key Features
- Makes crescent cube ice for soda, mixed beverages, bagged ice, and dispensing
- 1,650-1,660 lbs. ice is produced in a 24-hr. period
- Heavy-duty, corrosion-resistant exterior is made of stainless steel
- System uses R-404A refrigerant
- Stainless steel evaporator resists corrosion
- Refrigeration components are cooled with water to help prevent overheating
- Unit is easy to clean and service thanks to the removable panels
- Bin is sold separately
- 21,300 BTU
- Ice Dimensions: 1 1/8 in. W x 1/2 in. D x 1 1/2 in. H
Installation & Utility Requirements
- 208-230 V/60 Hz/1 ph, 13.6 A
- Overall Dimensions: 48 1/4 in. W x 27 7/16 in. D x 27 in. H
Warranty
Backed by Hoshizaki's 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts warranty.
Key features
- Produces up to 1660 lb of crescent cube ice per day
- Modular head — pairs with a separate ice storage bin
- Water-cooled condenser
- R404A refrigerant
- 48"W x 27.38"D x 27.38"H exterior
Full specifications
| 24 hr ice production (nominal) | 1660 lb |
| Ice type / cube size | Crescent Cube |
| Compressor | Water Cooled |
| Refrigerant | R404A |
| Dimensions (W × D × H) | 48.0″ × 27.38″ × 27.38″ |
| Shipping weight | 360.0 lb |
| Electrical | 208/230 V · Hz · 1 Ph |
Documents & downloads
Warranty
3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts
About Hoshizaki
Founded in Japan in 1947, Hoshizaki engineered the country’s first fully automatic ice machine in 1965 and has spent the decades since becoming one of the most trusted names in commercial ice and refrigeration. In the U.S., Hoshizaki has designed and built equipment since 1981 — today across two Georgia manufacturing plants, 1,000+ employees, and 18 North American distribution centers standing behind every unit.
The reputation is built on engineering, not marketing: corrosion-resistant stainless steel evaporators, EverCheck™ onboard diagnostics, and H-Guard Plus antimicrobial protection — backed by ISO 9001 and ISO 14001 certification, repeated ENERGY STAR® Partner of the Year recognition, and some of the strongest warranties in the category. It’s why operators who run ice around the clock keep specifying Hoshizaki.
Shop the Hoshizaki lineup →Get your unadvertised price
Hoshizaki doesn’t allow us to publish our lowest price online. Request an unadvertised deal and we’ll send you the best price we’re allowed to quote — privately, with no obligation.
