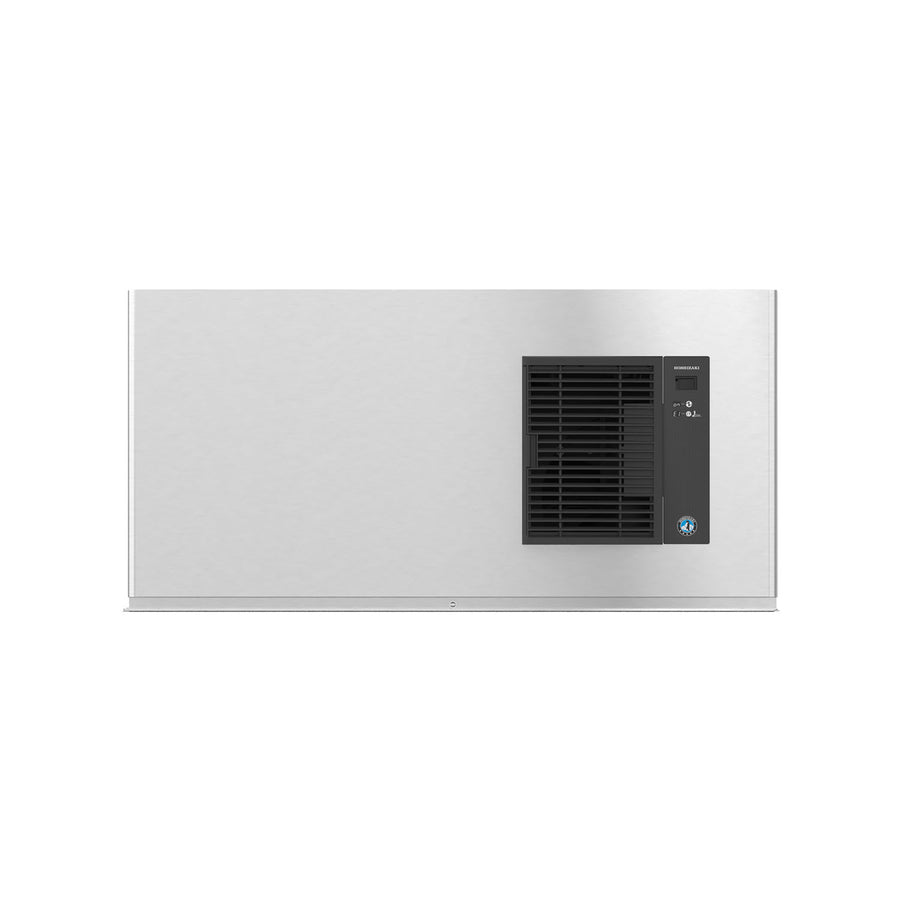

Hoshizaki IM-544SAK 453 lb/Day Full Cube Commercial Ice Machine & Ice Maker, Air Cooled, Modular Head, 115V
Hoshizaki IM-544SAK 453 lb/Day Full Cube Commercial Ice Machine & Ice Maker, Air Cooled, Modular Head, 115V
- Produces up to 453 lb of full cube ice per day
- Modular head — pairs with a separate ice storage bin
- Air-cooled condenser
- R290 (Hydrocarbon) refrigerant
- 44"W x 27.38"D x 21.75"H exterior
At a glance
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
Overview
The Hoshizaki IM-544SAK is a modular commercial ice machine head that produces up to 453 pounds of full cube ice per day. As a head unit it stacks onto a matching Hoshizaki storage bin (sold separately), letting you size production and storage independently for your space and volume. Its hard, clear full cube melts slowly and looks clean in the glass, a fit for upscale bars and cold beverage service.
Engineered for continuous duty, it is built around a corrosion-resistant stainless steel evaporator and an air-cooled refrigeration system running on R290 (Hydrocarbon) refrigerant. Hoshizaki's reputation for reliability and long service life makes it a specify-once head for operators who run ice around the clock.
Key Features
- Cube-style ice
- Cube dimensions: 1 in. W x 1 1/4 in. D x 1 in. H
- 453-lb. maximum daily ice production
- 414-lb. AHRI-certified daily ice production
- As many as 3 ice machine heads can be stacked
- Stainless steel finish
- EverCheck digital controls with LED display
- Removable air filters
- Detachable panels provide access to vital components
- Air cooled
Installation & Utility Requirements
- Ideal incoming water temperature: 45-90 degrees F
- Ideal incoming water pressure: 10-113 PSIG
- 44 in. W x 27 5/8 in. D x 21 3/4 in. H
- 11.5 A, 5.8 kW
- 115 V/60 Hz/1 ph
Warranty
Backed by Hoshizaki's 3-year Parts & Labor; 5-year Compressor & Condenser Parts warranty.
Key features
- Produces up to 453 lb of full cube ice per day
- Modular head — pairs with a separate ice storage bin
- Air-cooled condenser
- R290 (Hydrocarbon) refrigerant
- 44"W x 27.38"D x 21.75"H exterior
Full specifications
| 24 hr ice production (nominal) | 453 lb |
| Ice type / cube size | Full Cube |
| Compressor | Air Cooled |
| Refrigerant | R290 (Hydrocarbon) |
| Dimensions (W × D × H) | 44.0″ × 27.38″ × 21.75″ |
| Shipping weight | 196.0 lb |
| Electrical | 115 V · Hz · 1 Ph |
| Also known as | IM-500SAB |
Documents & downloads
Warranty
3-year Parts & Labor; 5-year Compressor & Condenser Parts
About Hoshizaki
Founded in Japan in 1947, Hoshizaki engineered the country’s first fully automatic ice machine in 1965 and has spent the decades since becoming one of the most trusted names in commercial ice and refrigeration. In the U.S., Hoshizaki has designed and built equipment since 1981 — today across two Georgia manufacturing plants, 1,000+ employees, and 18 North American distribution centers standing behind every unit.
The reputation is built on engineering, not marketing: corrosion-resistant stainless steel evaporators, EverCheck™ onboard diagnostics, and H-Guard Plus antimicrobial protection — backed by ISO 9001 and ISO 14001 certification, repeated ENERGY STAR® Partner of the Year recognition, and some of the strongest warranties in the category. It’s why operators who run ice around the clock keep specifying Hoshizaki.
