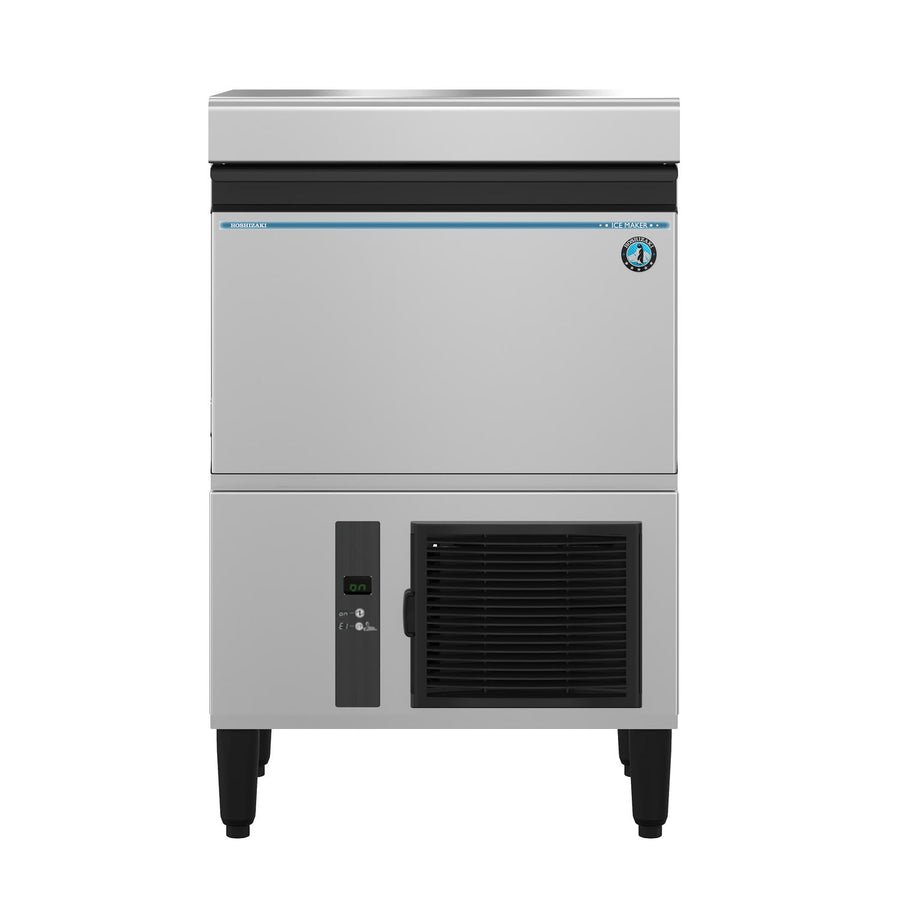

Hoshizaki IM-50BAA-Q 50 lb/Day Sphere Commercial Ice Machine & Ice Maker, Air Cooled, Undercounter, 36 lb Storage, 115V
Hoshizaki IM-50BAA-Q 50 lb/Day Sphere Commercial Ice Machine & Ice Maker, Air Cooled, Undercounter, 36 lb Storage, 115V
- Produces up to 50 lb of sphere ice per day
- 36 lb integrated storage bin
- Air-cooled condenser
- R134a refrigerant
- 24.75"W x 20.75"D x 39.5"H exterior
At a glance
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
Overview
The Hoshizaki IM-50BAA-Q is a self-contained commercial ice machine that produces up to 50 pounds of sphere ice per day and stores it in an integrated 36 lb bin, so a busy bar, restaurant, cafe, or healthcare kitchen stays stocked through peak service without a separate storage bin or remote condenser. Its slow-melting sphere ice is built for craft cocktails and premium beverage presentation.
Engineered for years of continuous foodservice duty, it is built around a corrosion-resistant stainless steel evaporator and an air-cooled refrigeration system running on R134a refrigerant, with a stainless exterior that wipes clean between cleanings. Hoshizaki's reputation for reliability and long service life makes it a specify-once machine for operators who can't afford ice downtime.
Key Features
- Produces 1.8-in.-diameter ice spheres
- 50-lb. maximum daily ice production
- 45-lb. AHRI certified daily ice production
- 36-lb. maximum ice storage capacity
- Durable stainless steel construction
- Simple-to-clean air filter
- Insulated with foam-injected polyurethane
- Ice scoop included
- 1,500-BTU heat transfer capacity
- R134a refrigerant
Installation & Utility Requirements
- Closed water circuit protects against contamination
- Potable water usage: 69 gal. per 24 hours
- Ideal incoming water temperature: 45-90 degrees F
- Ideal incoming water pressure: 7-113 PSIG
- Overall: 24 3/4 in. W x 20 3/4 in. D x 39 1/2 in. H
- 15.7 kW, 5 A
- 115 V/60 Hz/1 ph, 6.5-ft. cord with NEMA 5-15P plug
Warranty
Backed by Hoshizaki's 3-year Parts & Labor; 5-year Compressor & Condenser Parts warranty.
Key features
- Produces up to 50 lb of sphere ice per day
- 36 lb integrated storage bin
- Air-cooled condenser
- R134a refrigerant
- 24.75"W x 20.75"D x 39.5"H exterior
Full specifications
| 24 hr ice production (nominal) | 50 lb |
| Bin storage capacity | 36 lb |
| Ice type / cube size | Sphere |
| Compressor | Air Cooled |
| Refrigerant | R134a |
| Dimensions (W × D × H) | 24.75″ × 20.75″ × 39.5″ |
| Shipping weight | 150.0 lb |
| Electrical | 115 V · 60 Hz · 1 Ph |
Documents & downloads
Warranty
3-year Parts & Labor; 5-year Compressor & Condenser Parts
About Hoshizaki
Founded in Japan in 1947, Hoshizaki engineered the country’s first fully automatic ice machine in 1965 and has spent the decades since becoming one of the most trusted names in commercial ice and refrigeration. In the U.S., Hoshizaki has designed and built equipment since 1981 — today across two Georgia manufacturing plants, 1,000+ employees, and 18 North American distribution centers standing behind every unit.
The reputation is built on engineering, not marketing: corrosion-resistant stainless steel evaporators, EverCheck™ onboard diagnostics, and H-Guard Plus antimicrobial protection — backed by ISO 9001 and ISO 14001 certification, repeated ENERGY STAR® Partner of the Year recognition, and some of the strongest warranties in the category. It’s why operators who run ice around the clock keep specifying Hoshizaki.
