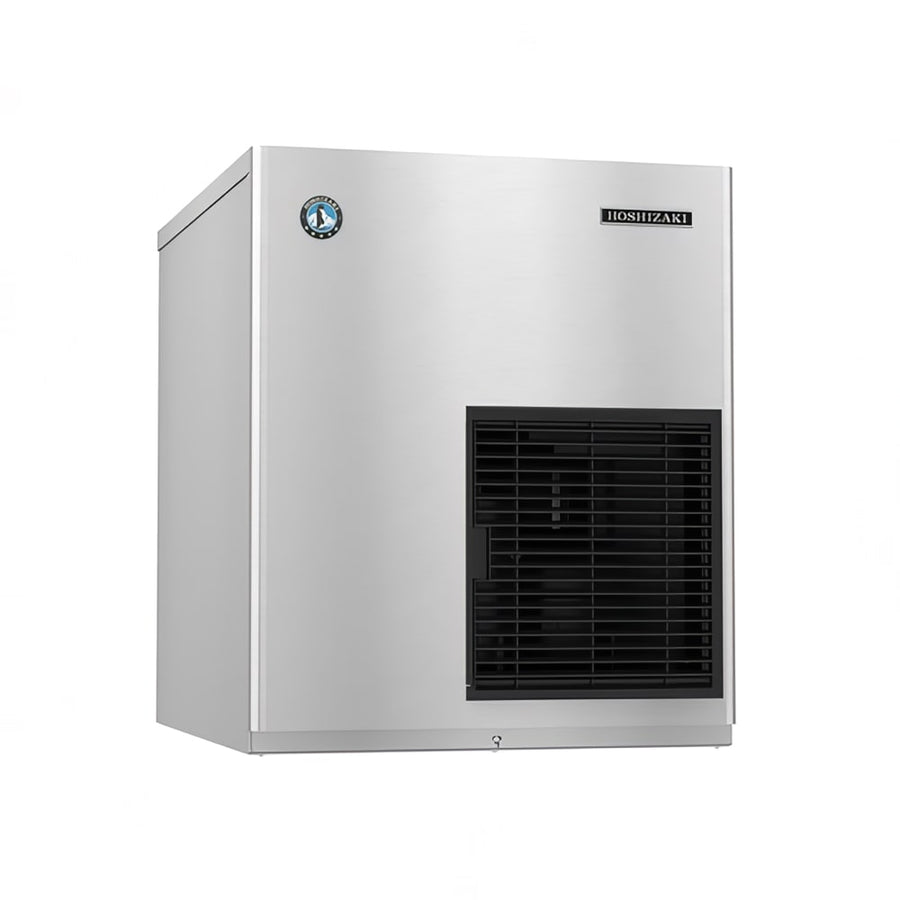

Hoshizaki F-801MWJ 680 lb/Day Flake Commercial Ice Machine & Ice Maker, Water Cooled, Modular Head, 115V
Hoshizaki F-801MWJ 680 lb/Day Flake Commercial Ice Machine & Ice Maker, Water Cooled, Modular Head, 115V
- Produces up to 680 lb of flake ice per day
- Modular head — pairs with a separate ice storage bin
- Water-cooled condenser
- R404A refrigerant
- 22"W x 27.38"D x 26"H exterior
At a glance
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
Overview
The Hoshizaki F-801MWJ is a modular commercial ice machine head that produces up to 680 pounds of flake ice per day. As a head unit it stacks onto a matching Hoshizaki storage bin (sold separately), letting you size production and storage independently for your space and volume. Its soft, moldable flake ice packs tightly around product, ideal for seafood and produce displays, blended drinks, and therapy use.
Engineered for continuous duty, it is built around a corrosion-resistant stainless steel evaporator and a water-cooled refrigeration system running on R404A refrigerant. Hoshizaki's reputation for reliability and long service life makes it a specify-once head for operators who run ice around the clock.
Key Features
- Part of the Slim Line series
- 680-lb. maximum daily ice production
- 605-lb. AHRI-certified daily ice production
- Water-cooled system
- Produces flaked ice
- Stainless steel auger with greaseless bearing
- 2-sec. flush cycle every hr. purifies icemaking water
- Advanced CleanCycle24™ function
- Stainless steel exterior is resilient
- R-404A refrigerant
Installation & Utility Requirements
- Ideal incoming water temperature: 45-90 degrees F
- Ideal incoming water pressure: 10-113 PSI
- Ideal ambient air temperature: 45-100 degrees F
- Ideal clearances: 24 in. at top, 6 in. at sides and rear
- 22 in. W x 27 in. D x 26 in. H
- 11.8 A, 3.9 kW
- 115 V/60 Hz/1 ph
Warranty
Backed by Hoshizaki's 3-year Parts & Labor; 5-year Compressor & Condenser Parts warranty.
Key features
- Produces up to 680 lb of flake ice per day
- Modular head — pairs with a separate ice storage bin
- Water-cooled condenser
- R404A refrigerant
- 22"W x 27.38"D x 26"H exterior
Full specifications
| 24 hr ice production (nominal) | 680 lb |
| Ice type / cube size | Flake |
| Compressor | Water Cooled |
| Refrigerant | R404A |
| Dimensions (W × D × H) | 22.0″ × 27.38″ × 26.0″ |
| Shipping weight | 205.0 lb |
| Electrical | 115 V · Hz · 1 Ph |
Documents & downloads
Warranty
3-year Parts & Labor; 5-year Compressor & Condenser Parts
