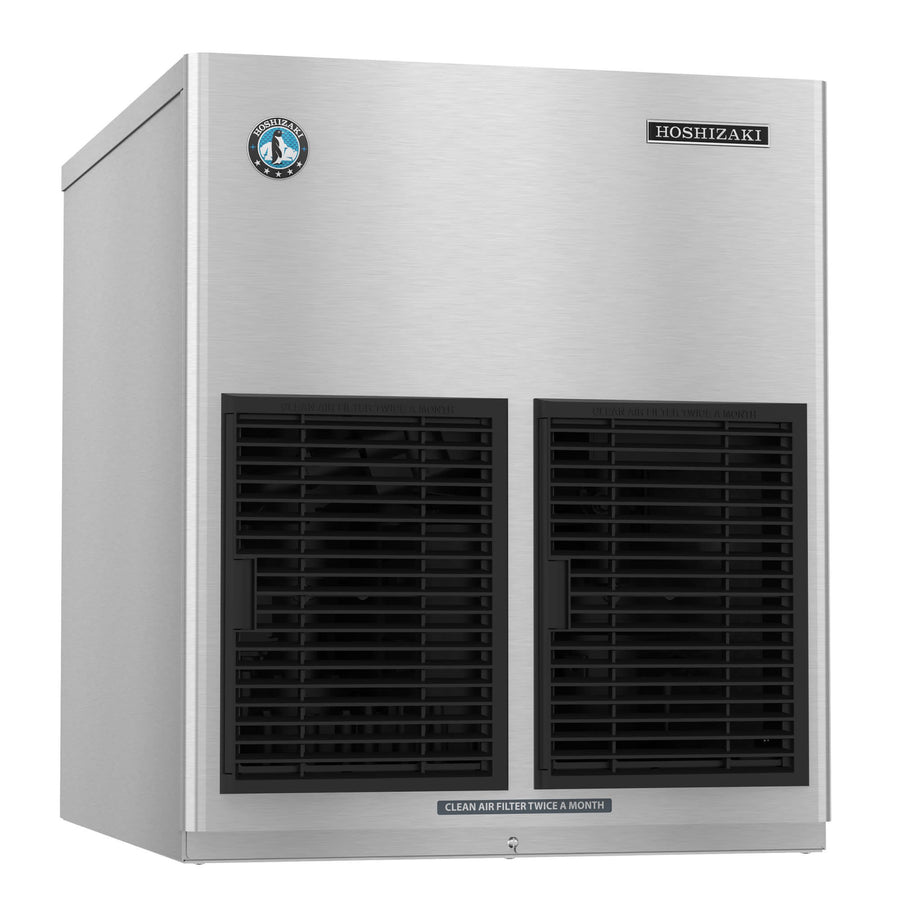

Hoshizaki F-801MWJ-C 632 lb/Day Nugget Commercial Ice Machine & Ice Maker, Water Cooled, Modular Head, 115V
Hoshizaki F-801MWJ-C 632 lb/Day Nugget Commercial Ice Machine & Ice Maker, Water Cooled, Modular Head, 115V
- Produces up to 632 lb of nugget ice per day
- Modular head — pairs with a separate ice storage bin
- Water-cooled condenser
- R404A refrigerant
- 22"W x 27.38"D x 26"H exterior
At a glance
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
Overview
The Hoshizaki F-801MWJ-C is a modular commercial ice machine head that produces up to 632 pounds of nugget ice per day. As a head unit it stacks onto a matching Hoshizaki storage bin (sold separately), letting you size production and storage independently for your space and volume. Its soft, chewable nugget ice is easy on teeth, absorbs flavor, and displaces well, making it a favorite for soft drinks, healthcare, and self-serve.
Engineered for continuous duty, it is built around a corrosion-resistant stainless steel evaporator and a water-cooled refrigeration system running on R404A refrigerant. Hoshizaki's reputation for reliability and long service life makes it a specify-once head for operators who run ice around the clock.
Key Features
- Cubelet ice works well in mixed drinks, soft drinks, and smoothies
- CleanCycle24 feature removes sediment from the ice every hour
- Water-cooled system uses a self-contained condenser
- Maintains cold temperatures with R-404A refrigerant
- Stainless steel exterior is corrosion resistant and easy to clean
- Easy to service since all the panels are easy to remove
- Infrared sensor measures how full the storage bin is, shutting off the compressor to prevent overflow and save energy
- Ice storage bin is not included
- 6,000 BTU
Installation & Utility Requirements
- Produces 632 lbs. of ice in 24 hrs. when operating in an ambient temperature of 70 degrees F with a water temperature of 50 degrees F
- Produces 580 lbs. of ice in 24 hrs. when operating in an ambient temperature of 90 degrees F with a water temperature of 70 degrees F
- 115 V/60 Hz/1 ph, 11.5 A, 4.13 kW
- Overall Dimensions: 22 in. W x 27 3/8 in. D x 26 in. H
Warranty
Backed by Hoshizaki's 3-year Parts & Labor; 5-year Compressor & Condenser Parts warranty.
Key features
- Produces up to 632 lb of nugget ice per day
- Modular head — pairs with a separate ice storage bin
- Water-cooled condenser
- R404A refrigerant
- 22"W x 27.38"D x 26"H exterior
Full specifications
| 24 hr ice production (nominal) | 632 lb |
| Ice type / cube size | Nugget |
| Compressor | Water Cooled |
| Refrigerant | R404A |
| Dimensions (W × D × H) | 22.0″ × 27.38″ × 26.0″ |
| Shipping weight | 205.0 lb |
| Electrical | 115 V · Hz · 1 Ph |
Documents & downloads
Warranty
3-year Parts & Labor; 5-year Compressor & Condenser Parts
