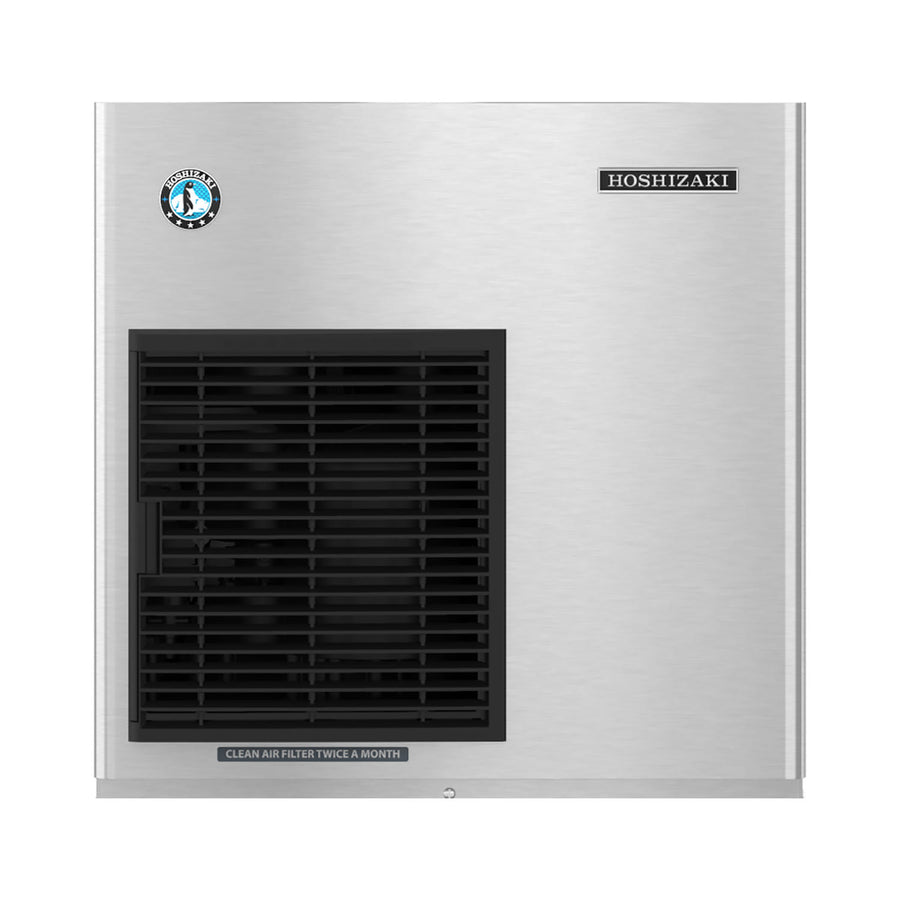

Hoshizaki F-422MAK 485 lb/Day Flake Commercial Ice Machine & Ice Maker, Air Cooled, Modular Head, 115V
Hoshizaki F-422MAK 485 lb/Day Flake Commercial Ice Machine & Ice Maker, Air Cooled, Modular Head, 115V
- Produces up to 485 lb of flake ice per day
- Modular head — pairs with a separate ice storage bin
- Air-cooled condenser
- R290 (Hydrocarbon) refrigerant
- 22"W x 27.38"D x 22"H exterior
At a glance
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
Overview
The Hoshizaki F-422MAK is a modular commercial ice machine head that produces up to 485 pounds of flake ice per day. As a head unit it stacks onto a matching Hoshizaki storage bin (sold separately), letting you size production and storage independently for your space and volume. Its soft, moldable flake ice packs tightly around product, ideal for seafood and produce displays, blended drinks, and therapy use.
Engineered for continuous duty, it is built around a corrosion-resistant stainless steel evaporator and an air-cooled refrigeration system running on R290 (Hydrocarbon) refrigerant. Hoshizaki's reputation for reliability and long service life makes it a specify-once head for operators who run ice around the clock.
Key Features
- Air-cooled unit
- Produces up to 485 lbs. of ice every 24 hours
- Stainless steel construction is durable for commercial use and resists corrosion
- CleanCycle24™ design is a 2-sec. flush cycle every hour removes sediment so ice is cleaner
- Stainless steel auger has greaseless bearing that reduces required maintenance
- Easily mounts next to another ice machine
- Infrared bin control makes cleaning easier and more reliable
- Compatible bins: B-250PF ice bin, B-300PF ice bin, B-300SF ice bin, B-500PF ice bin, B-500SF ice bin, B-700PF ice bin, B-700SF ice bin, B-800PF ice bin, B-800SF ice bin, B-900PF ice bin, B-900SF ice bin, B-1150SS ice bin, B-1300SS ice bin, B-1500SS ice bin, and B-1650SS ice bin
- Flake ice is ideal for produce displays and salad bars since it easily molds to whatever you set on the ice
- Uses R290 refrigerant
Installation & Utility Requirements
- 115 V/60 Hz/1 ph, 4.94 kW, 10.8 A
- Overall Dimensions: 22 in. W x 27 3/8 in. D x 22 in. H
Warranty
Backed by Hoshizaki's 3-year Parts & Labor; 5-year Compressor & Condenser Parts warranty.
Key features
- Produces up to 485 lb of flake ice per day
- Modular head — pairs with a separate ice storage bin
- Air-cooled condenser
- R290 (Hydrocarbon) refrigerant
- 22"W x 27.38"D x 22"H exterior
Full specifications
| 24 hr ice production (nominal) | 485 lb |
| Ice type / cube size | Flake |
| Compressor | Air Cooled |
| Refrigerant | R290 (Hydrocarbon) |
| Dimensions (W × D × H) | 22.0″ × 27.38″ × 22.0″ |
| Shipping weight | 205.0 lb |
| Electrical | 115 V · Hz · 1 Ph |
| Also known as | F-450MAJ |
Documents & downloads
Warranty
3-year Parts & Labor; 5-year Compressor & Condenser Parts
About Hoshizaki
Founded in Japan in 1947, Hoshizaki engineered the country’s first fully automatic ice machine in 1965 and has spent the decades since becoming one of the most trusted names in commercial ice and refrigeration. In the U.S., Hoshizaki has designed and built equipment since 1981 — today across two Georgia manufacturing plants, 1,000+ employees, and 18 North American distribution centers standing behind every unit.
The reputation is built on engineering, not marketing: corrosion-resistant stainless steel evaporators, EverCheck™ onboard diagnostics, and H-Guard Plus antimicrobial protection — backed by ISO 9001 and ISO 14001 certification, repeated ENERGY STAR® Partner of the Year recognition, and some of the strongest warranties in the category. It’s why operators who run ice around the clock keep specifying Hoshizaki.
