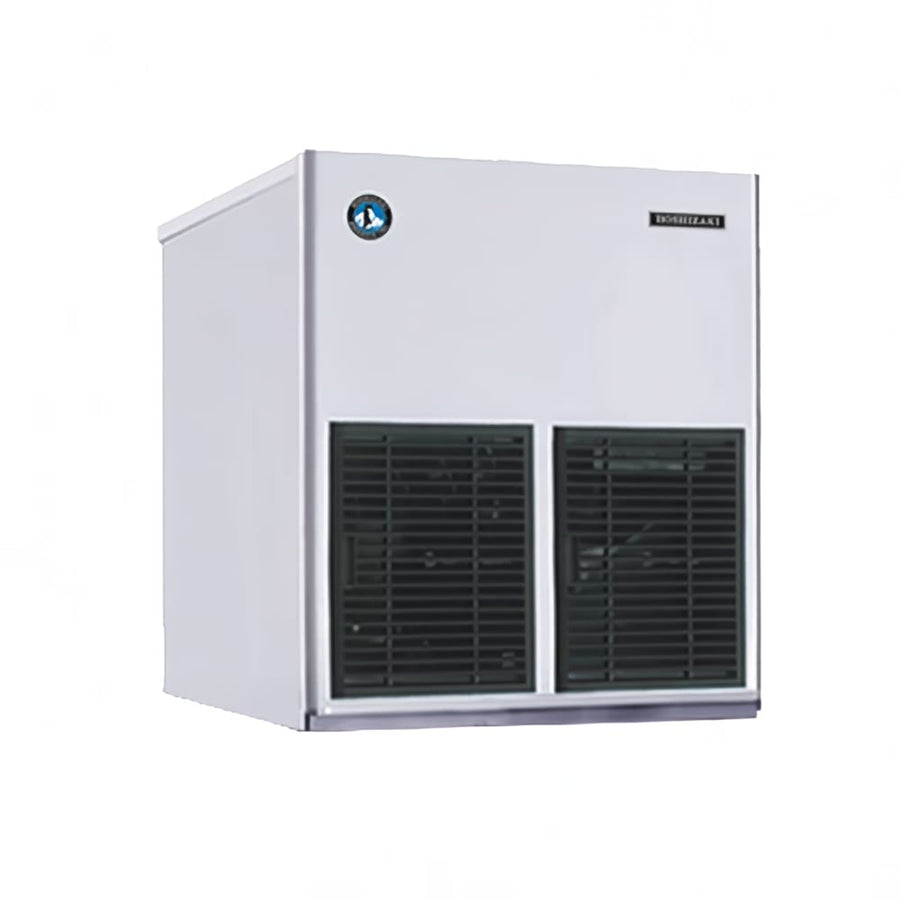

Hoshizaki F-1022MAK-C 865 lb/Day Nugget Commercial Ice Machine & Ice Maker, Air Cooled, Modular Head, 115V
Hoshizaki F-1022MAK-C 865 lb/Day Nugget Commercial Ice Machine & Ice Maker, Air Cooled, Modular Head, 115V
- Produces up to 865 lb of nugget ice per day
- Modular head — pairs with a separate ice storage bin
- Air-cooled condenser
- R290 (Hydrocarbon) refrigerant
- 22"W x 24"D x 26"H exterior
At a glance
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
Overview
The Hoshizaki F-1022MAK-C is a modular commercial ice machine head that produces up to 865 pounds of nugget ice per day. As a head unit it stacks onto a matching Hoshizaki storage bin (sold separately), letting you size production and storage independently for your space and volume. Its soft, chewable nugget ice is easy on teeth, absorbs flavor, and displaces well, making it a favorite for soft drinks, healthcare, and self-serve.
Engineered for continuous duty, it is built around a corrosion-resistant stainless steel evaporator and an air-cooled refrigeration system running on R290 (Hydrocarbon) refrigerant. Hoshizaki's reputation for reliability and long service life makes it a specify-once head for operators who run ice around the clock.
Key Features
- Air-cooled condensing unit
- 865-lb. maximum daily ice production
- Makes cubelet ice
- CleanCycle24 technology flushes ice every 2 hrs. to remove sediment
- Bin control uses an infrared beam to sense ice level in the bin and stop production when it is full
- H-GUARD Plus antimicrobial agent minimizes bacteria growth
- R290 refrigerant
- Stainless steel exterior is heavy duty and cleans quickly
- Ice bin sold separately
- 8,700 BTU
Installation & Utility Requirements
- Required ambient air range: 45-100 degrees F
- Required incoming water range: 45-90 degrees F
- 15.2 A, 4.57 kW
- 115 V/60 Hz/1 ph
- Overall dimensions: 22 in. W x 24 in. D x 26 in. H
Warranty
Backed by Hoshizaki's 3-year Parts & Labor; 5-year Compressor & Condenser Parts warranty.
Key features
- Produces up to 865 lb of nugget ice per day
- Modular head — pairs with a separate ice storage bin
- Air-cooled condenser
- R290 (Hydrocarbon) refrigerant
- 22"W x 24"D x 26"H exterior
Full specifications
| 24 hr ice production (nominal) | 865 lb |
| Ice type / cube size | Nugget |
| Compressor | Air Cooled |
| Refrigerant | R290 (Hydrocarbon) |
| Dimensions (W × D × H) | 22.0″ × 24.0″ × 26.0″ |
| Shipping weight | 210.0 lb |
| Electrical | 115 V · Hz · 1 Ph |
| Also known as | FD-1002MAJ-C |
Documents & downloads
Warranty
3-year Parts & Labor; 5-year Compressor & Condenser Parts
About Hoshizaki
Founded in Japan in 1947, Hoshizaki engineered the country’s first fully automatic ice machine in 1965 and has spent the decades since becoming one of the most trusted names in commercial ice and refrigeration. In the U.S., Hoshizaki has designed and built equipment since 1981 — today across two Georgia manufacturing plants, 1,000+ employees, and 18 North American distribution centers standing behind every unit.
The reputation is built on engineering, not marketing: corrosion-resistant stainless steel evaporators, EverCheck™ onboard diagnostics, and H-Guard Plus antimicrobial protection — backed by ISO 9001 and ISO 14001 certification, repeated ENERGY STAR® Partner of the Year recognition, and some of the strongest warranties in the category. It’s why operators who run ice around the clock keep specifying Hoshizaki.
