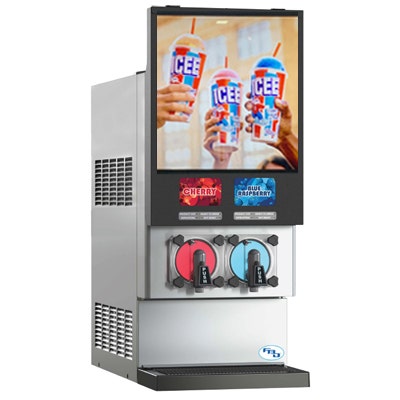

The FBD 772 is a 2-barrel commercial frozen carbonated beverage (FCB) dispenser that pours 2 flavors with a continuous draw of up to 4,500 oz/hr — built to keep up with peak-rush demand.

Frozen carbonated beverages are one of the highest-margin programs in foodservice (roughly 50% CO2, 40% water, 10% syrup), with easy maintenance for locations that run lean on staff.

Engineered for convenience stores, quick-serve restaurants, movie theaters, and entertainment venues that need recovery speed and uptime through the rush.

Specifications

• Flavors / barrels: 2 flavor(s), 2 barrel(s) (176 oz)
• Continuous draw: up to 4,500 oz/hr
• Cooling: Air-Cooled · Refrigeration 15,000 / 19,000 BTU/hr · R-404A / R-448A
• Recovery time: 4 min
• Dimensions (W x D x H): 17.0 x 32.5 x 34.0 / 41.4 / 43.5 in
• Empty weight: 298 lb
• Electrical: 230 VAC, 20 A, NEMA L6-20R; beater motors (2) 1/6 HP
• Syrup: BIB connections, 2
• Agency: NSF 18, UL/CSA 60335-1

Install & sizing. Plan the correct dedicated circuit, a CO2 source for carbonation, and a bag-in-box syrup supply. Ships assembled on a pallet by LTL freight; allow clearance for airflow on air-cooled units.

Why FBD. FBD is trusted by roughly 80% of the world’s frozen beverage brands, including ICEE, Coca-Cola, Taco Bell, and AMC Theatres. FBD pairs patented OptiPour™, OptiFreeze™, Inline Carbonation™, and RapidFreeze™ technology with an energy-saving scroll compressor and an 8+ year average service life. Backed by FBD’s USA warranty — 5-year sealed refrigeration system (compressor, condenser, evaporator, capillary tubes, drier); 1-year all other parts — plus free 24/7 technical and after-hours support.
