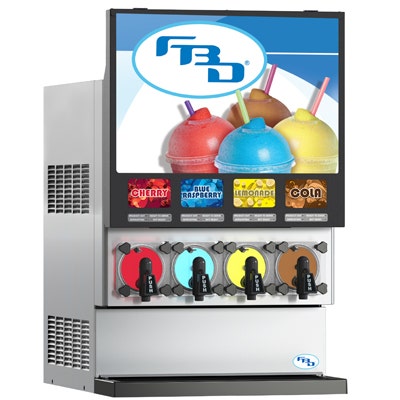

FBD 774 4-Flavor Frozen Carbonated Beverage Dispenser, Air-Cooled, Commercial Frozen Drink & Slushie Machine, 5,160 oz/hr
FBD 774 4-Flavor Frozen Carbonated Beverage Dispenser, Air-Cooled, Commercial Frozen Drink & Slushie Machine, 5,160 oz/hr
- 4 flavors from 4 barrels of frozen carbonated beverage
- Continuous draw up to 5,160 oz/hr (176 oz barrels)
- Air-Cooled refrigeration (19,000 BTU/hr, R-404A / R-448A); recovers in 4 min
- Footprint 26.0 W x 32.5 D x 34.0 / 41.4 / 43.5 H in; 230 VAC / 30 A (NEMA L6-30R)
- Energy-saving scroll compressor; 5-yr sealed-system warranty; free 24/7 FBD tech support
At a glance
Overview
The FBD 774 is a 4-barrel commercial frozen carbonated beverage (FCB) dispenser that pours 4 flavors with a continuous draw of up to 5,160 oz/hr — built to keep up with peak-rush demand.
Frozen carbonated beverages are one of the highest-margin programs in foodservice (roughly 50% CO2, 40% water, 10% syrup), with easy maintenance for locations that run lean on staff.
Engineered for convenience stores, quick-serve restaurants, movie theaters, and entertainment venues that need recovery speed and uptime through the rush.
Specifications
- Flavors / barrels: 4 flavor(s), 4 barrel(s) (176 oz)
- Continuous draw: up to 5,160 oz/hr
- Cooling: Air-Cooled · Refrigeration 19,000 BTU/hr · R-404A / R-448A
- Recovery time: 4 min
- Dimensions (W x D x H): 26.0 x 32.5 x 34.0 / 41.4 / 43.5 in
- Empty weight: 418 lb
- Electrical: 230 VAC, 30 A, NEMA L6-30R; beater motors (4) 1/6 HP
- Syrup: BIB connections, 4
- Agency: NSF 18, UL/CSA 60335-1
Install & sizing. Plan the correct dedicated circuit, a CO2 source for carbonation, and a bag-in-box syrup supply. Ships assembled on a pallet by LTL freight; allow clearance for airflow on air-cooled units.
Why FBD. FBD is trusted by roughly 80% of the world’s frozen beverage brands, including ICEE, Coca-Cola, Taco Bell, and AMC Theatres. FBD pairs patented OptiPour™, OptiFreeze™, Inline Carbonation™, and RapidFreeze™ technology with an energy-saving scroll compressor and an expected lifespan of 7+ years. Backed by FBD’s USA warranty — 5-year sealed refrigeration system (compressor, condenser, evaporator, filter drier); 1-year all other parts — plus free 24/7 technical and after-hours support.
Key features
- 4 flavors from 4 barrels of frozen carbonated beverage
- Continuous draw up to 5,160 oz/hr (176 oz barrels)
- Air-Cooled refrigeration (19,000 BTU/hr, R-404A / R-448A); recovers in 4 min
- Footprint 26.0 W x 32.5 D x 34.0 / 41.4 / 43.5 H in; 230 VAC / 30 A (NEMA L6-30R)
- Energy-saving scroll compressor; 5-yr sealed-system warranty; free 24/7 FBD tech support
Full specifications
| Flavors / barrels | 4 flavor(s), 4 barrel(s) (176 oz) |
| Continuous draw | 5,160 oz/hr |
| Recovery time | 4 min |
| Cooling | Air-Cooled |
| Refrigeration | 19,000 BTU/hr · R-404A / R-448A |
| Dimensions (W × D × H) | 26.0 x 32.5 x 34.0 / 41.4 / 43.5 in |
| Weight | 418 lb (empty) |
| Electrical | 230 VAC · 30 A · NEMA L6-30R |
| Beater motors | (4) 1/6 HP |
| Syrup | BIB connections, 4 |
| Agency | NSF 18, UL/CSA 60335-1 |
| Warranty | 5-year sealed refrigeration system (compressor, condenser, evaporator, filter drier) 1-year all other parts |
Compare FBD 77X models
 FBD 774 4-FlavorThis model |  FBD 771 Multi-Flavor |  FBD 772 Multi-Flavor |  FBD 773 3-Flavor | |
|---|---|---|---|---|
| Flavors | 4 | 1 | 2 | 3 |
| Continuous draw | 5,160 oz/hr | 3,600 oz/hr | 4,500 oz/hr | 5,160 oz/hr |
| Barrels | 4 | 1 | 2 | 3 |
| Cooling | Air-Cooled | Air-Cooled | Air-Cooled | Air-Cooled |
| Footprint (W×D×H) | 26.0 x 32.5 x 34.0 / 41.4 / 43.5 in | 17.0 x 32.5 x 34.0 / 41.3 in | 17.0 x 32.5 x 34.0 / 41.3 in | 20.3 x 32.5 x 34.0 / 41.4 / 43.5 in |
| Price | $14,283.99 | $12,888.99 | $15,053.99 | $12,916.88 |
| — | View → | View → | View → |
Documents & downloads
Recently viewed
Searches related to this
Get your unadvertised price
FBD doesn’t allow us to publish our lowest price online. Request an unadvertised deal and we’ll send you the best price we’re allowed to quote, privately and with no obligation.
Frequently asked questions
What electrical supply does the FBD 774 need?
FBD specifies 230 VAC ±10% at 60 Hz, 30 A (3,240 W), with a NEMA L6-30R 3-wire receptacle. A buck-boost transformer or AVR is required where supply voltage falls outside the ±10% range.
How much space does the air-cooled 774 take up?
It is 26.0 in wide and 32.5 in deep, and 34.0 in, 41.4 in or 43.54 in high depending on whether it has the short, tall or video door. FBD lists minimum clearance of 3 in at the back and sides. Above the unit it lists 12 in where the sides or back are open to the air and 36 in in an equipment alcove.
What water, CO2 and syrup supplies does it need?
A 3/8 in water supply line with at least 30 PSIG flowing pressure, CO2 at 70 to 72 PSIG maximum, and syrup at 70 to 72 PSIG from bag-in-box connections for four base syrups.
How often does the 774 need cleaning and sanitizing?
FBD's manual calls for cleaning the exterior daily with a mild soap solution and cleaning the air filter monthly, or every two weeks in dusty or greasy locations. FBD recommends sanitizing the dispenser annually or after it has been out of operation for an extended period.
How does defrost work on the 774?
Product in the barrel is defrosted periodically because ice crystals grow over time and degrade the texture of the drink. A defrost takes about eight to twelve minutes and can be started manually, run on a schedule of up to eight per barrel per day, or adjusted automatically to customer activity.
