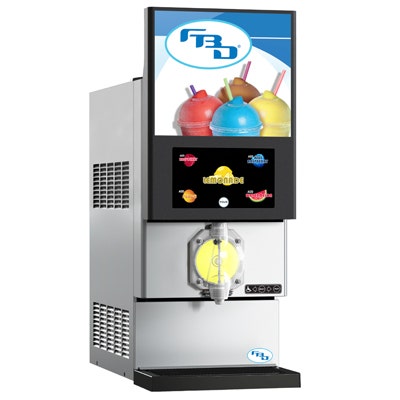

FBD 771 Multi-Flavor Frozen Beverage Dispenser, Up to 16 Flavor Combinations, Air-Cooled, Commercial Frozen Drink & Slushie Machine
FBD 771 Multi-Flavor Frozen Beverage Dispenser, Up to 16 Flavor Combinations, Air-Cooled, Commercial Frozen Drink & Slushie Machine
- Multi-flavor: up to 16 flavor combinations from 1 barrel(s) with a 13.3" touchscreen
- Continuous draw up to 3,600 oz/hr (184 oz barrels)
- Air-Cooled refrigeration (15,000 / 19,000 BTU/hr, R-404A / R-448A); recovers in 4 min
- Footprint 17.0 W x 32.5 D x 34.0 / 41.3 H in; 230 VAC / 20 A (NEMA L6-20R)
- Energy-saving scroll compressor; 5-yr sealed-system warranty; free 24/7 FBD tech support
At a glance
Overview
The FBD 771 Multi-Flavor dispenser pours up to 16 flavor combinations from a 1-barrel cabinet with a 13.3" touchscreen, so one compact footprint covers a full frozen menu — frozen lemonade, frozen coffee, slushies, and more.
Multi-flavor lets customers build their own drink, which drives trial and repeat purchases while you hold the smallest counter footprint in the category.
Engineered for convenience stores, quick-serve restaurants, movie theaters, and entertainment venues that need recovery speed and uptime through the rush.
Specifications
- Flavors / barrels: 1 flavor(s), 1 barrel(s) (184 oz)
- Continuous draw: up to 3,600 oz/hr
- Cooling: Air-Cooled · Refrigeration 15,000 / 19,000 BTU/hr · R-404A / R-448A
- Recovery time: 4 min
- Dimensions (W x D x H): 17.0 x 32.5 x 34.0 / 41.3 in
- Empty weight: 288 lb
- Electrical: 230 VAC, 20 A, NEMA L6-20R; beater motors (1) 1/6 HP
- Syrup: BIB connections, 1 base + 4 flavor shots
- Agency: NSF 18, UL/CSA 60335-1
Install & sizing. Plan the correct dedicated circuit, a CO2 source for carbonation, and a bag-in-box syrup supply. Ships assembled on a pallet by LTL freight; allow clearance for airflow on air-cooled units.
Why FBD. FBD is trusted by roughly 80% of the world’s frozen beverage brands, including ICEE, Coca-Cola, Taco Bell, and AMC Theatres. FBD pairs patented OptiPour™, OptiFreeze™, Inline Carbonation™, and RapidFreeze™ technology with an energy-saving scroll compressor and an 8+ year average service life. Backed by FBD’s USA warranty — 5-year sealed refrigeration system (compressor, condenser, evaporator, capillary tubes, drier); 1-year all other parts — plus free 24/7 technical and after-hours support.
Key features
- Multi-flavor: up to 16 flavor combinations from 1 barrel(s) with a 13.3" touchscreen
- Continuous draw up to 3,600 oz/hr (184 oz barrels)
- Air-Cooled refrigeration (15,000 / 19,000 BTU/hr, R-404A / R-448A); recovers in 4 min
- Footprint 17.0 W x 32.5 D x 34.0 / 41.3 H in; 230 VAC / 20 A (NEMA L6-20R)
- Energy-saving scroll compressor; 5-yr sealed-system warranty; free 24/7 FBD tech support
Full specifications
| Flavors / barrels | 1 flavor(s), 1 barrel(s) (184 oz) |
| Flavor combinations | Up to 16 combinations · 13.3" touchscreen |
| Continuous draw | 3,600 oz/hr |
| Recovery time | 4 min |
| Cooling | Air-Cooled |
| Refrigeration | 15,000 / 19,000 BTU/hr · R-404A / R-448A |
| Dimensions (W × D × H) | 17.0 x 32.5 x 34.0 / 41.3 in |
| Weight | 288 lb (empty) |
| Electrical | 230 VAC · 20 A · NEMA L6-20R |
| Beater motors | (1) 1/6 HP |
| Syrup | BIB connections, 1 base + 4 flavor shots |
| Agency | NSF 18, UL/CSA 60335-1 |
| Warranty | 5-year sealed refrigeration system (compressor, condenser, evaporator, capillary tubes, drier) 1-year all other parts |
Compare FBD 77X models
 FBD 771 Multi-FlavorThis model |  FBD 772 Multi-Flavor |  FBD 773 3-Flavor |  FBD 774 4-Flavor | |
|---|---|---|---|---|
| Flavors | 1 | 2 | 3 | 4 |
| Continuous draw | 3,600 oz/hr | 4,500 oz/hr | 5,160 oz/hr | 5,160 oz/hr |
| Barrels | 1 | 2 | 3 | 4 |
| Cooling | Air-Cooled | Air-Cooled | Air-Cooled | Air-Cooled |
| Footprint (W×D×H) | 17.0 x 32.5 x 34.0 / 41.3 in | 17.0 x 32.5 x 34.0 / 41.3 in | 20.3 x 32.5 x 34.0 / 41.4 / 43.5 in | 26.0 x 32.5 x 34.0 / 41.4 / 43.5 in |
| Price | $13,144.72 | $15,053.99 | $11,611.65 | $14,283.99 |
| — | View → | View → | View → |
