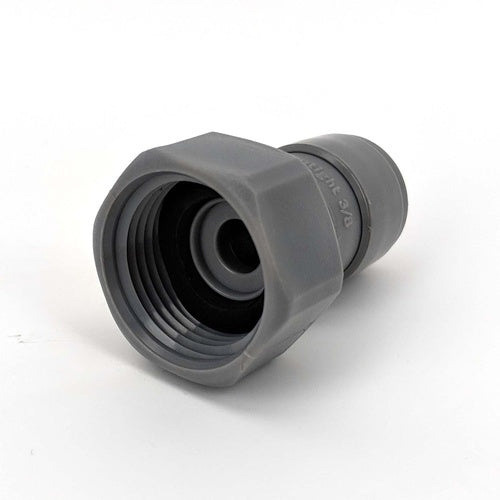

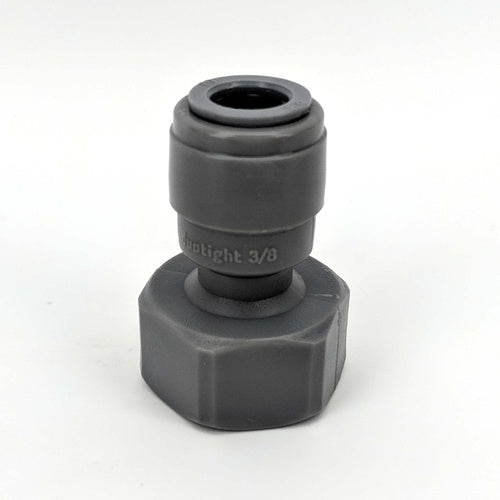

Duotight Push-In Fitting - 9.5 mm (3/8 in.) x 5/8 in. FPT - KL06910 by KegLand

Quick Overview

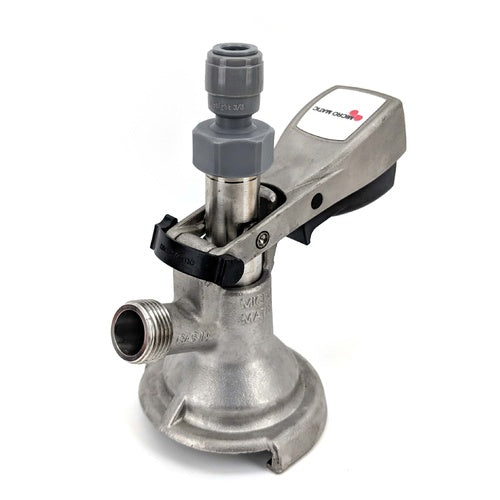

This Duotight fitting with 5/8" FPT is perfect for connecting gas line to keg couplers.
Although it could be used with 9.5 mm EVA Barrier as a beverage line, this would only be recommended for long draw systems where the beverage line will be 20-25 ft long.
Compatible with EVABarrier 9.5 mm OD tubing.
Duotight fittings are high-quality push-in fittings that seal tight and offer superior sealing capacity due to the double O-ring sealing design.

Product Overview

This Duotight fitting with 5/8" FPT is perfect for connecting gas line to keg couplers. Although it could be used with 9.5 mm EVA Barrier as a beverage line, this would only be recommended for long draw systems where the beverage line will be 20-25 ft long. Compatible with EVABarrier 9.5 mm OD tubing (D1719).

Duotight fittings are high-quality push-in fittings that seal tight and offer superior sealing capacity due to the double O-ring sealing design.

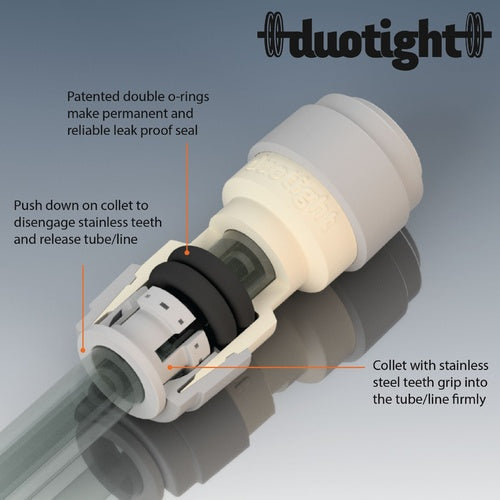

High Performance Double O-Ring Design:

The secret to Duotight’s superior sealing performance comes from the fact that they use not one, but two high-quality EPDM O-rings. The double O-ring means they have literally twice the sealing surface when compared with other push-in fittings. This makes them more reliable and significantly reduces the chance of leakage.

The double O-ring system also means that tubing can be bent at a much tighter radius without causing leaking issues, which can be an issue with other fittings. This combination of factors makes Duotight the most reliable push-in fittings on the market.

EPDM offers excellent chemical resistance for a longer life span. When compared with silicone and vinyl, EPDM has much better gas transmission rates, better wear resistance, and is BPA-free.

No Clamps Necessary!

We recommend cutting your tubing straight, not on an angle, to ensure the line forms a complete seal. To remove the fitting simply push in the collet and the hose can be removed.

Compatible with EVABarrier 9.5 mm OD tubing (D1719). This Duotight fitting with 5/8" FPT is perfect for connecting gas line to keg couplers. Although it could be used with 9.5 mm EVA Barrier as a beverage line, this would only be recommended for long draw systems where the beverage line will be 20-25 ft long.

Features:

Insert tubing and firmly push in to attach
Easily release tubing by pushing in the collet
Suitable for both gas & beverage applications
Double O-rings made from EPDM
Pressure rated to 100 psi

Keg coupler not included.
