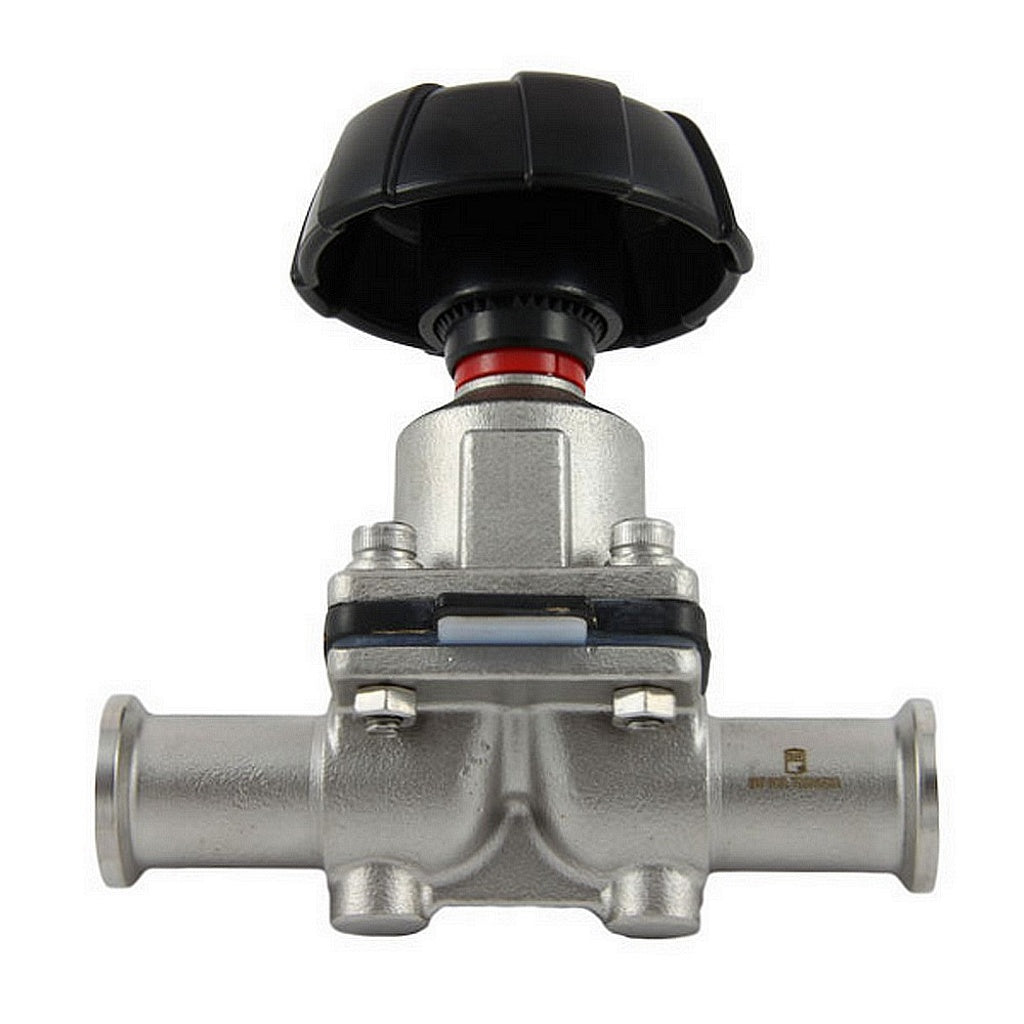

0.75" Tri-Clamp Sanitary Diaphragm Valve - 316L Stainless Steel with EPDM/PTFE Diaphragm
$10895
0.75" Tri-Clamp Sanitary Diaphragm Valve - 316L Stainless Steel with EPDM/PTFE Diaphragm
On Sale
0.75" Tri-Clamp Sanitary Diaphragm Valve - 316L Stainless Steel with EPDM/PTFE Diaphragm
In stock
$10895$136.19Save $27.24
30-day returns · Easy with prepaid labels provided
Get it by 3–5 business days
Free shipping · Change ZIP
As soon as tomorrow. Choose Next Day during checkout.
- High-Purity Flow Control: The 0.75" sanitary diaphragm valve offers precise throttling and an airtight seal, making it the top choice for pharmaceutical and biotech processing.
- Fully Drainable Weir Design: Engineered with a weir-style body that prevents fluid entrapment, ensuring a sanitary and sterile environment during CIP and SIP cycles.
- Forged 316L Stainless Steel: Constructed from 316L stainless steel with a 20Ra internal finish to resist corrosion and inhibit bacterial growth in beverage dispensing systems.
- Universal Tri-Clamp Ends: Features 3/4 inch Tri-Clover compatible connections for rapid installation and tool-free maintenance in high-purity process piping.
- USP Class VI Compliant: Equipped with a medical-grade diaphragm that meets the highest standards for biocompatibility and chemical resistance in sterile fluid transfer.
?
Need a hand?
Bilingual support from real techs · Mon–Fri 8:30–5 CT
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
This professional-grade 0.75" (3/4 inch) Tri-Clamp (Tri-Clover compatible) diaphragm valve is engineered for high-purity fluid control in pharmaceutical, biotech, and food & beverage processing. Featuring a weir-style body design, this valve ensures full drainability and zero-dead-leg performance when installed at the proper pitch. The manual actuator provides precise flow regulation, while the sanitary diaphragm isolates all mechanical moving parts from the process media, preventing batch contamination and ensuring a sterile flow path.
- Size: 0.75" (3/4 inch) Tri-Clamp / Tri-Clover Compatible
- Body Material: Forged 316L Stainless Steel (ASTM A182)
- Diaphragm Options: High-purity EPDM or PTFE/EPDM backed (USP Class VI compliant)
- Actuator: Manual Handwheel (High-impact PPS or Stainless Steel)
- Surface Finish: 20Ra (SF1) internal polish for superior cleanability
- Ratings: Rated for up to 150 PSI (10 bar) and temperatures up to 300°F (149°C)
- Compliance: FDA, USP Class VI, and 3-A Sanitary Standards
Technician's Note: When installing in a CIP (Clean-In-Place) system, ensure the valve is mounted at the recommended drain angle (typically 20° to 30°) to achieve full gravity drainage. This 0.75" model is ideal for sampling ports or low-flow bypass loops. Periodically inspect the diaphragm for "cold flow" or permanent deformation; if the valve requires excessive force to shut off, the diaphragm is likely reaching the end of its service life and should be replaced to prevent internal bypass.
