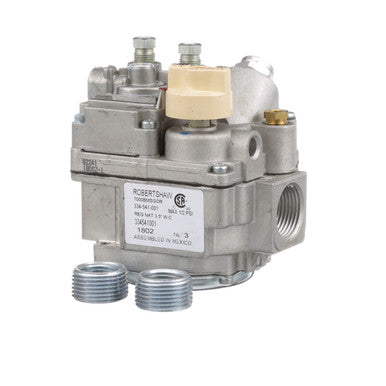

Bleed Type Natural Gas Combination Safety Valve for Pitco, Vulcan Hart – Replaces Pitco PTP5045659
- Part type: Gas Combination Valve
- Fits: Pitco, Vulcan Hart
- Listed fitment: 34 listed models
- Replaces: Pitco PTP5045659
- Connection Size: 1/2
- Gas Type: Natural Gas
- Aftermarket replacement · ships fast · 30-day returns
All compatible models
34 models· 2 seriesVerify your unit's model number on the data plate matches one below before ordering.
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
The Bleed Type Natural Gas Combination Safety Valve is a Mavrik aftermarket replacement part for Pitco, Vulcan Hart equipment, built to meet the original equipment specification. It is listed to fit 34 models across 2 manufacturers. Replaces Pitco PTP5045659 and 30 other OEM part numbers.
Manufacturer detail
[ nat gas ] [ size 3/4" FPT ] [ nat safety ][ 3.5"WC ] [BLEED gas ACTUATOR] [ width 4"] [ brand rsw ] 1/4" CCT pilot out only, W/SLOTTED thermopile magnet 3/4" x 1/2" reducer bushings, model 7000 bmsgor bleed gas ports 1/4" CCT, 300,000 BTU Brass pile holding nut, 3/8-38 thread for magnet, 750MV, 500MV UNDER load. Southbend FRYER series: 14,18. Vulcan Hart FRYER 7891G, 7892G, HF91G, HF92G. Wolf FRYER SS-WTF-42, WTF-42.
Specifications
| Connection Size | 1/2 |
|---|---|
| Gas Type | Natural Gas |
| Heating Output (BTU) | 300000 |
| Inlet (in) | 0.75 |
| Pilot Outlet | 1/4 Cct Pilot Out Only, W/Slotted Thermopile Magnet |
| Pressure (PSI) | 3.5 |
| Terminal Style | Compression nuts |
| Length (in) | 4.5 |
| Width (in) | 4 |
| Height (in) | 3 |
| Sold As | Each |
Fits these models
- Pitco: 12, 12C, 12CSS, 14, 14B-C, 14C+S, 14CBU-CV, 14R, 14R-CV, 14S, 14S-CV, 18 and 19 more
- Vulcan Hart: GHF91G, GHF92G, WTF-42
Replaces these part numbers
- Garland: 1092700, GL1092700
- Hobart: 110841-1, 410841-1, 412196-G11, 412196-G13, 412196-G17, 410841-00001, 412196-00G11, 412196-00G13
- Pitco: PTP5045659
- Uline Refrigeration: 700-886, 334-541-001
- Vulcan Hart: 110841-1, 410841-1, 412196-G11, 412196-G13, 412196-G17, VH110841-1, VH410841-1, 410841-00001
Common questions
- Is this a genuine OEM part?
- No. This is a Mavrik aftermarket replacement part built to meet the original equipment specification. It is not sold or warranted by the OEM.
- Will it fit my machine?
- This part is listed for 34 models across 2 manufacturers — see the fitment list above. If your model is not listed, send us your model and serial number and we will confirm before you buy.
- How fast does it ship?
- Ships from Howdy Brewer with same-day dispatch on in-stock orders placed before the daily cutoff, and a 30-day return window.
