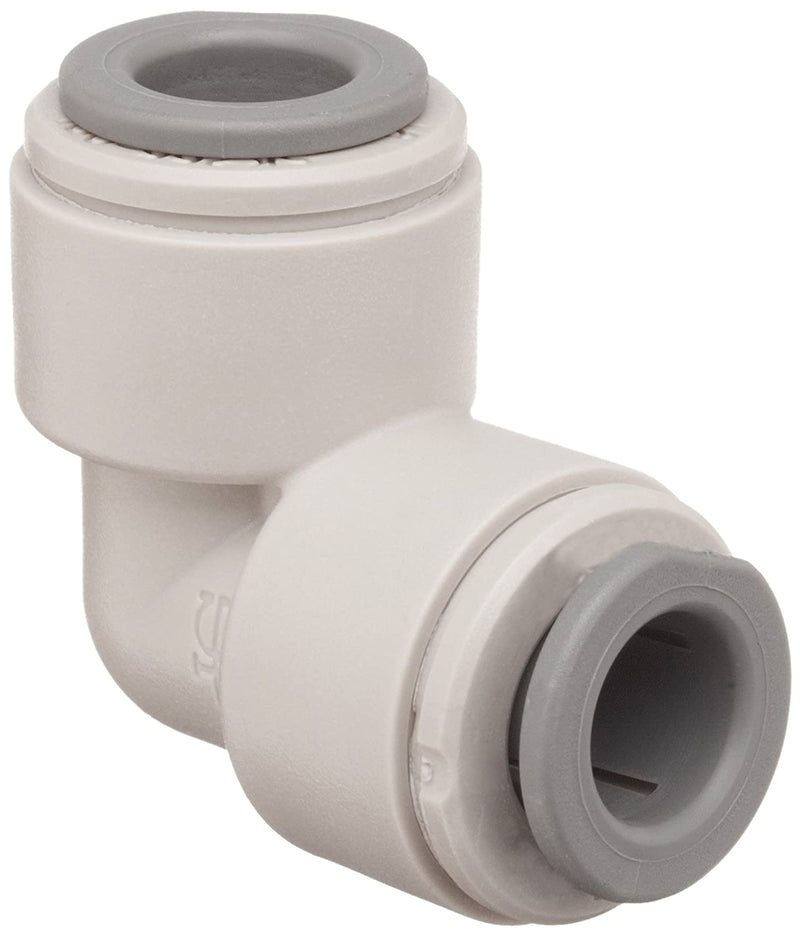

John Guest 5/16" Tube OD Super Speedfit Acetal Union Elbow Quick Connect Fitting

More from: John Guest
In stock
Item: PM0308S
Regular price $5.28
Regular price Save 47% $9.90 Sale price $5.28
Found a lower price? Request Price Match

Quick Overview

  • Union elbow for joining two tubes at an angle
  • Accepts nylon and polyurethane tube fittings
  • Made of acetal copolymer plastic for low moisture absorption and high tensile and flexural strength
  • Working pressure of up to 150 psi
  • Meets NSF/ANSI standards 14, 51, and 61 for quality assurance
  • Dimensions LxWxH: 5.2 x 3 x 0.6 inches

Product Overview

Connect and Disconnect Tubing without Tools-Meets FDA standards & NSF listed. O-ring/collet design. Type 302 S.S. teeth for extra gripping power. Acetal bodies, nitrile o-rings, and acetal/stainless steel collets meet requirements for food grade and high-purity applications. Temperature from 33° to 158°F. 5/32" - 5/16" will withstand 230 PSI @ 73°F. 3/8" - 1/2" will withstand 150 PSI @ 73°F. Will withstand a full vacuum. Use fittings with polypropylene, polyethylene, and other rigid tubings. Special adapters (tube-to-hose stems and elbows) let you use soft tubing such as Tygon® or silicone. Create rotating swivel connections by connecting special stem adapters with male pipe threads together. Light gray color. Acetal-Celcon.
