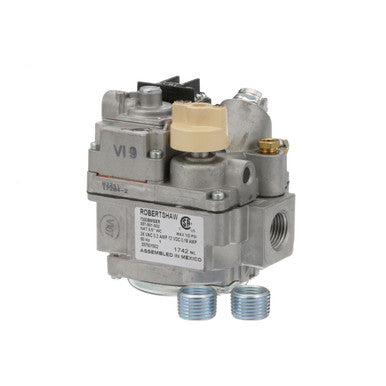

24V Natural Gas Safety Valve for Pitco, Vulcan Hart, Frymaster – Replaces Uline Refrigeration 700-409
24V Natural Gas Safety Valve for Pitco, Vulcan Hart, Frymaster – Replaces Uline Refrigeration 700-409
- Part type: Gas Combination Valve
- Fits: Pitco, Vulcan Hart, Frymaster
- Listed fitment: 59 listed models
- Replaces: Uline Refrigeration 700-409
- Gas Type: Natural Gas
- Heating Output (BTU): 300,000
- Aftermarket replacement · ships fast · 30-day returns
All compatible models
59 models· 3 seriesVerify your unit's model number on the data plate matches one below before ordering.
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
The 24V Natural Gas Safety Valve is a Mavrik aftermarket replacement part for Pitco, Vulcan Hart, Frymaster equipment, built to meet the original equipment specification. It is listed to fit 59 models across 3 manufacturers. Replaces Uline Refrigeration 700-409 and 16 other OEM part numbers.
Manufacturer detail
[ nat gas ] [ size 1/2" FPT ] [ nat safety ][ 3.5"WC ] [24VAC/12VDC] [ width 3.75" ] [RED & blue WIRES] [ brand rs MFG# 700-409 ], 300,000 BTU, bmser 1/4" CCT pilot out only, W/SLOTTED thermopile magnet 1/2" x 3/8" reducer bushings, model 7000 bmser for intermittant pilot, direct spark, and hot surface. Brass pile holding nut, 3/8-38 thread, for magnet, 750MV, 500MV UNDER load , Frymaster FRYER F45, MAC(51,151,251,351), MJ45, MJ45E. FRYER models made in or after feb.
Specifications
| Gas Inlet Size (in) | 0.5 |
|---|---|
| Gas Type | Natural Gas |
| Heating Output (BTU) | 300,000 |
| Outlet | 1/2 in FPT |
| Pilot Outlet | 1/4 CCT |
| Psi | 3.5WC |
| Terminals | Red & Blue Wires |
| Voltage (V AC) | 24 |
| Voltage (V DC) | 12 |
| Length (in) | 5.75 |
| Width (in) | 3.75 |
| Height (in) | 4 |
| Sold As | Each |
Fits these models
- Frymaster: FM345, FM345 WITH UNDER FRYER FILTER MACHINE, MJ345E, MJ45, MJ45E
- Pitco: 12, 14, 14R, 14RS-HHQ, 14UFM, 14UFM WITH UNDER FRYER FILTER MACHINE, 18-2WKSUFM, 18UFM WITH UNDER FRYER FILTER MACHINE, 20F, 24P, 3-14S-C/UFM, 34FF and 17 more
- Vulcan Hart: 1GRC35, 1GRC45, 1GRC65, 1GRD45, 1GRD65, 1GRS35, 1GRS45, 1GRS65, 3GR45MF, GR35F, GR45F, GR65F and 13 more
Replaces these part numbers
- Dean: 8070428, 807-0428
- Frymaster: 8070428, 807-0428, FM8070428, FM807-0428
- Hobart: 410841-30, 410841-00030, 00-410841-00030
- Magikitch'n: MKP5045638, MKP5045639
- Pitco: P5045638, P5045639, PTP5045638
- Uline Refrigeration: 700-409
- Vulcan Hart: 410841-30, VH410841-30, 410841-00030, VH410841-00030, VHL41084-43130, 00-410841-00030, VH00-410841-00030
Common questions
- Is this a genuine OEM part?
- No. This is a Mavrik aftermarket replacement part built to meet the original equipment specification. It is not sold or warranted by the OEM.
- Will it fit my machine?
- This part is listed for 59 models across 3 manufacturers — see the fitment list above. If your model is not listed, send us your model and serial number and we will confirm before you buy.
- How fast does it ship?
- Ships from Howdy Brewer with same-day dispatch on in-stock orders placed before the daily cutoff, and a 30-day return window.
