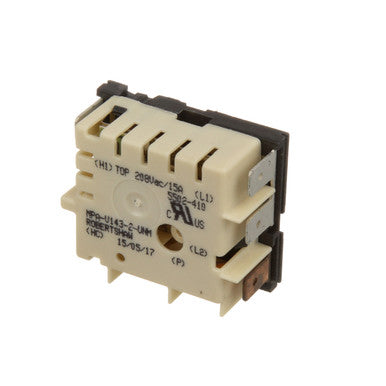

208V Infinite Switch with Palnut Mount for Delfield, Seco Select – Replaces Delfield 90145
208V Infinite Switch with Palnut Mount for Delfield, Seco Select – Replaces Delfield 90145
- Part type: Switch
- Fits: Delfield, Seco Select
- Replaces: Delfield 90145
- Voltage (V AC): 208
- Aftermarket replacement · ships fast · 30-day returns
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
The 208V Infinite Switch with Palnut Mount is a Mavrik aftermarket replacement part for Delfield, Seco Select equipment, built to meet the original equipment specification. Replaces Delfield 90145 and 4 other OEM part numbers.
Manufacturer detail
Horizontal palnut mount, 22-1/2 % at Low setting 208V/15A )( infinite ), terminal( 5~ 1/4" TAB~ L1, L2(LINE), P(PILOT), H1, H2(LOAD) )~ contacts( N.O. ) ( rotary )~ markings( 1-10 )~ shaft( .187" flat up ) 2" dia, OFF-LO-2-6-HI, universal mount, W/ 5 inserts Delfield warmer DME30SW Seco warmer CW-1200. All type 77 DROP-IN units. Upselling: 2" dia, OFF-LO-2-6-HI, universal mount, W/ 5 inserts (5 ea. Blue, green, gray, red, yellow).
Specifications
| Voltage (V AC) | 208 |
|---|---|
| Length (in) | 2 |
| Width (in) | 2 |
| Height (in) | 2 |
| Sold As | Each |
Replaces these part numbers
- Delfield: 90145, 0083150, SEP90145, 713(208V)
- Seco Select: 713B, 0083150
Common questions
- Is this a genuine OEM part?
- No. This is a Mavrik aftermarket replacement part built to meet the original equipment specification. It is not sold or warranted by the OEM.
- Will it fit my machine?
- Match the specifications and the part number you are replacing against the table above. Send us your model and serial number and we will confirm before you buy.
- How fast does it ship?
- Ships from Howdy Brewer with same-day dispatch on in-stock orders placed before the daily cutoff, and a 30-day return window.
