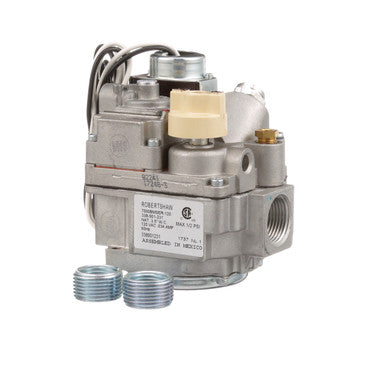

120 Volt Natural Gas Combination Safety Valve for Vulcan Hart, Pitco, Frymaster – Replaces Vulcan Hart 470841-3
120 Volt Natural Gas Combination Safety Valve for Vulcan Hart, Pitco, Frymaster – Replaces Vulcan Hart 470841-3
- Part type: Gas Combination Valve
- Fits: Vulcan Hart, Pitco, Frymaster
- Listed fitment: 47 listed models
- Replaces: Vulcan Hart 470841-3
- Gas Type: Natural Gas
- Heating Output (BTU): 300000
- Aftermarket replacement · ships fast · 30-day returns
All compatible models
47 models· 4 seriesVerify your unit's model number on the data plate matches one below before ordering.
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
The 120 Volt Natural Gas Combination Safety Valve is a Mavrik aftermarket replacement part for Vulcan Hart, Pitco, Frymaster, Anets equipment, built to meet the original equipment specification. It is listed to fit 47 models across 4 manufacturers. Replaces Vulcan Hart 470841-3 and 28 other OEM part numbers.
Manufacturer detail
Nat gas safety, 3/4" FPT IN/OUT, 300.000 BTU, (2) 3/4" x 1/2" reducer bushings, 120 vac actuator, blk & wht wires, W/ECO slotted thermopile magnet, model 7000 BMSER-120 Brass pile holding nut, 3/8-32 thread, for magnet, 750MV, 500MV under load , Frymaster fryer MAC(50,150,250,350), MJ(41,41E,45), MJCF, mjcfe. SERIES: fm, MAC50.FMCFE, fmcfec, J3F, J65X, jcfx, KJ3FC, Pitco fryer gas fryers which are rated @ over 100,000 BTU.
Specifications
| Gas Type | Natural Gas |
|---|---|
| Heating Output (BTU) | 300000 |
| Inlet (in) | 0.75 |
| Outlet | 3/4 FPT IN/OUT |
| Terminals | Wire leads |
| Voltage (V AC) | 120 |
| Length (in) | 5.75 |
| Width (in) | 5 |
| Height (in) | 4 |
| Sold As | Each |
Fits these models
- Anets: GPC18, MX SERIES, MX14
- Frymaster: 7000BMSER-120, MAC150, MAC250, MAC350, MAC50, MJ41, MJ41E, MJ45, MJCF
- Pitco: 12, 14, 14R, 18-2WKSUFM, 18WKS, 24P, 24RUFM, 34FF, 34P, 7, DD24RUFM, MX-14E and 2 more
- Vulcan Hart: 1GRC35, 1GRC65, 1GRD45, 1GRS35, 1GRS45, 1GRS65, 3GR45MF, GR35F, GR65F, GRC35F, GRC45F, GRC65F and 9 more
Replaces these part numbers
- Anets: P5045650, P5045651, P5045650-C, P5045651-C
- Dean: 8061452, 8070308, 806-1452, 807-0308, 8061452SP, 806-1452SP
- Frymaster: 8061452, 8070308, 806-1452, 807-0308, 8061452SP, FM8061452, FM8070308, 806-1452SP
- Magikitch'n: P5045650, P5045651, P5045657, MKP5045650, MKP5045651, MKP5045657
- Pitco: P5045650, P5045651, P5045657, 5045651-C, P5045650-C, P5045651-C, PTP5045650, PTP5045651
- Uline Refrigeration: 700-470
- Vulcan Hart: 470841-3, VH470841-3
Common questions
- Is this a genuine OEM part?
- No. This is a Mavrik aftermarket replacement part built to meet the original equipment specification. It is not sold or warranted by the OEM.
- Will it fit my machine?
- This part is listed for 47 models across 4 manufacturers — see the fitment list above. If your model is not listed, send us your model and serial number and we will confirm before you buy.
- How fast does it ship?
- Ships from Howdy Brewer with same-day dispatch on in-stock orders placed before the daily cutoff, and a 30-day return window.
