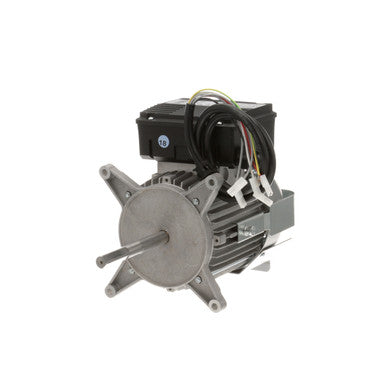

115V Two Speed Motor Assembly for Blodgett – Replaces Blodgett 37022
115V Two Speed Motor Assembly for Blodgett – Replaces Blodgett 37022
- Part type: Motor
- Fits: Blodgett
- Listed fitment: 7 listed models
- Replaces: Blodgett 37022
- Horsepower (HP): .75
- Rotation: CW (looking from back of motor toward the front)
- Aftermarket replacement · ships fast · 30-day returns
All compatible models
7 models· 1 seriesVerify your unit's model number on the data plate matches one below before ordering.
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
The 115V Two Speed Motor Assembly is a Mavrik aftermarket replacement part for Blodgett equipment, built to meet the original equipment specification. It is listed to fit 7 models across 1 manufacturer. Replaces Blodgett 37022 and 3 other OEM part numbers.
Manufacturer detail
{ old style }BLOWER motor, 2 speed 115V, .75/.21 HP, 1 ph, 1725/1140 RPM, 9/4 amps, Y56Z frame, 5/8" x 5" shaft W/2 flats, 6-1/4" ctrs on mtg holes 34" armored cable { new style } 115/120V, 1 ph, 2 speed, RPM 1680/1120 0.60/0.17 HP, 7/3.6 amp, 60 HZ CW rotation looking from back of motor toward the front follow installation procedures provided with motor Blodgett Oven shog (before 11-05-05)~ AC500XCEL.
Specifications
| Horsepower (HP) | .75 |
|---|---|
| Rotation | CW (looking from back of motor toward the front) |
| Voltage (V) | 115/120V |
| Size | Y56Z frame |
| Center | 6-1/4 centers on mounting holes |
| Voltage (V AC) | 115V |
| Length (in) | 19 |
| Width (in) | 10 |
| Height (in) | 10 |
| Sold As | Each |
Fits these models
- Blodgett: B36N-GRAD, BDO-G, BE2136, BG2136, DFG-100 XCEL, SHO-100-G, SHO-G
Replaces these part numbers
- Blodgett: 34111, 37022, BL34111, BL37022
Common questions
- Is this a genuine OEM part?
- No. This is a Mavrik aftermarket replacement part built to meet the original equipment specification. It is not sold or warranted by the OEM.
- Will it fit my machine?
- This part is listed for 7 models across 1 manufacturer — see the fitment list above. If your model is not listed, send us your model and serial number and we will confirm before you buy.
- How fast does it ship?
- Ships from Howdy Brewer with same-day dispatch on in-stock orders placed before the daily cutoff, and a 30-day return window.
