1/2 HP 115V Blower Motor for Southbend – Replaces Southbend 1175567
1/2 HP 115V Blower Motor for Southbend – Replaces Southbend 1175567
- Part type: Motor
- Fits: Southbend
- Listed fitment: 16 listed models
- Replaces: Southbend 1175567
- Horsepower (HP): .5/.25 HP
- Number of Terminals: 4
- Aftermarket replacement · ships fast · 30-day returns
All compatible models
16 models· 1 seriesVerify your unit's model number on the data plate matches one below before ordering.
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.

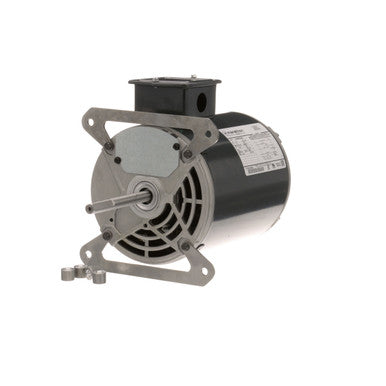

The 1/2 HP 115V Blower Motor is a Mavrik aftermarket replacement part for Southbend equipment, built to meet the original equipment specification. It is listed to fit 16 models across 1 manufacturer. Replaces Southbend 1175567 and 10 other OEM part numbers.
Manufacturer detail
[ 115V, 50/60HZ ] [ .5/.25 HP, ] [1P ] [1725/1140 RPM ] [7.2/4.5AMP ] [CW rotation from the rear of the motor ] frame 56Z, 2 speed. [ 1/2" x 4-1/2" shaft W/ 2 FLATS] White common black Power to fan Switch hi red Power to fan Switch lo BLUE/PURPLE or BROWN/BROWN to centrifugal Switch. If Oven does not have centrifugal Switch then wire together W/ wire nut. If only using for one speed, then wire nut red wire. Southbend gb & gs after S/N 93K. COT-1361C, slgs.
Specifications
| D Stem Size (in) | 0.5 |
|---|---|
| Horsepower (HP) | .5/.25 HP |
| Number of Terminals | 4 |
| Rotation | CW rotation from the rear of the motor |
| Voltage (V AC) | 115V |
| Voltage (V) | 115 |
| Length (in) | 10.4 |
| Width (in) | 8 |
| Height (in) | 7 |
| Sold As | Each |
Fits these models
- Southbend: 170A, 170D, 171A, 171D, 270A, 270D, 300 SERIES, 400 SERIES, B SERIES, CO302M-94A, G SERIES, P32D-171 and 4 more
Replaces these part numbers
- Southbend: 1175567, 1175571, 1177452, 1188523, 4440300, 4440367, SOU1175567, SOU1175571
Common questions
- Is this a genuine OEM part?
- No. This is a Mavrik aftermarket replacement part built to meet the original equipment specification. It is not sold or warranted by the OEM.
- Will it fit my machine?
- This part is listed for 16 models across 1 manufacturer — see the fitment list above. If your model is not listed, send us your model and serial number and we will confirm before you buy.
- How fast does it ship?
- Ships from Howdy Brewer with same-day dispatch on in-stock orders placed before the daily cutoff, and a 30-day return window.
