The Analox Ax60+ Commercial CO2 Detector unit is designed to detect the presence of carbon dioxide for the protection of people in confined spaces. Installing gas detection sensors will help to comply with IFC, NFPA55, NBIC, OSHA, and CGA all refer to installing a carbon dioxide detection or monitoring system to ensure the working environment is safe at all times.

Ax60+ is a wall-mountable multi-gas monitor for detecting carbon dioxide with an option for monitoring oxygen, providing a flexible and customizable solution. The CO2 and O2 sensors are interchangeable and can be fully integrated as part of a multi-point, multi-gas detection and alarm system. Ax60+ CO2 Alarm setpoints are now pre-configured to 0.5% 8 hr TWA, 0.5%, 1.5%, and 3.0% making it ready to install out of the box.

FEATURES

Designed for harsh restaurant, brewery, and bar environments
Quick, ‘out of the box’ installation
User-configurable alarms, setpoints, and relay outputs
Fitted with audio and visual alarms
Excess levels of carbon dioxide are detected and the alarm is triggered
Relay 'failsafe options'
Safe mode indicator (green light flashing only)
Capable of expanding to four (4) sensors and eight (8) CO2 alarms
Central display unit for remote operation and control

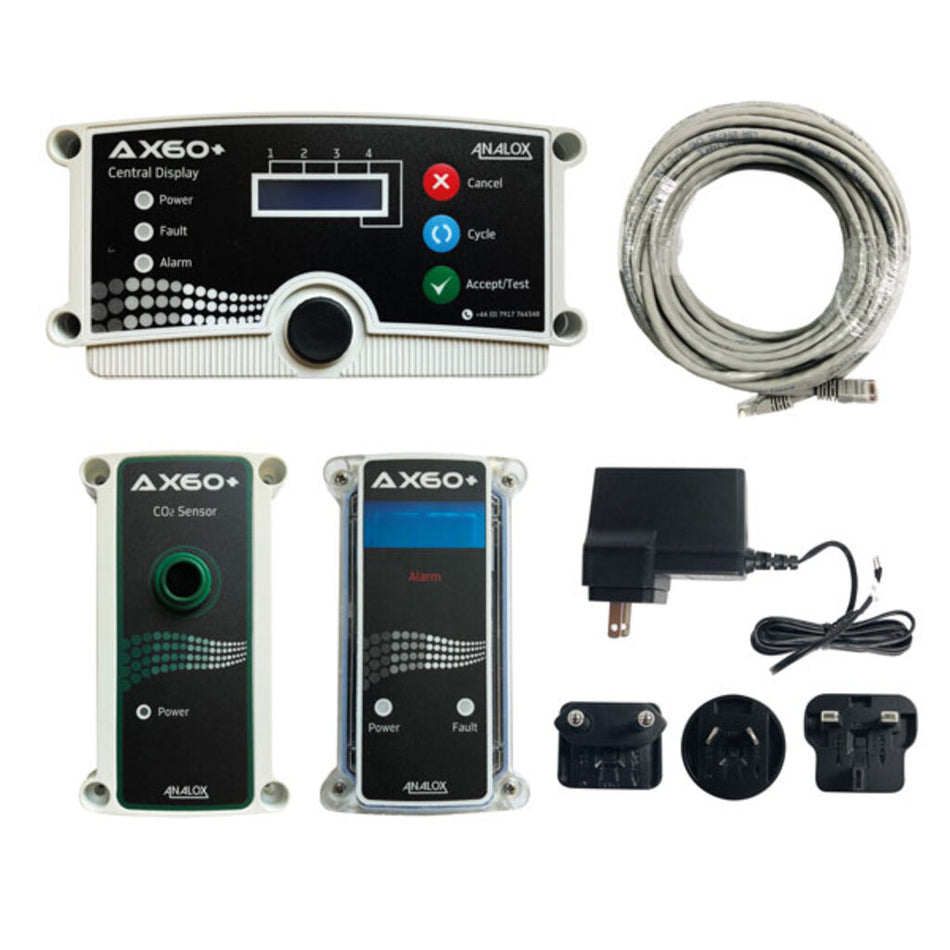

Kit includes a display unit, internal sensor, and alarm
Meets NFPA, IFC, and OSHA requirements. UL Approved.

Name	Value
Walk-in Cooler Sensor	2-7/8" x 6-5/8" x 3"
Strobe Repeater	2-7/8" x 6-5/8" x 1-3/4"
Percentage Range Present (CO2)	0.1 to 5% CO2
Percentage Range Present (O2)	0.1 to 25% O2
Response Time	Less than 30 seconds
Power Supply Input	100-200V: Output, Less than 24V
Type	System
Includes	>100cd Internal Strobe
Features	Minimum 80dbA Alarm
Specifications	Walk-in Cooler Sensor
Operating Temperature	23˚F to 122˚F
Height	4-3/8"
Width	6-7/8"
Depth	1-3/4"
Power Source	110 V
Brand	Analox
