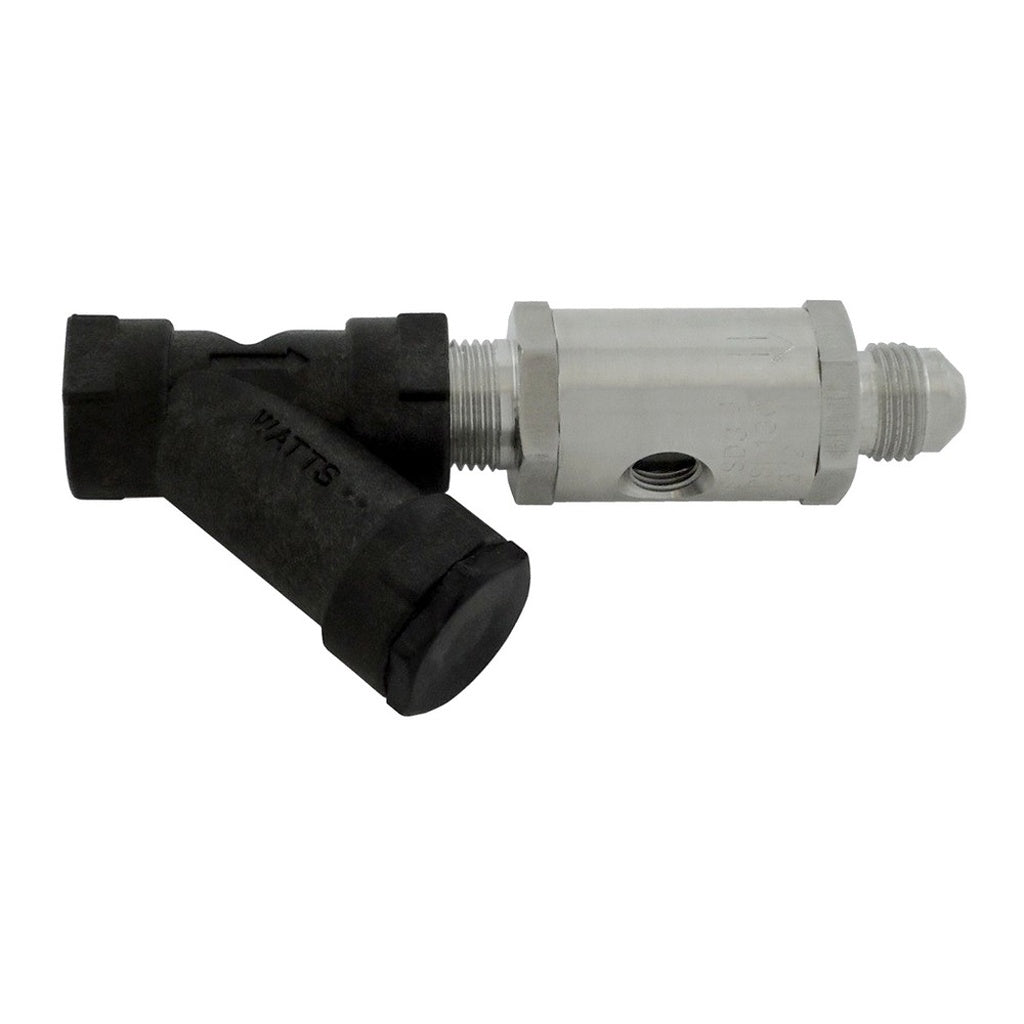

3/8" FPT x 3/8" MFL Watts SD3 Backflow Preventer - Stainless Steel Dual Check Valve with Strainer
3/8" FPT x 3/8" MFL Watts SD3 Backflow Preventer - Stainless Steel Dual Check Valve with Strainer
- Certified CO2 Protection: The Watts SD3 backflow preventer is ASSE 1022 certified, specifically designed to prevent the backflow of carbonated water into copper water lines.
- Dual Check Reliability: Features a dual check valve mechanism for redundant protection, ensuring maximum safety for commercial beverage systems.
- Integrated Mesh Strainer: The built-in strainer captures particulates before they reach the valve seats, significantly extending the life of your beverage dispense equipment.
- Corrosion Resistant Construction: Built with high-grade 316 stainless steel to withstand the acidic nature of carbonated water and harsh commercial environments.
- Industry Standard Connections: Equipped with a 3/8" FPT inlet and 3/8" MFL outlet for easy integration into standard soda carbonator and espresso machine water lines.
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
The Watts SD3 is a high-performance atmospheric vent dual check backflow preventer specifically engineered to protect the potable water supply from carbon dioxide (CO2) and carbonated water migration. Constructed from 316 stainless steel, this valve is designed for continuous pressure applications and features an integrated 100-mesh strainer to protect internal components from debris, making it an essential safety component for soda fountains, post-mix systems, and commercial beverage dispensers.
- Inlet Connection: 3/8" Female NPT (FPT)
- Outlet Connection: 3/8" Male Flare (MFL)
- Material: 316 Stainless Steel Body for superior corrosion resistance
- Protection Type: Dual Check with Atmospheric Vent
- Strainer: Integrated 100-mesh stainless steel screen
- Compliance: ASSE 1022 Certified for beverage dispensing equipment
- Max Pressure/Temp: 150 PSI at 130°F (54°C)
More from Watts
Shop all Watts →Recently viewed
Searches related to this
Frequently asked questions
Can the SD3 be mounted vertically?
Yes. Watts states it can be installed horizontally or vertically, with flow up or down, as long as the arrow on the valve body points in the direction of flow. Keep the strainer and valve accessible for service.
What does discharge from the vent port mean?
The atmospheric port is there to show that the second check has failed or fouled. Watts says to connect a vent discharge line and run it to a safe place of disposal with adequate ventilation, and it requires an annual inspection of the strainer and the backflow preventer.
Can I run copper tubing after this valve?
Not on a carbonated system. Watts states that copper tubing shall not be used on the downstream side of the backflow preventer in carbonated systems; it allows copper only on non-carbonated applications such as coffee makers.
