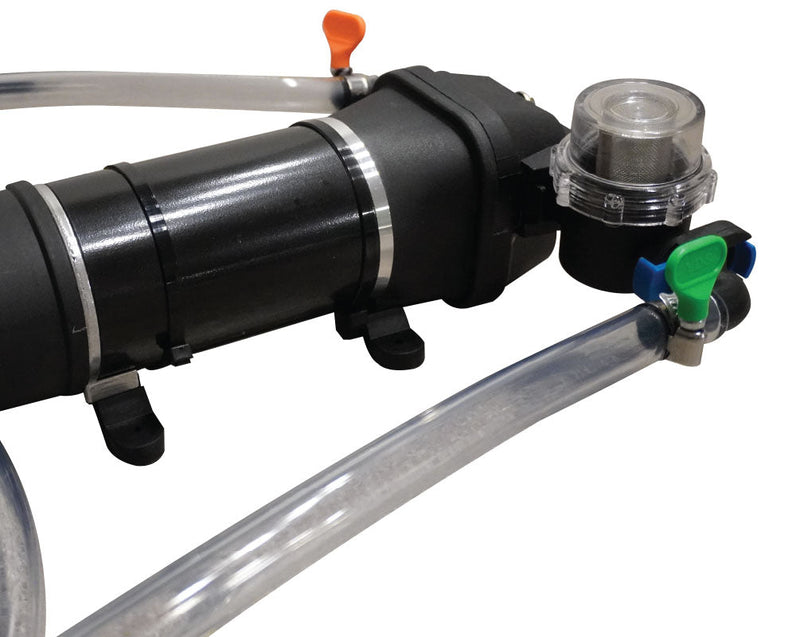

Variable Flow Self Priming Transfer Pump (With Pre-Filter)


$227.26 & FREE Shipping.
Holiday Sale
$223.89 Save $-3.37 (-2%)
List Price: $223.89
You save: $-3.37 (-2% off)

Earn 227 points on this item.
Earn 227 points on this item.

$227.26

In Stock.

Deliver to area


- +


Return policy: Eligible for Return, Refund or Replacement within 30 days of receipt with Pre-Paid shipping labels.
Have a question?
Talk to a brew guru now.

Live chat with us | Email us

Quick Info

Our Super Transfer Pump is quick, compact and portable.

It is easy to install anywhere, since it comes with mountable shock-absorbing feet.

This self-priming unit is specially designed to save you time. You can transfer a 5-gallon carboy in approximately 1.5 minutes.

  • It flows at a rate between 1 to 3 GPM (gallons per minute.
  • Has an on/off switch with variable flow adjustment dial and a 5' electrical cord.
  • Comes with a pre-filter to prevent clogging of the pump head.
  • Comes with hoses, clamps and fittings.
  • BPA Free and made with Food Grade Materials.
  • Our new prefilter is easier to remove by hand (no tools required), easier to inspect when is clogged and does not affect at all the transfer speed/rate, less mess when you clean the screen on the go (as the liquid remains on the prefilter body) and creates cero turbulence on the wine (due to smaller prefilter surface that is a downfall).

Product Overview

The perfect pump for use after fermentation.

Why this is a Great Pump:

  • Self-Priming
  • Heat Tolerant materials to 212°F when used with Silicone tubing
  • Speed Control!
  • Gentle Diaphragm Design

Self Priming: This pump is capable of pumping gasses, meaning that pumping does not require priming! This makes transfers between carboys or kegs incredibly easy. Simply put both inlet and outlet hoses in a bucket of sanitizer and run the pump for a minute. You're then good to transfer your beer with your sanitized pump!

PreFilter This pump comes with a built in prefilter. This is something which is almost necessary on diaphragm pumps, as the diaphragm itself is very delicate, and can be ruined by small solids. The prefilter included on this pump will work to keep solids out of the pump, extending the working life of the unit.

Heat Tolerant: All materials used in the construction of the pump tolerate temperatures up to 212°F when used with heat tolerant tubing such as silicone. Because the pump comes with vinyl tubing you would need to replace that tubing with silicone.

Speed Control: Perhaps the most unique feature is a dial control to adjust flow from 0 to 3 gallons per minute. Use it to send your wort from the kettle to the fermenter, or even after fermentation to send beer through a plate filter (such as our FIL45).

Gentle on your Beer: A diaphragm pump works by moving beer through one pulsating diaphragm into the next. It is a design that is very gentle on the liquid being pumped.

When this pump was first introduced to us, we loved the idea, but had concerns that the speed control would compromise the longevity of the motor. We build much larger pumps (our ChunkyPumps for commercial wineries) and normally you need a $700 frequency drive to control motor speed. However, we kept in touch with the manufacturer and after three years in which he has not had any issues, and after our own testing, we are now sold this pumps performs as promised. The manufacturer does offer a 1 year warranty as well.

  • This pump comes with 1/2" barbed ports for easy connectivity.
  • Comes with 6' tubing on both sides.
  • 110 Volts, 0.5 Amp, 60 Hz.

Our Super Transfer Pump is quick, compact and portable.

It is easy to install anywhere, since it comes with mountable shock-absorbing feet.

This self-priming unit is specially designed to save you time. You can transfer a 5-gallon carboy in approximately 1.5 minutes.

  • It flows at a rate between 1 to 3 GPM (gallons per minute.
  • Has an on/off switch with variable flow adjustment dial and a 5' electrical cord.
  • Comes with a pre-filter to prevent clogging of the pump head.
  • Comes with hoses, clamps and fittings.
  • BPA Free and made with Food Grade Materials.
  • Our new prefilter is easier to remove by hand (no tools required), easier to inspect when is clogged and does not affect at all the transfer speed/rate, less mess when you clean the screen on the go (as the liquid remains on the prefilter body) and creates cero turbulence on the wine (due to smaller prefilter surface that is a downfall).

Product Overview

The perfect pump for use after fermentation.

Why this is a Great Pump:

  • Self-Priming
  • Heat Tolerant materials to 212°F when used with Silicone tubing
  • Speed Control!
  • Gentle Diaphragm Design

Self Priming: This pump is capable of pumping gasses, meaning that pumping does not require priming! This makes transfers between carboys or kegs incredibly easy. Simply put both inlet and outlet hoses in a bucket of sanitizer and run the pump for a minute. You're then good to transfer your beer with your sanitized pump!

PreFilter This pump comes with a built in prefilter. This is something which is almost necessary on diaphragm pumps, as the diaphragm itself is very delicate, and can be ruined by small solids. The prefilter included on this pump will work to keep solids out of the pump, extending the working life of the unit.

Heat Tolerant: All materials used in the construction of the pump tolerate temperatures up to 212°F when used with heat tolerant tubing such as silicone. Because the pump comes with vinyl tubing you would need to replace that tubing with silicone.

Speed Control: Perhaps the most unique feature is a dial control to adjust flow from 0 to 3 gallons per minute. Use it to send your wort from the kettle to the fermenter, or even after fermentation to send beer through a plate filter (such as our FIL45).

Gentle on your Beer: A diaphragm pump works by moving beer through one pulsating diaphragm into the next. It is a design that is very gentle on the liquid being pumped.

When this pump was first introduced to us, we loved the idea, but had concerns that the speed control would compromise the longevity of the motor. We build much larger pumps (our ChunkyPumps for commercial wineries) and normally you need a $700 frequency drive to control motor speed. However, we kept in touch with the manufacturer and after three years in which he has not had any issues, and after our own testing, we are now sold this pumps performs as promised. The manufacturer does offer a 1 year warranty as well.

  • This pump comes with 1/2" barbed ports for easy connectivity.
  • Comes with 6' tubing on both sides.
  • 110 Volts, 0.5 Amp, 60 Hz.
