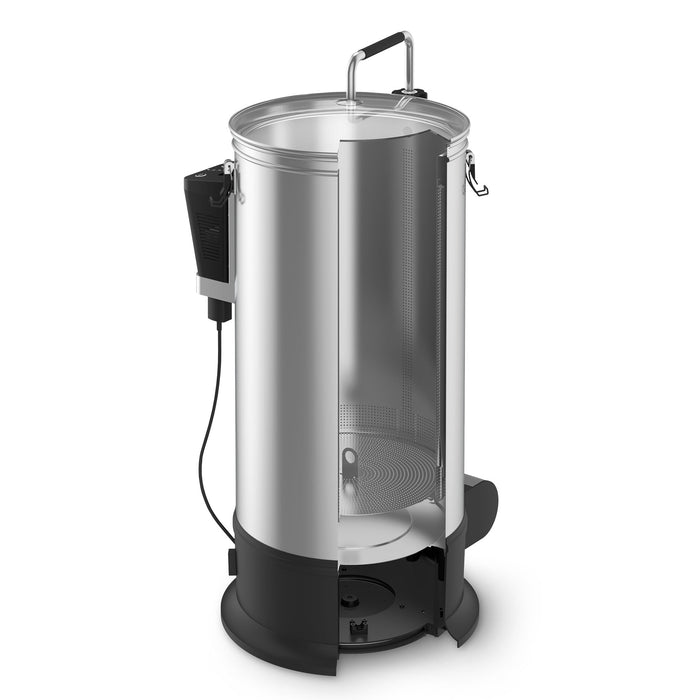

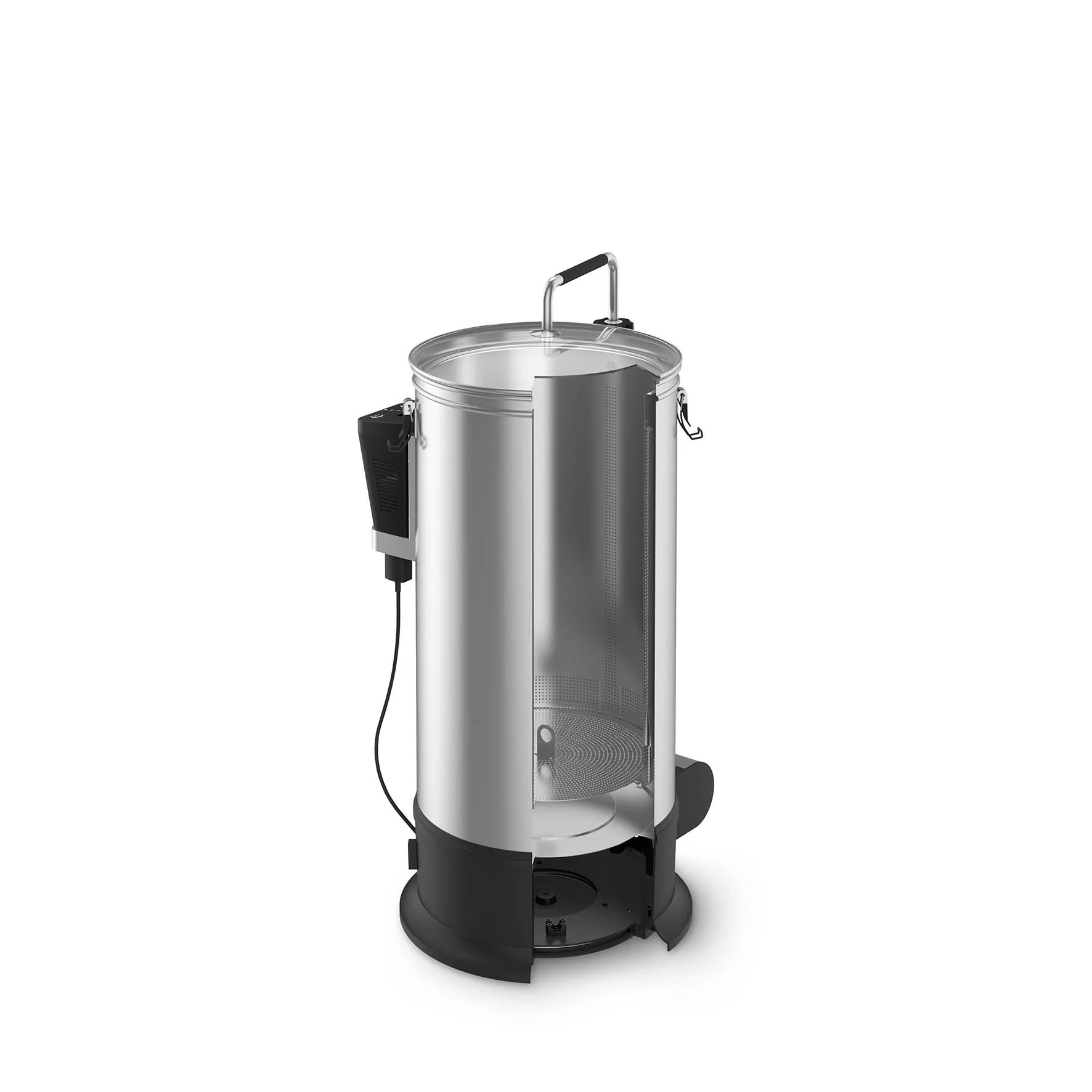

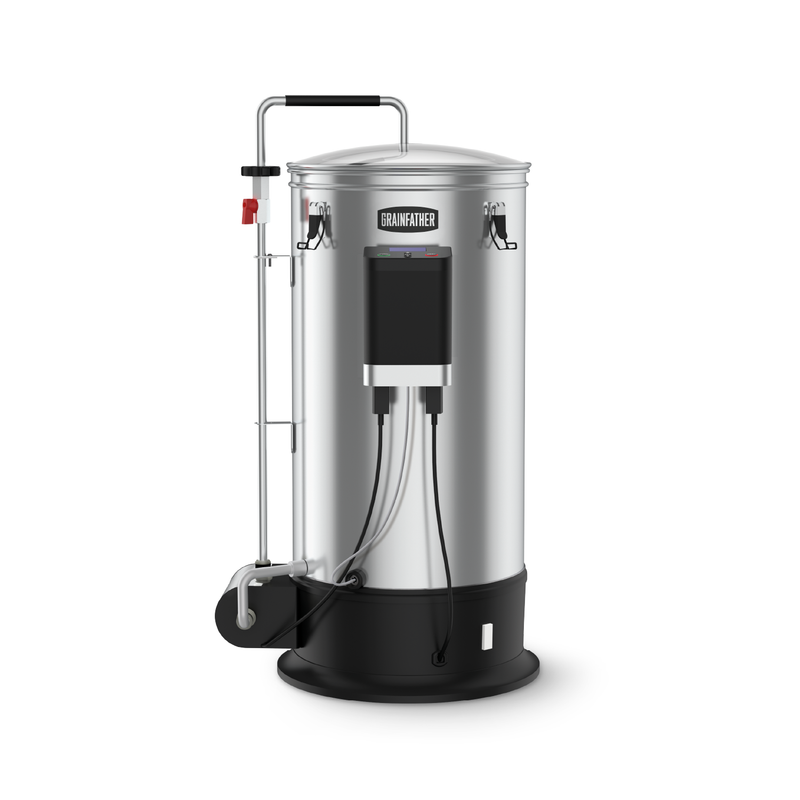

Compact and simple to use, with a small footprint for brewing indoors the Grainfather G30³ v3 provides a home brewery system that with superior design, innovative features and the latest technology, allows you to brew professional quality craft beer at home.

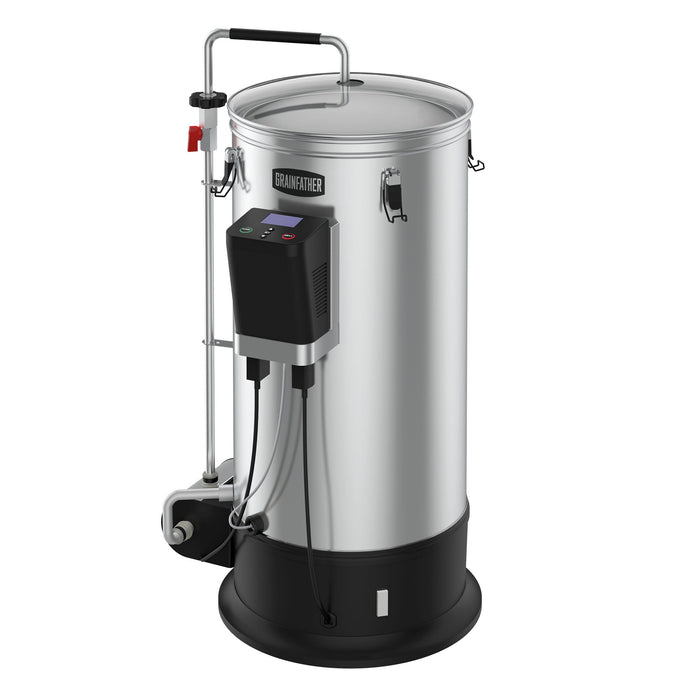

The Grainfather G30 v3 is your all in one brewing system, to make beer from grain. The sleek look, user friendly, intuitive design, and innovative features, make this your perfect brewing companion for both experienced and beginner all grain brewers. It is made from high quality 304 grade stainless steel with a 8 US Gal capacity, designed to make up to 6 US Gal of beer from one brew.
Features
G30v3:
- Sleek 304 grade stainless steel body
- Manage your brew day from your mobile device via Bluetooth using the Grainfather App
- Get a more reliable connection between your G30v3 controller and the Grainfather App on your smartphone with the GCAST Bluetooth Wi-Fi Bridge (available separately)
- A robust magnetic drive pump for maximum brewing efficiencies

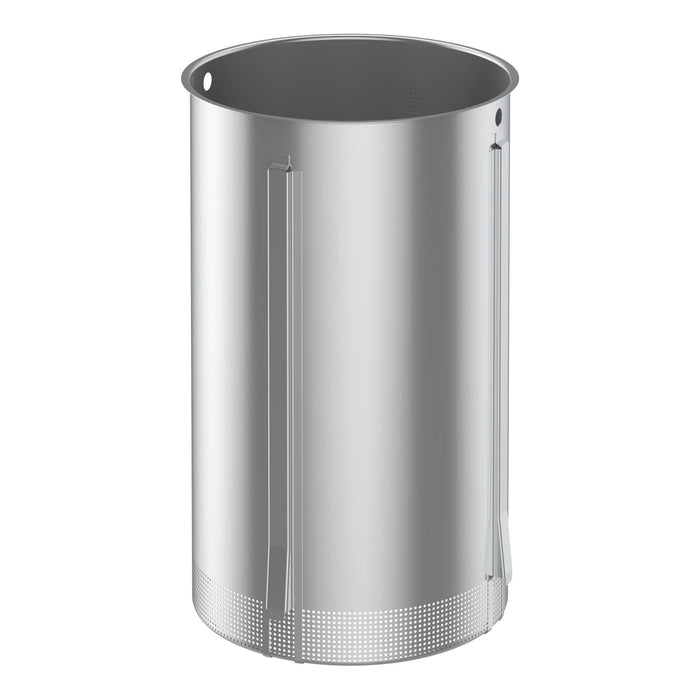

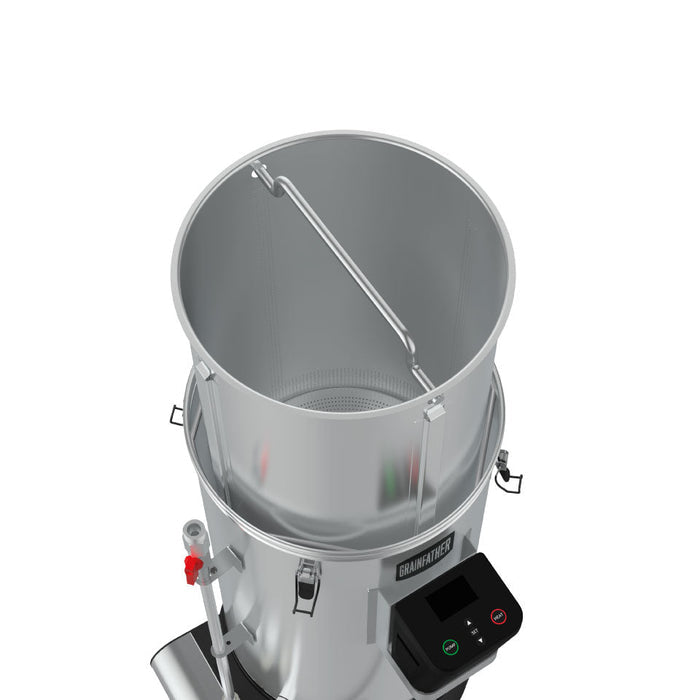

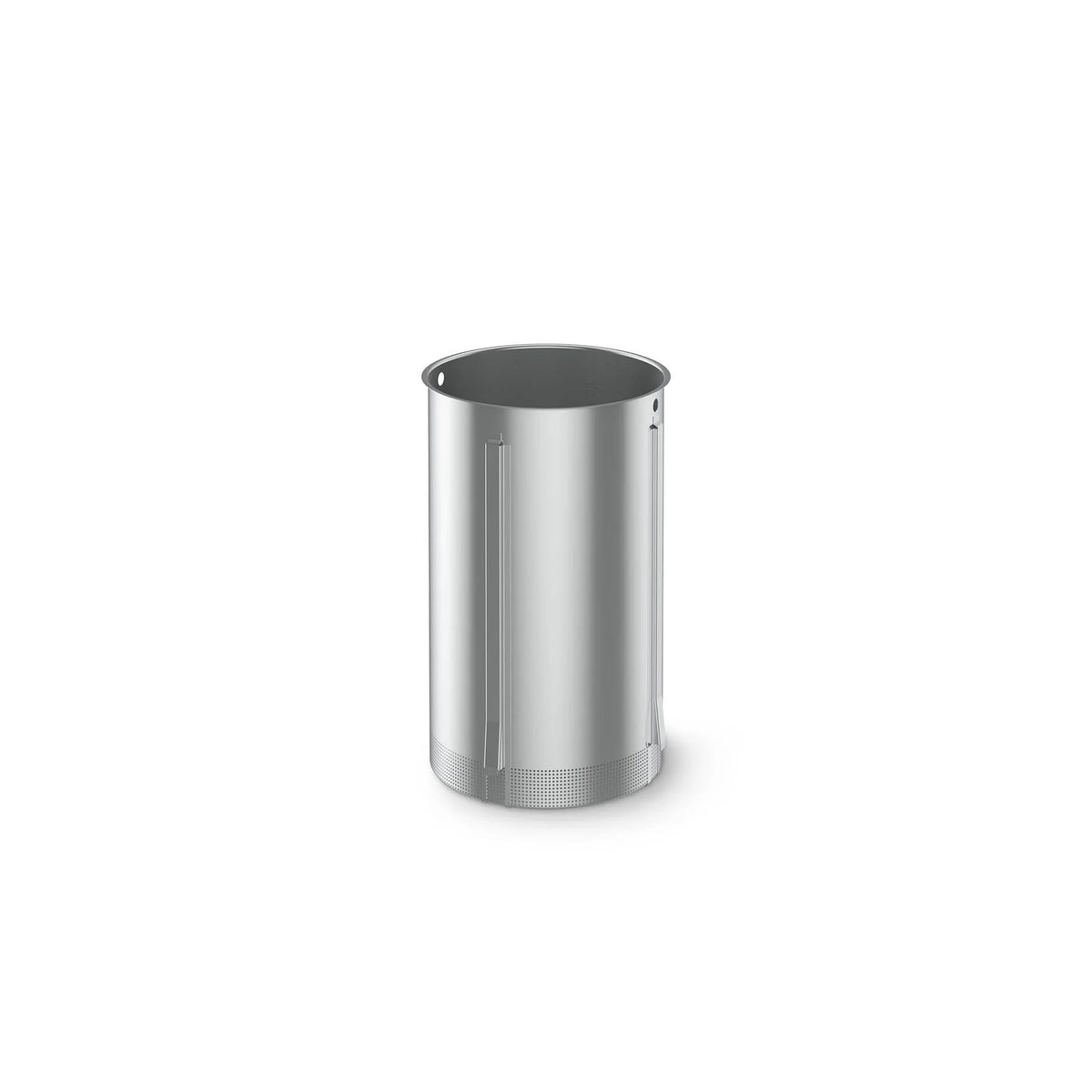

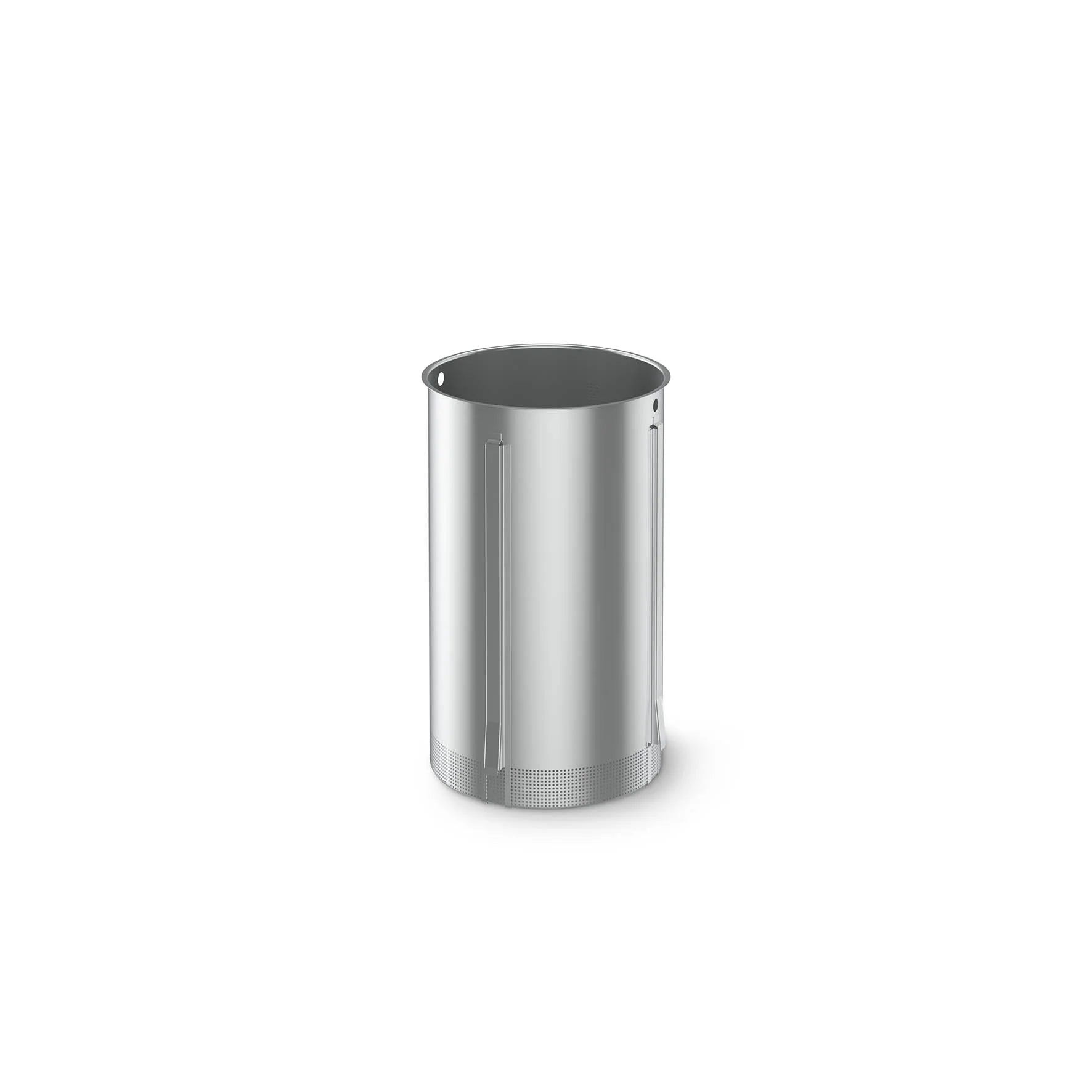

- Perforated grain basket negates the need for a top plate or additional pipework
- Auto reset switch avoids the need to get underneath the unit should an unexpected trip occur
- Efficient and sanitary brew transfer with the Counterflow Chiller (available separately)
- Unlock distilling capabilities with the Still Spirits Alembic Dome & Condenser (available separately)
- Backed by a 3-year warranty

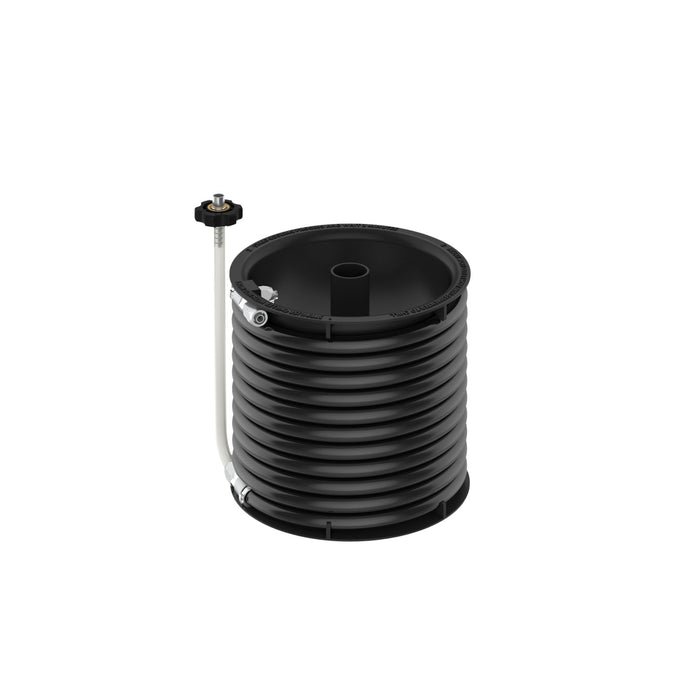

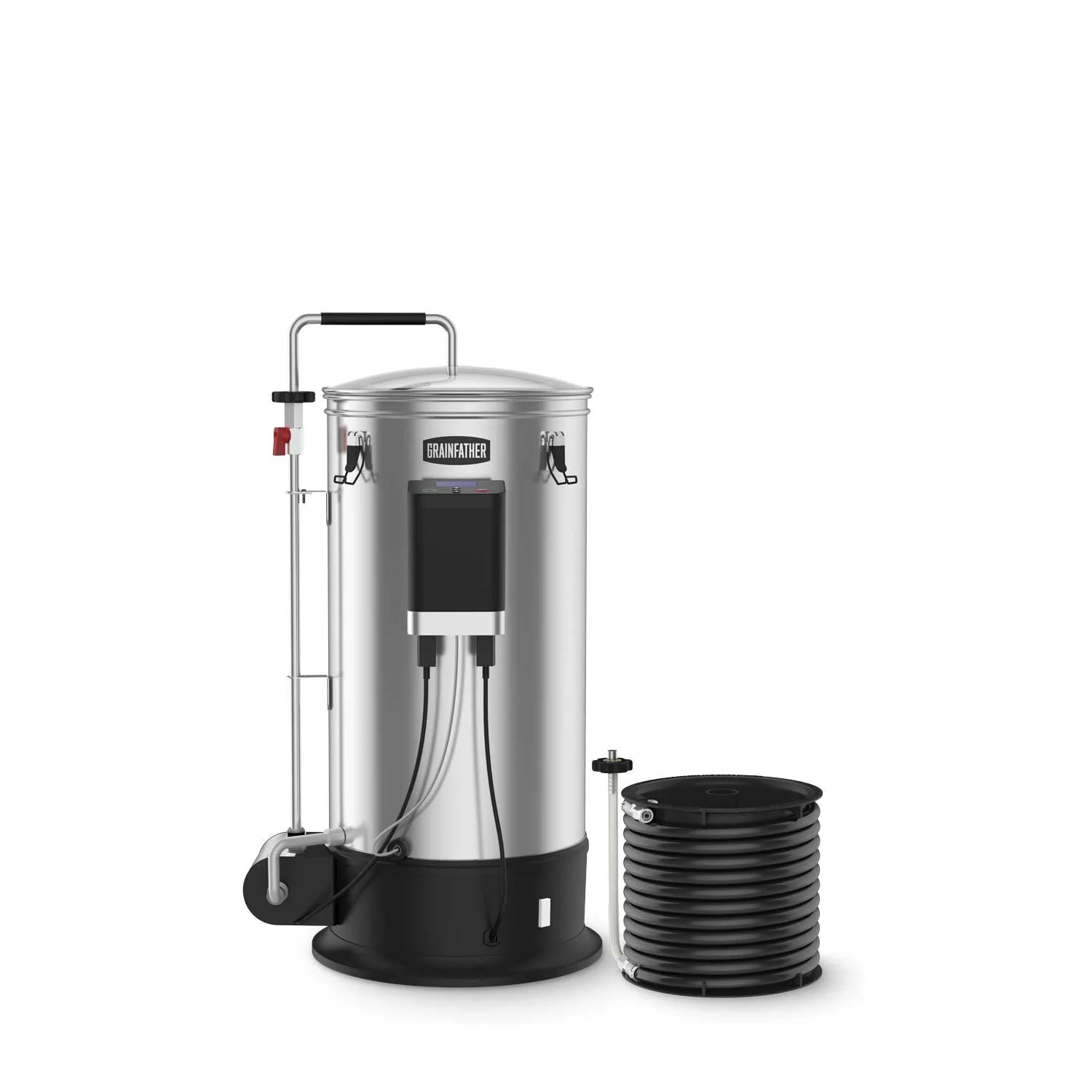

Counterflow Chiller:
- One-step transferring and cooling
- Fast cooling time to within 3C of source water temperature
- More sanitary transferring
- Copper inner coil for high heat exchange
- Compatible with a range of brewing systems
G30v3:
SIZE:
- Unit Size: 685 x 386 mm (27 x 15")
- Packaged Size: 460 x 490 x 760 mm
- Diameter: Inside-to-Inside 295 mm; Outer Lip-to-Outer Lip 310 mm
WEIGHT:
- Unit Weight: 14.6 kg (32 lb)
- Packaged Weight: 21 kg
STAINLESS STEEL THICKNESS:
- Boiler: 0.5 mm (0.02")
- Grain Basket: 0.6 mm (0.02")
MAX PREBOIL VOLUME:
BATCH VOLUME:
- Max: 25 L (7 US Gal)
- Min: 10 L (3 US Gal)
GRAIN BILL:
- Max: 8 kg (18 lb)
- Min: 1.5 kg (3.3 lb)
- *9 kg (20 lb) with top plate
POWER:
CONNECTIVITY:
- Bluetooth control standard
- Upgrade to Wi-Fi compatibility by pairing with GCAST
Counterflow Chiller:
- Copper inner coil
- Color-coded inlet/outlet hoses (red & blue)
- Red/Blue hose specs: ID 8 mm, OD 10 mm, 1.5 m length
- 1 m silicone hose: ID 10 mm (~3/8"), OD 11.5–12.5 mm
- Cooling performance: +5°C (+10°F) above source water at 3 L/min (0.8 US Gal/min)
PUMP (US):
- Power: 6W
- Heat Rating: 212°F
- Max Flow Rate: 3 US Gal/min
- Voltage: 110V
- Frequency: 60Hz
Grainfather G30v3 Includes:

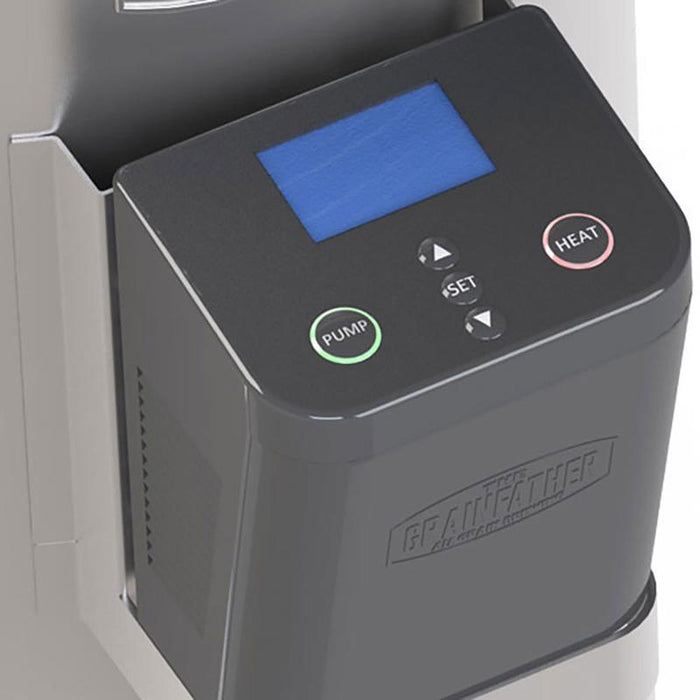

- Bluetooth controller
- NEW perforated grain basket

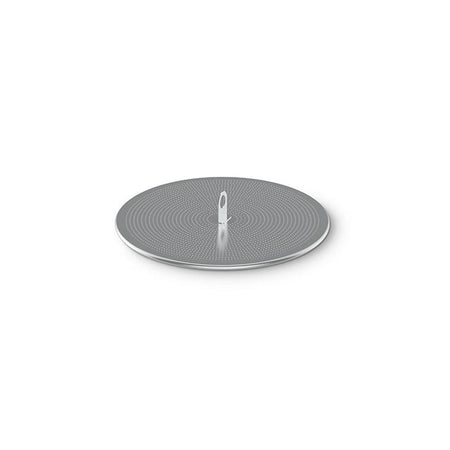

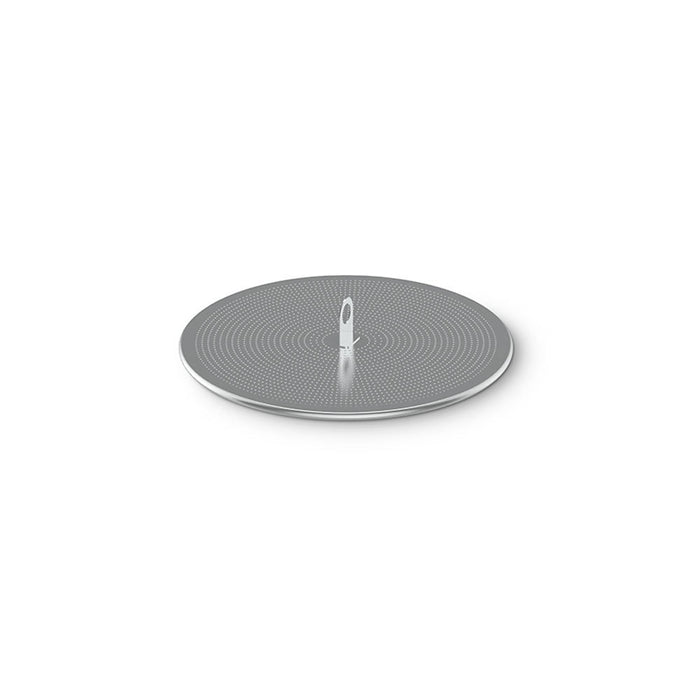

- Grain plate
- Lifting bar
- Glass lid
- Recirculation pipe
- Filter
- Hose fittings
- Built-in pump
Counterflow Chiller Includes:
- Water inlet and outlet hosing
- Wort inlet and outlet hosing
- G30 connector
- 9 mm right-angle hose barb connector for G40, G70, and other brew systems
- Tap adapter set for connecting to garden hoses and most faucets
