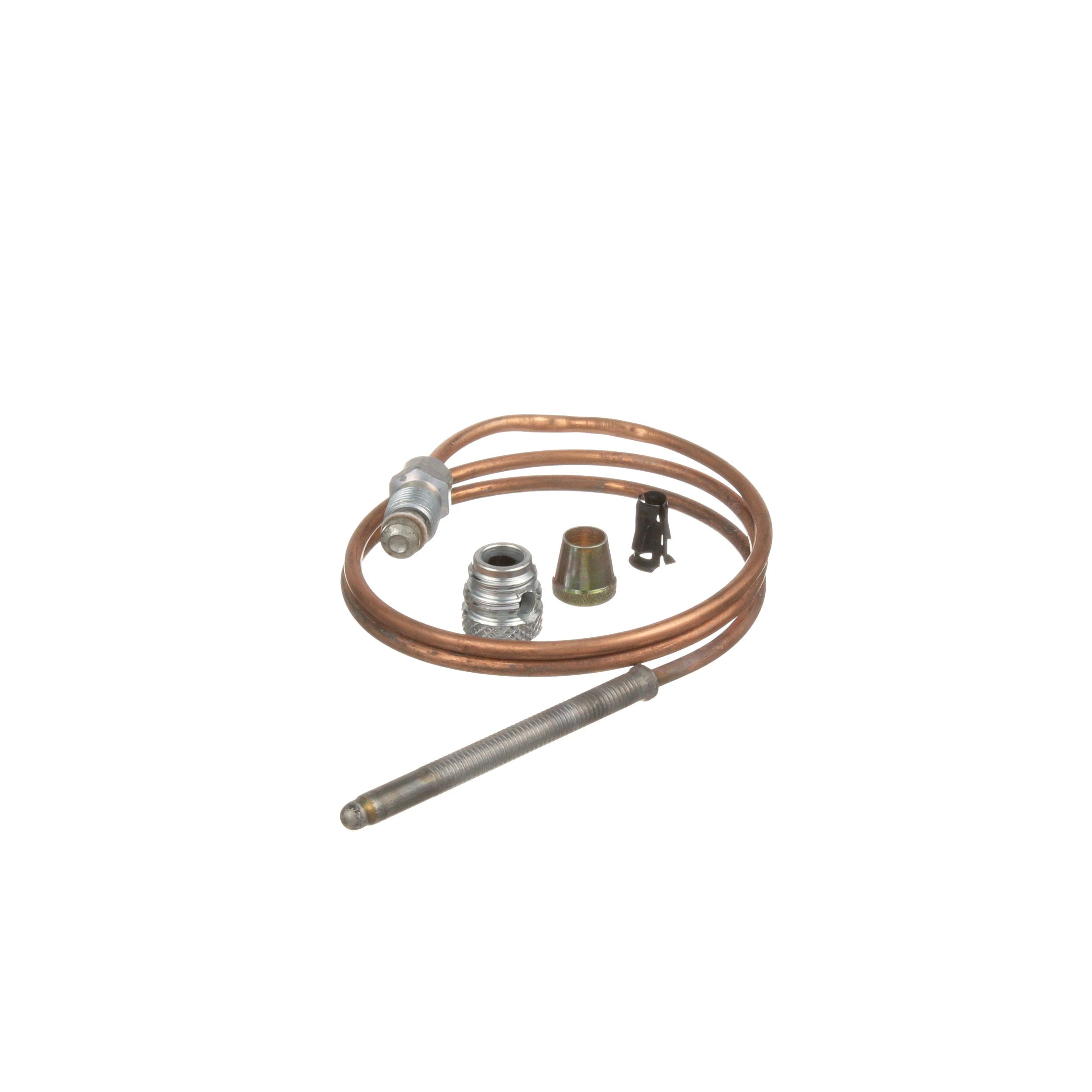

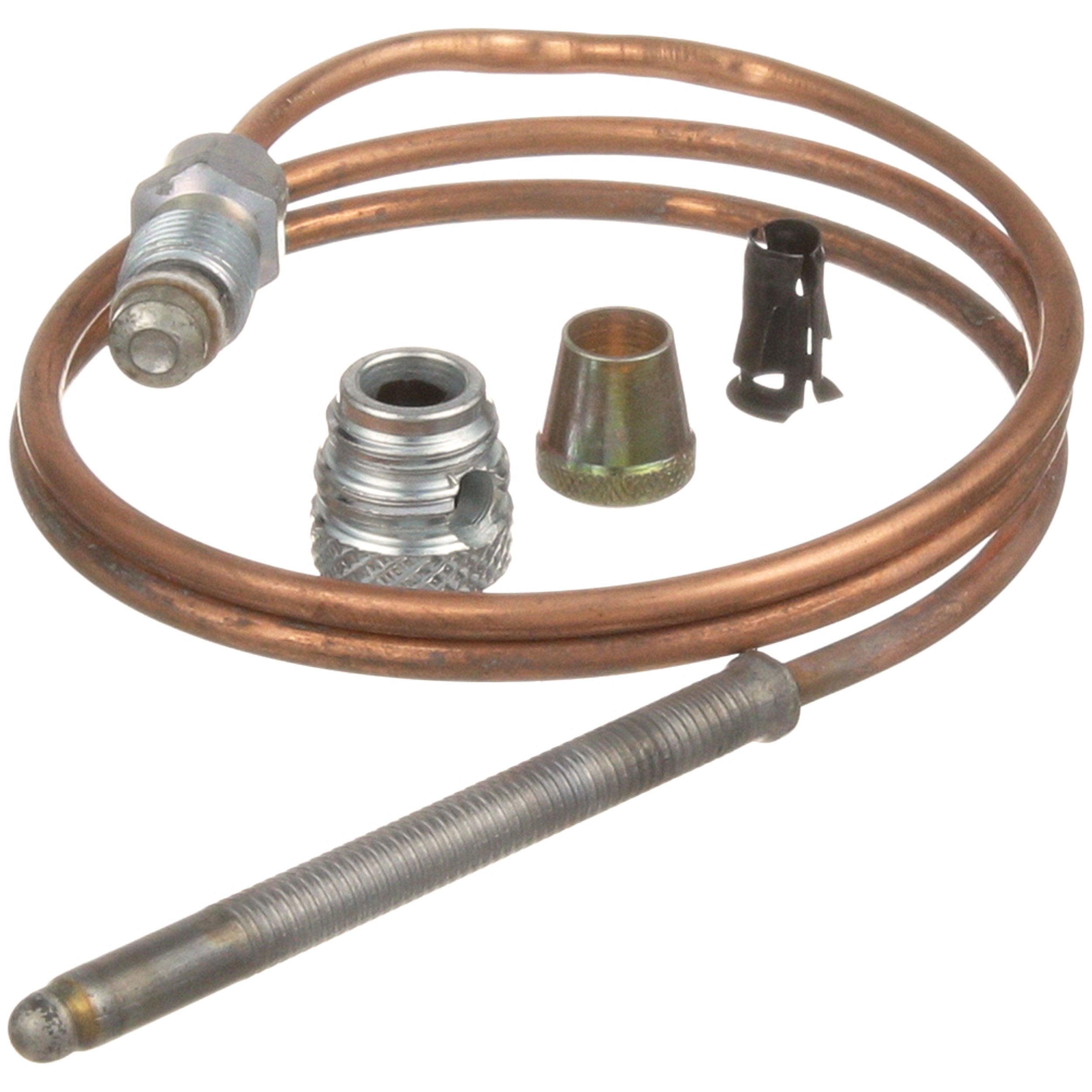

This Unicouple® 24 in Thermocouple replaces Blodgett Z1182580. It generates the millivolt signal that tells the gas valve the pilot is lit. Replacement is usually called for when you are seeing a pilot that lights but will not stay lit once the knob is released, or a burner that drops out during a cycle.

It also cross-references 9 manufacturer part numbers. Check the number on the part you are replacing, or your unit's model number, against the lists below before ordering.

Supplied as a single replacement unit.

1970 Series, 24" Thermocouple, 20-30 Mv Coaxial Thermocouple Threads = 11/32"-32. Blodgett Model? Jade Grill, Oven, Where Applicable. Magikitch'n Broiler Series: Rmb Magikitchn MKG(48,60,72) Pitco Fryer Export Units Only. Rankin Grill Series: Gt. Southbend Grill SGS-(24-1,36-1,48-1,60-1). Griddle Platinum Series (units With P Prefix) Thermocouple Adaptor, N107, Thermocouple Adaptor For Closed Circuit Test Of Thermocouples Using A Suitable Millivolt Test Meter. Analog Multi-tester Meter N112.

Cross-reference

• Blodgett: BLZ1182580, Z1182580
• Jade: 460-113-000, 4611300000
• Randell: 51221, GT-20
• Rankin Delux: 51221, GT-20
• Southbend: 1182580

Ordering by part number is the most reliable way to get the right part.
