Transformer - 115/230 To 12V for Bevles (CS36-CH3, CS72-CH13) - Replaces Bevles 784448
Transformer - 115/230 To 12V for Bevles (CS36-CH3, CS72-CH13) - Replaces Bevles 784448
- Listed fitment: 6 models across 1 brand
- Height (in.): 2
- Voltage (V AC): 115/230
- Width (in.): 2
All compatible models
6 modelsVerify your unit's model number on the data plate matches one below before ordering.
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
This Transformer - 115/230 To 12V replaces Bevles 784448. It steps voltage to the level the control circuit expects. Replacement is usually called for when you are seeing dead controls with power present upstream.
Listed fitment covers 6 models across 1 brand, including Bevles CS36-CH3, CS72-CH13, CS82-CH8. It also cross-references 7 manufacturer part numbers. Check the number on the part you are replacing, or your unit's model number, against the lists below before ordering. The specifications below are the published figures for this exact part number.
Supplied as a single replacement unit.

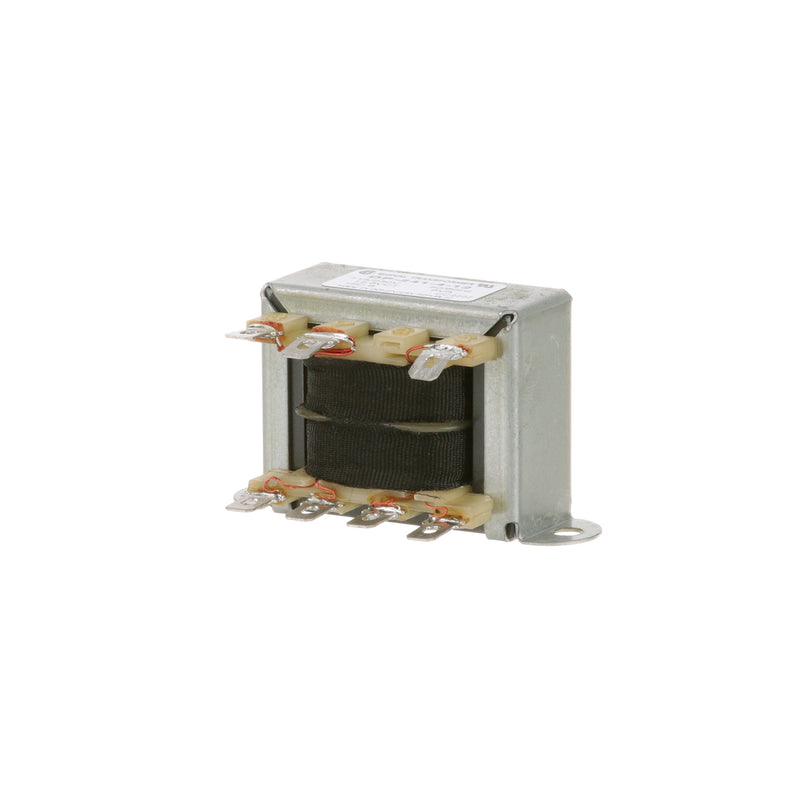

Transformer, Primary 115/230V, Secondary 12V, 6VA 50/60HZ, Exposed Coil, 2 Mount Holes, 2" Mt Ctrs, (7) 3/16" Tabs. Cres-cor Series C, H, Hc, R Convection & Retherm Ovens Pass-through Hot Cabinets Holding Cabinets.
Specifications
| Height (in) | 2 |
| VA Rating (VA) | 6 |
| Voltage (V AC) | 115/230 |
| Width (in) | 2 |
Listed fitment
- Bevles: CS36-CH3, CS72-CH13, CS82-CH8, PICA70-32-A CINNABON, PICA70-32-AED CINNABON, TENDER TOUCH CLASSIC
Cross-reference
- APW Wyott: 784448
- Bakers Pride: 784448
- Bevles: 784448, BVL784448
- Cres Cor: 0769 159, 0769-159, 0769159
Ordering by part number is the most reliable way to get the right part. If you are matching an existing component, compare the values in the table rather than the description.
