SHURflo 166-296-07 Gas-Operated Syrup Pump - 3/8" SS Barb Outlet with Auto Shut-Off
$7910
SHURflo 166-296-07 Gas-Operated Syrup Pump - 3/8" SS Barb Outlet with Auto Shut-Off
On Sale
SHURflo 166-296-07 Gas-Operated Syrup Pump - 3/8" SS Barb Outlet with Auto Shut-Off
In stock
$7910$99.99Save $20.89
30-day returns · Easy with prepaid labels provided
Get it by 3–5 business days
Free shipping · Change ZIP
As soon as tomorrow. Choose Next Day during checkout.
- High-Volume Syrup Delivery: The SHURflo 166-296-07 is engineered to power up to four soda faucets, making it the ideal BIB pump for busy restaurants and stadiums.
- Sanitary Stainless Steel Outlet: Features a 3/8" stainless steel barb that resists corrosion from acidic fruit juices and syrups, ensuring a long service life in beverage dispensing systems.
- Automatic Sold-Out Shut-Off: Integrated vacuum sensing technology stops the pump when the bag is empty, preventing air from entering the lines and maintaining perfect soda brix ratios.
- Gas-Driven Versatility: Operates efficiently on CO2 or compressed air, eliminating the need for electrical wiring in wet syrup rack environments.
- Rapid Tool-Free Servicing: Designed with quick-disconnect fittings and a snap-on bracket, allowing for 30-second pump swaps and minimized soda fountain downtime.
?
Need a hand?
Bilingual support from real techs · Mon–Fri 8:30–5 CT
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.

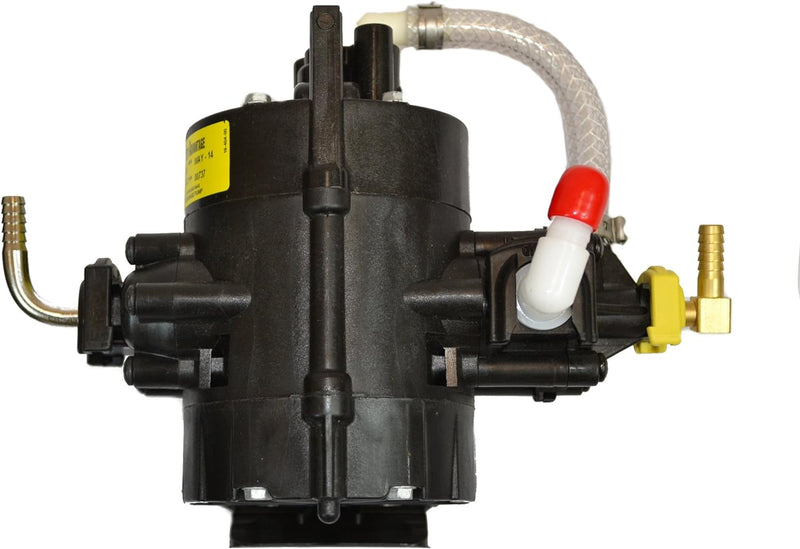

The SHURflo 166-296-07 is a high-performance, gas-driven diaphragm pump engineered for the reliable delivery of Bag-in-Box (BIB) syrups, juices, teas, and wines. Powered by CO2, Nitrogen, or clean compressed air, this pump ensures a consistent flow to post-mix dispenser valves even in high-volume environments. Featuring a 3/8" stainless steel barb outlet for maximum durability and sanitation, the 166-296-07 includes an integrated "auto sold-out" vacuum switch that automatically stops the pump when the bag is empty and restarts immediately upon connection of a fresh BIB.
- Model: SHURflo 166-296-07 (High-Flow Series)
- Outlet Port: 3/8" (9.5mm) 304 Stainless Steel Barb
- Inlet/Gas Ports: 1/4" (6.3mm) Plastic Barbs
- Capacity: Supports up to 2 fast-flow or 4 regular beverage faucets simultaneously
- Power Source: CO2, Nitrogen, or Filtered Compressed Air
- Operating Pressure: 20 PSI (1.4 bar) min / 80 PSI (5.5 bar) max
- Mounting: Includes a snap-on bracket for easy rack installation
- Features: Automatic vacuum shut-off and quick-disconnect fittings
Technician's Note: This SHURflo model is highly valued for its "high-suction" capability, allowing the syrup rack to be located further from the dispenser than standard pumps. If the pump begins "short-cycling" (rapidly clicking without moving fluid), check the CO2 supply pressure; if the pressure is too low, the internal diaphragm cannot complete a full stroke. For optimal performance with 3/8" ID tubing, use 15.7mm Oetiker clamps on the stainless steel outlet to ensure a permanent, leak-proof seal under peak pressure.
