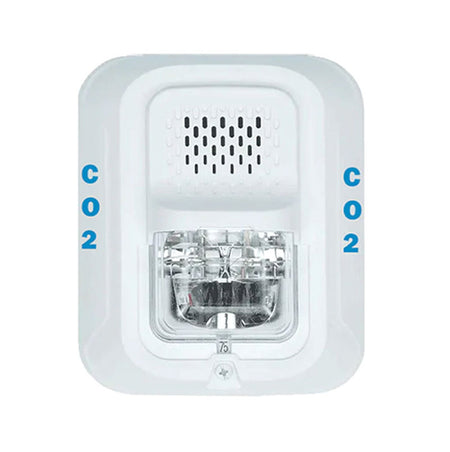

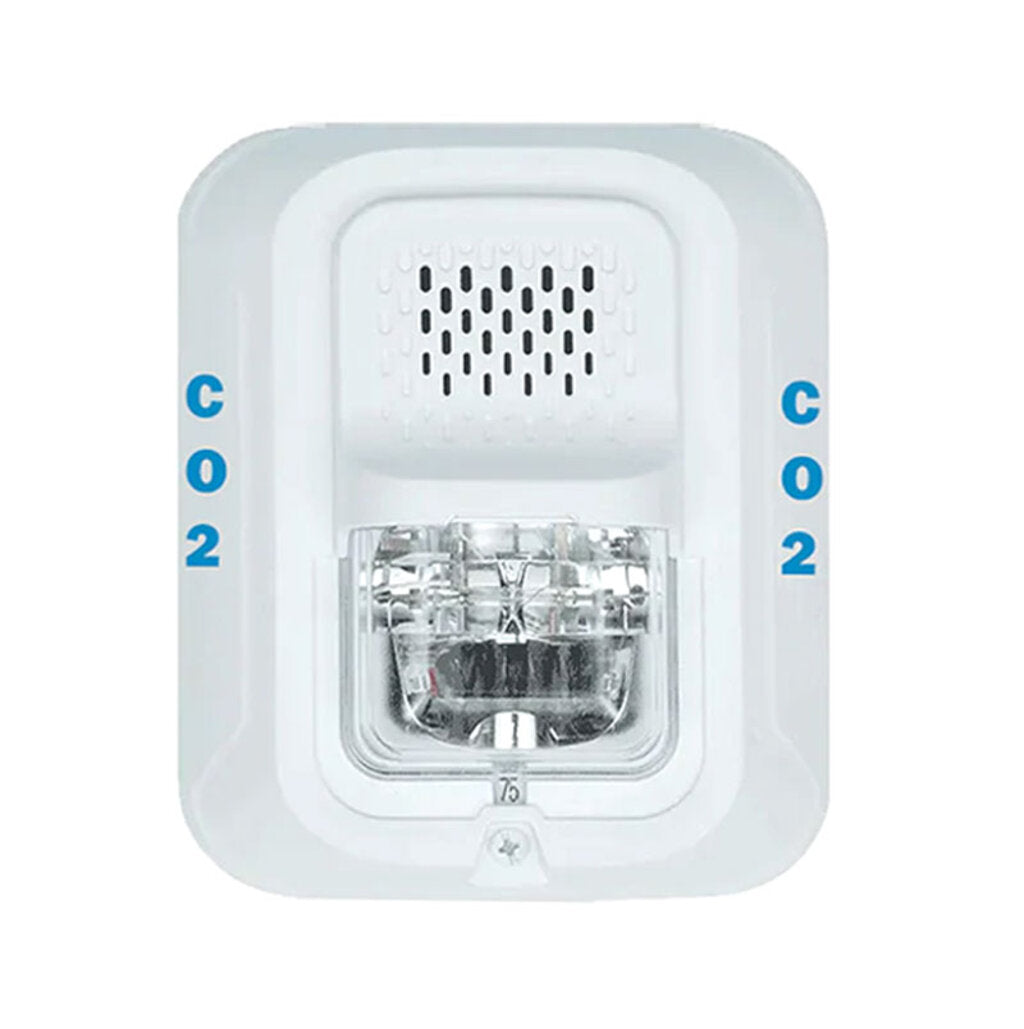

Micro Matic CM-7004 Horn/Strobe Alarm CO2 Detection Monitor
Micro Matic CM-7004 Horn/Strobe Alarm CO2 Detection Monitor
- High-Intensity Visual Alerts: Delivers over 100 candela for clear and immediate notification.
- Powerful Audible Alarm: Emits up to 120dB to ensure hazards are recognized promptly.
- Customizable Alerts: Alternate color lenses available in amber, blue, green, and red.
- Easy Installation: Uses standard Ethernet connections for quick setup with CO2 sensors.
- Seamless Integration: Designed to work with the CO2METER® 7000 Series CO2 Safety Monitor System.
- Compliance: Helps maintain compliance with CO2 safety regulations in commercial environments.
- Versatile Use: Ideal for breweries, bars, restaurants, and other commercial establishments.
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
The Micro Matic Strobe/Horn Unit is an essential component of the CO2METER® 7000 Series CO2 Safety Monitor System, providing reliable visual and audible alerts in the event of a CO2 hazard. Designed to be connected directly to CO2 sensors, this unit offers over 100 candela of visual notification and up to 120dB of audible alarm, ensuring that hazards are instantly recognized by staff and customers.
This unit supports standard Ethernet connections, simplifying installation and integration into your existing safety systems. With alternate color lenses available, including amber, blue, green, and red, you can customize the alerts to suit different areas of your facility. Ideal for breweries, bars, restaurants, and commercial establishments, this strobe/horn unit ensures compliance with CO2 safety regulations and enhances overall workplace safety.
| Name | Value |
|---|---|
| Relays | 3 x high powered configurable relays |
| Alarms | 5,000 TWA, 5,000 ppm, 1.5%, and 3% (default) |
| Custom Alarms | 1%, 2%, 2.5%, 3.5%, 4% |
| Measurement Range | 0-5% (0-50,000 ppm) |
| CO2 Measurement | NDIR (Non-Dispersive Infrared) |
| Measurement Interval | 2 seconds (0.5Hz) |
| Calibration | Zero with Nitrogen or Factory Calibration |
| Connections | Input/ Output/ Strobe - CAT5 8 pin connector |
| Type | Alarm |
| Includes | 1 year warranty - See CO2Meter Terms and Conditions. |
| Features | 24VDC hard-wired power option |
| Operating Temperature | 32-122°F (0-50°C) |
| Power Source | 110-220 VAC 50/60 Hz to 12 VDC Power Adapter |
| Brand | CO2 Meter |
