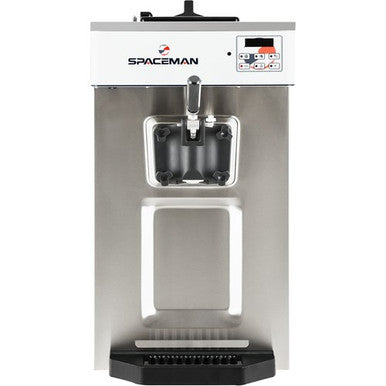

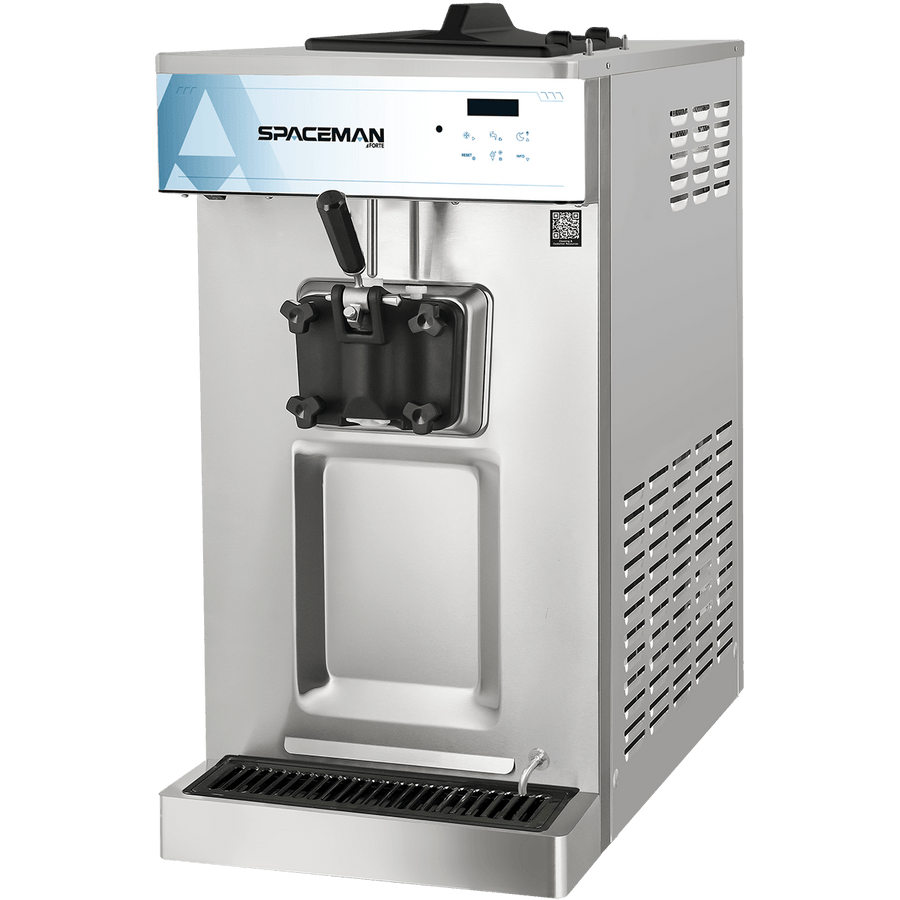

Spaceman 6236-C Single-Flavor Commercial Soft Serve & Frozen Yogurt Machine, Countertop, Gelato & Sorbet Maker, Digital, 208–230V
Spaceman 6236-C Single-Flavor Commercial Soft Serve & Frozen Yogurt Machine, Countertop, Gelato & Sorbet Maker, Digital, 208–230V
- Single flavor · 3.4 qt freezing cylinder + 20 qt refrigerated hopper
- Makes soft serve, frozen yogurt, gelato and sorbet
- Patented controlled-contact flooded evaporator for fast freeze-down & recovery
- Gravity feed — simple to operate and clean
- Digital controls · 208–230V · countertop
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
Overview
At a glance
Overview
The Spaceman 6236-C is a 208–230V countertop single-flavor commercial soft serve and frozen yogurt machine. It serves soft serve, frozen yogurt, gelato, sorbet, and other frozen desserts, using Spaceman's patented freezing technology for fast freeze-down and recovery.
A gravity-feed design keeps the machine simple to operate and easy to clean. Pre-cooling in the 20 qt refrigerated hopper chills mix before it enters the freezing cylinder, improving freeze times and keeping product food-safe overnight, including dairy-based mixes. Digital controls make consistency easy to set and standardize across locations.
Its countertop footprint fits limited counter space; the legs can be removed for true countertop placement. Ideal for ice cream shops, frozen-yogurt bars, restaurants, cafes, buffets, convenience stores, and dessert menus.
Key features
- Single flavor · 3.4 qt freezing cylinder + 20 qt refrigerated hopper
- Makes soft serve, frozen yogurt, gelato and sorbet
- Patented controlled-contact flooded evaporator for fast freeze-down & recovery
- Gravity feed — simple to operate and clean
- Digital controls · 208–230V · countertop
Full specifications
| Type | Soft serve / frozen yogurt, countertop |
| Flavors | Single flavor |
| Feed | Gravity feed |
| Control | Digital |
| Freezing cylinder | 3.4 qt |
| Hopper capacity | 20 qt |
| Cooling | Air-cooled, self-contained |
| Electrical | 208–230 VAC |
| Dimensions (W×D×H) | 17.9" × 26.8" × 38" |
| Weight | 320 lb |
| Warranty | 1-year limited; 2–5 year coverage upgrades available |
Frequently asked questions
What can the Spaceman 6236-C make?
Soft serve ice cream, frozen yogurt, gelato, sorbet, and other frozen desserts.
How many flavors does the 6236-C serve?
A single flavor.
Is the 6236-C gravity-fed or air-pump?
It is a gravity-feed machine — simple to operate and easy to clean.
Is the 6236-C countertop or floor-standing?
It is a countertop unit; the legs can be removed for true countertop placement.
Can I leave mix in the 6236-C overnight?
Yes. The refrigerated hopper keeps mix food-safe overnight, including dairy-based mixes.
What power does the 6236-C need, and what warranty is included?
It runs on 208–230V and is backed by a 1-year limited warranty with optional 2 to 5 year coverage upgrades.
Genuine Spaceman parts
Keep your 6236-C running at peak performance with OEM Spaceman parts — augers, scraper blades, O-rings, drive components and more, matched to this machine.
Key features
- Single flavor · 3.4 qt freezing cylinder + 20 qt refrigerated hopper
- Makes soft serve, frozen yogurt, gelato and sorbet
- Patented controlled-contact flooded evaporator for fast freeze-down & recovery
- Gravity feed — simple to operate and clean
- Digital controls · 208–230V · countertop
Documents & downloads
Authorized service & installation
This is commercial equipment — warranty coverage requires installation and service by a Spaceman-authorized provider. Use Spaceman’s official locator to find authorized installation, startup, and warranty service in your area.
Find authorized service →Get your unadvertised price
Spaceman doesn’t allow us to publish our lowest price online. Request an unadvertised deal and we’ll send you the best price we’re allowed to quote — privately, with no obligation.
Own this machine?
Parts Diagrams
Interactive exploded diagrams for this unit. Pick a section — it opens right here, and every numbered callout links to the exact in-stock replacement part.

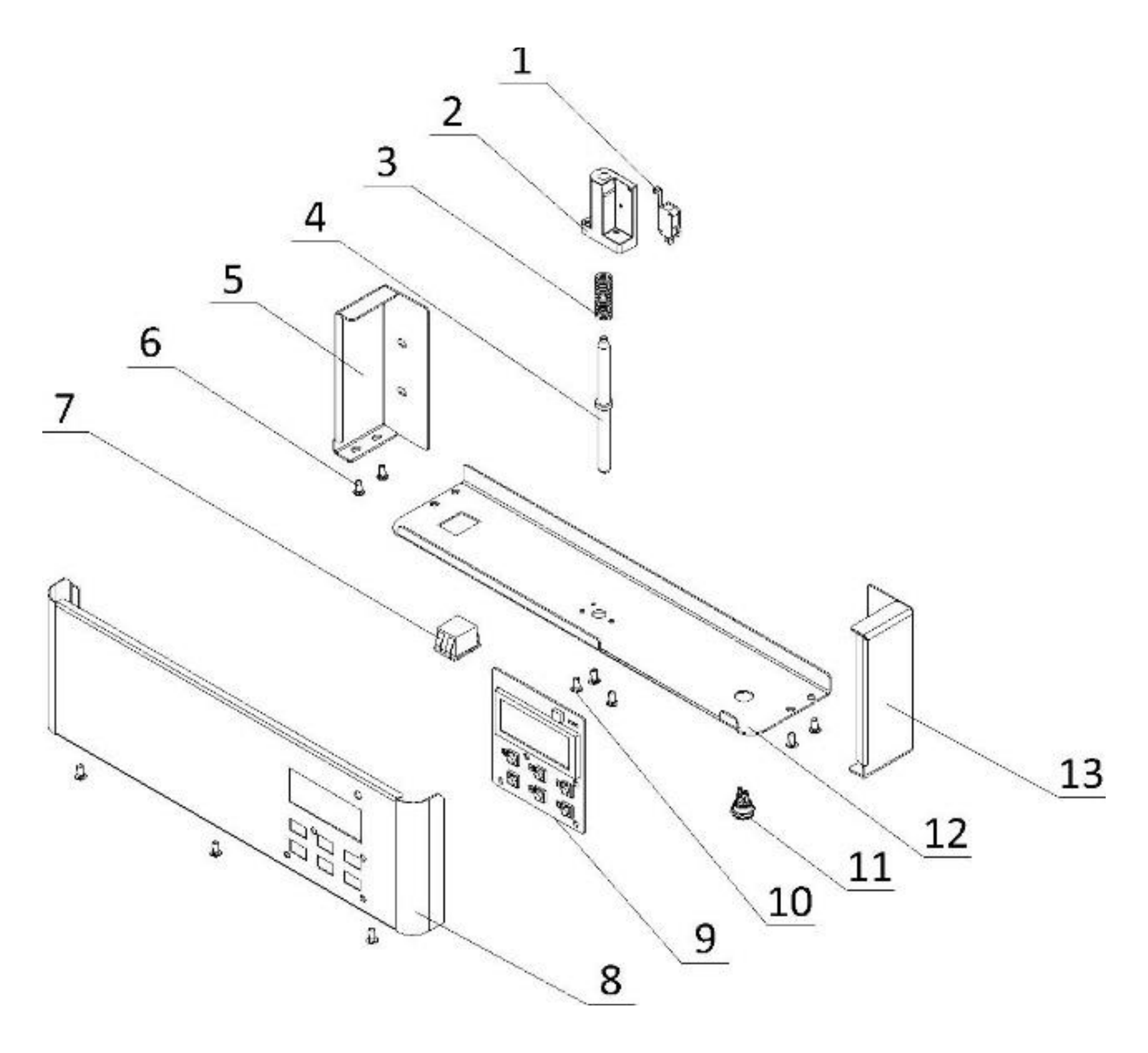

Control Panel
Control board, switches, panels
Click a numbered pin to view part details

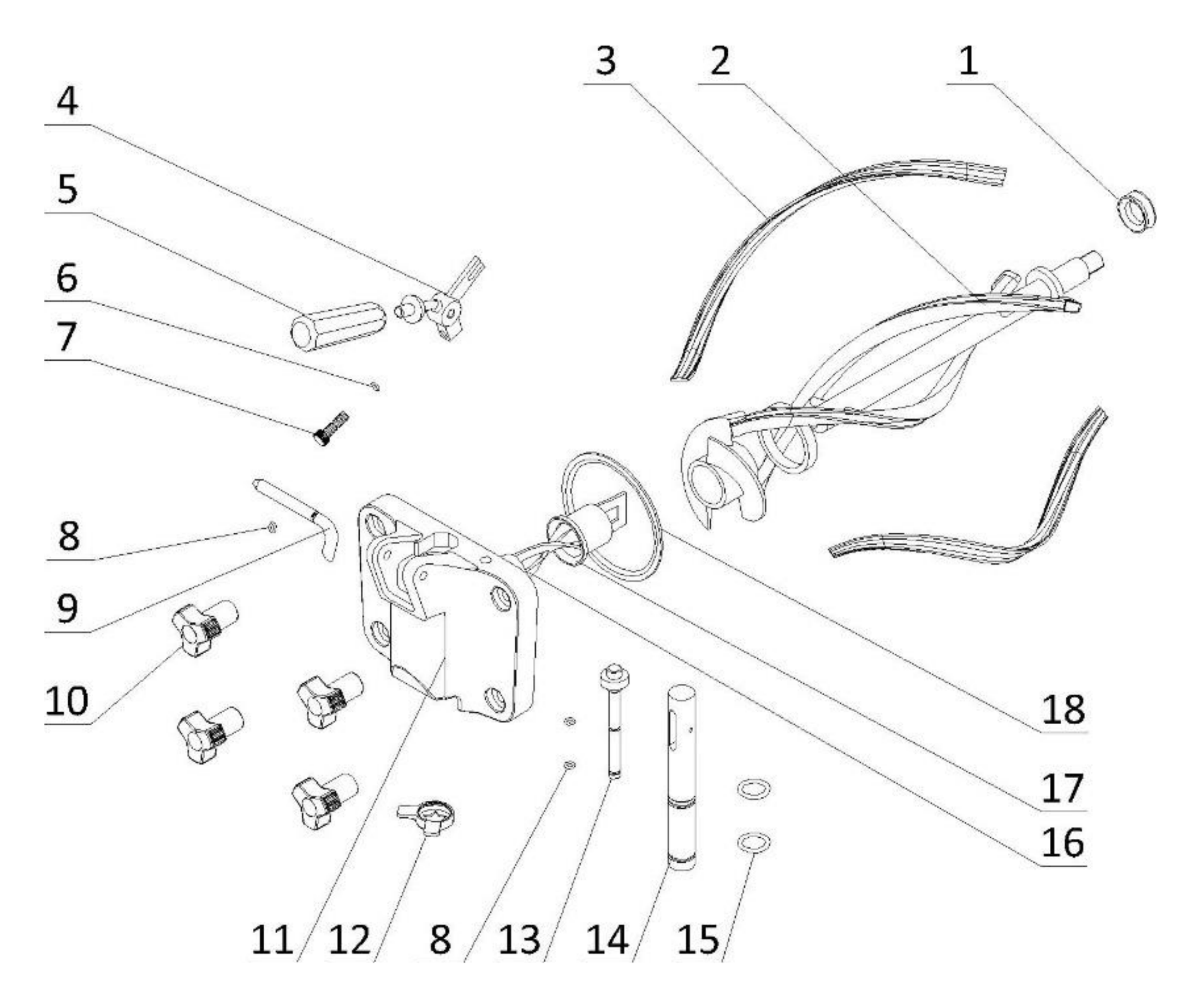

Door & Beater
Draw valve, door, beater, seals
Click a numbered pin to view part details

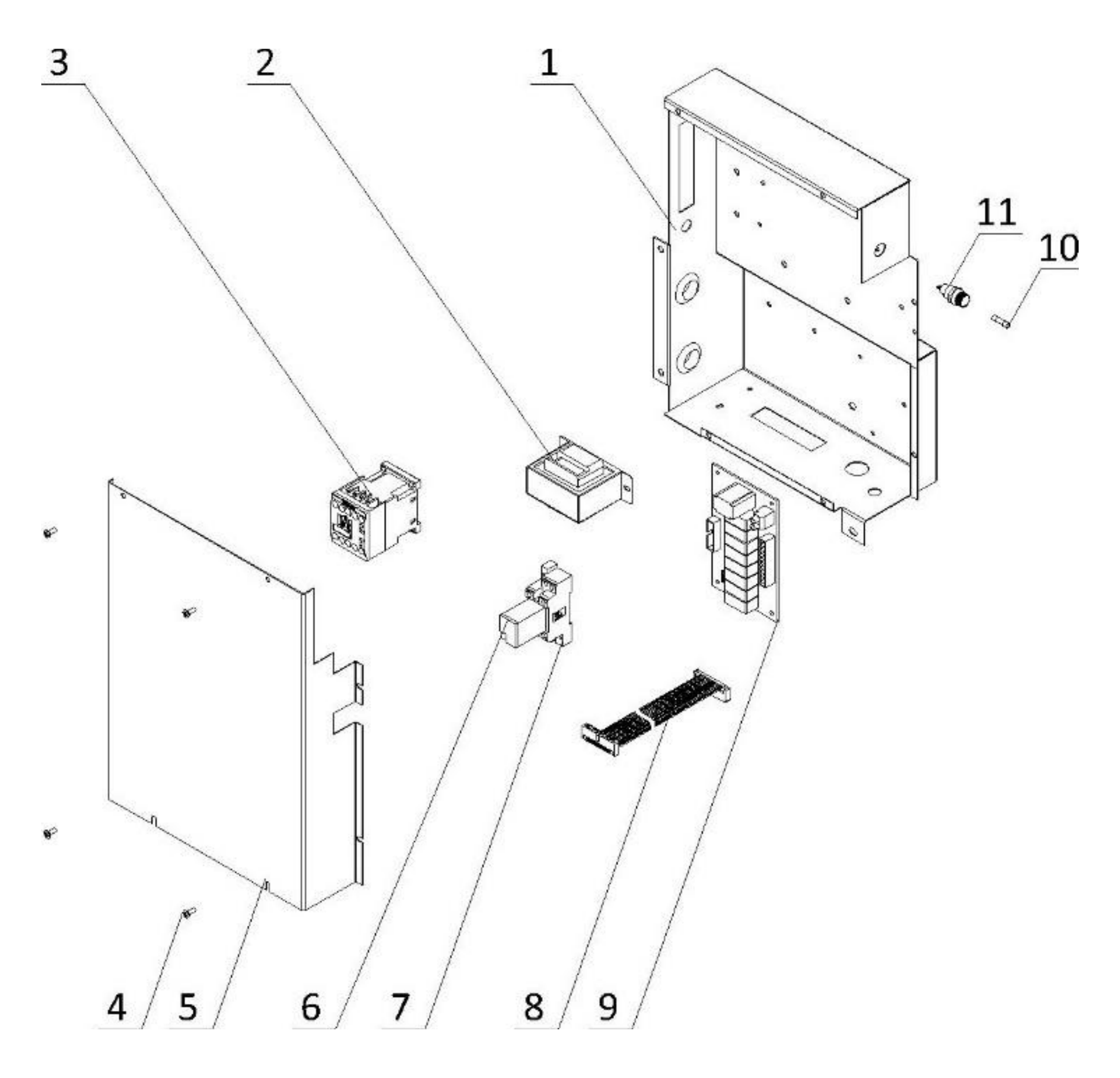

Electrical Box
Contactors, relays, transformers
Click a numbered pin to view part details

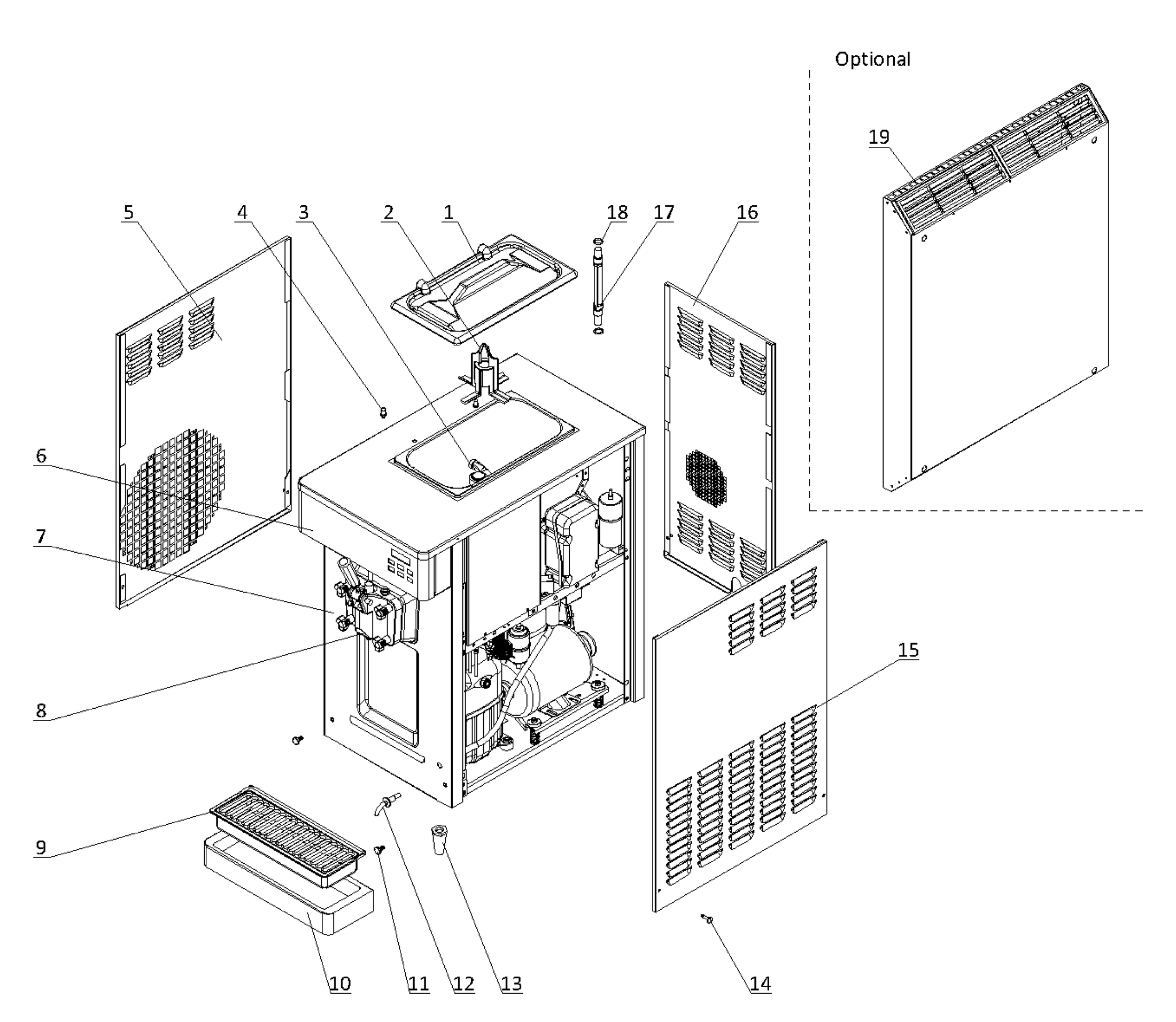

External
Cabinet, panels, drip tray
Click a numbered pin to view part details

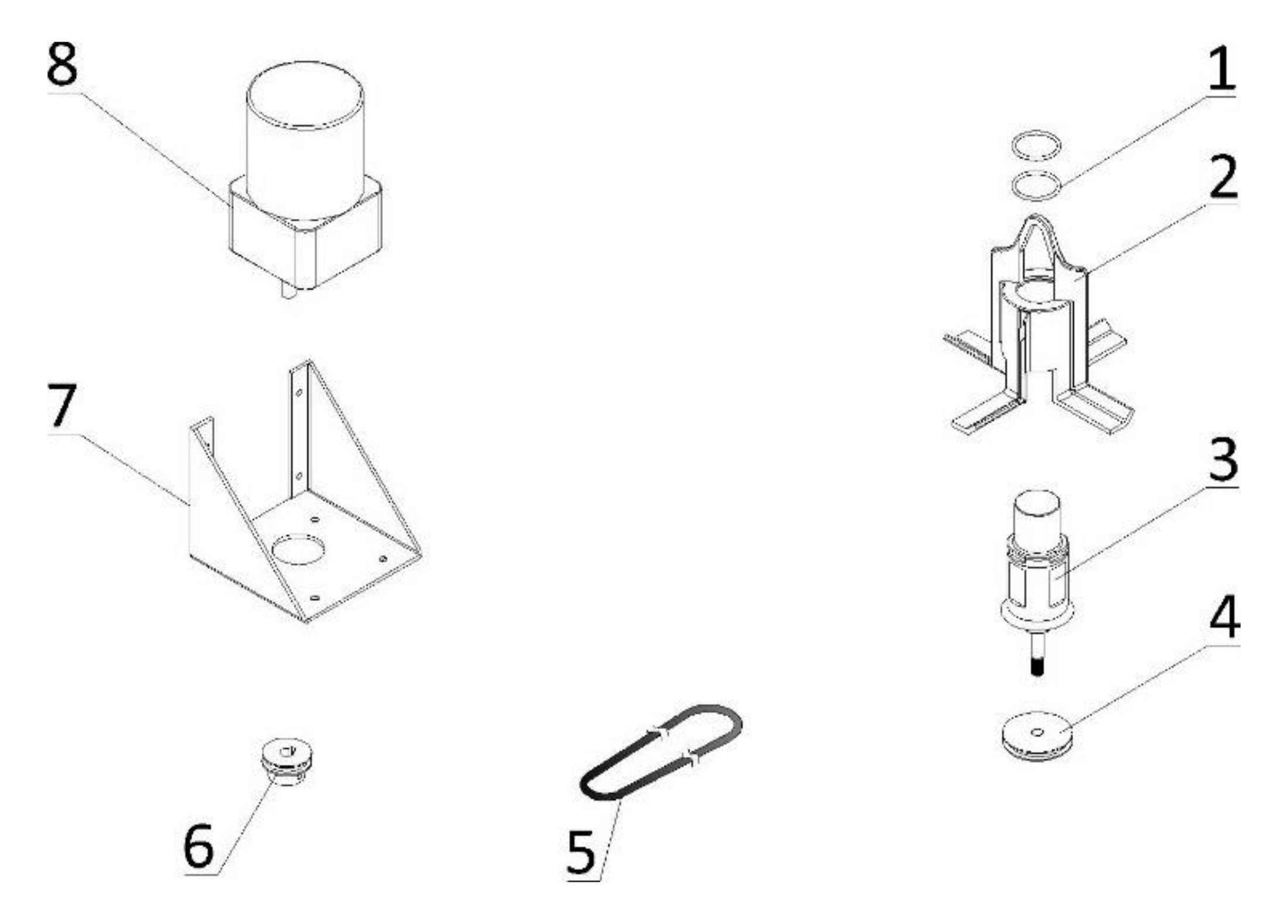

Hopper Agitator
Blade, pulleys, belt, motor
Click a numbered pin to view part details

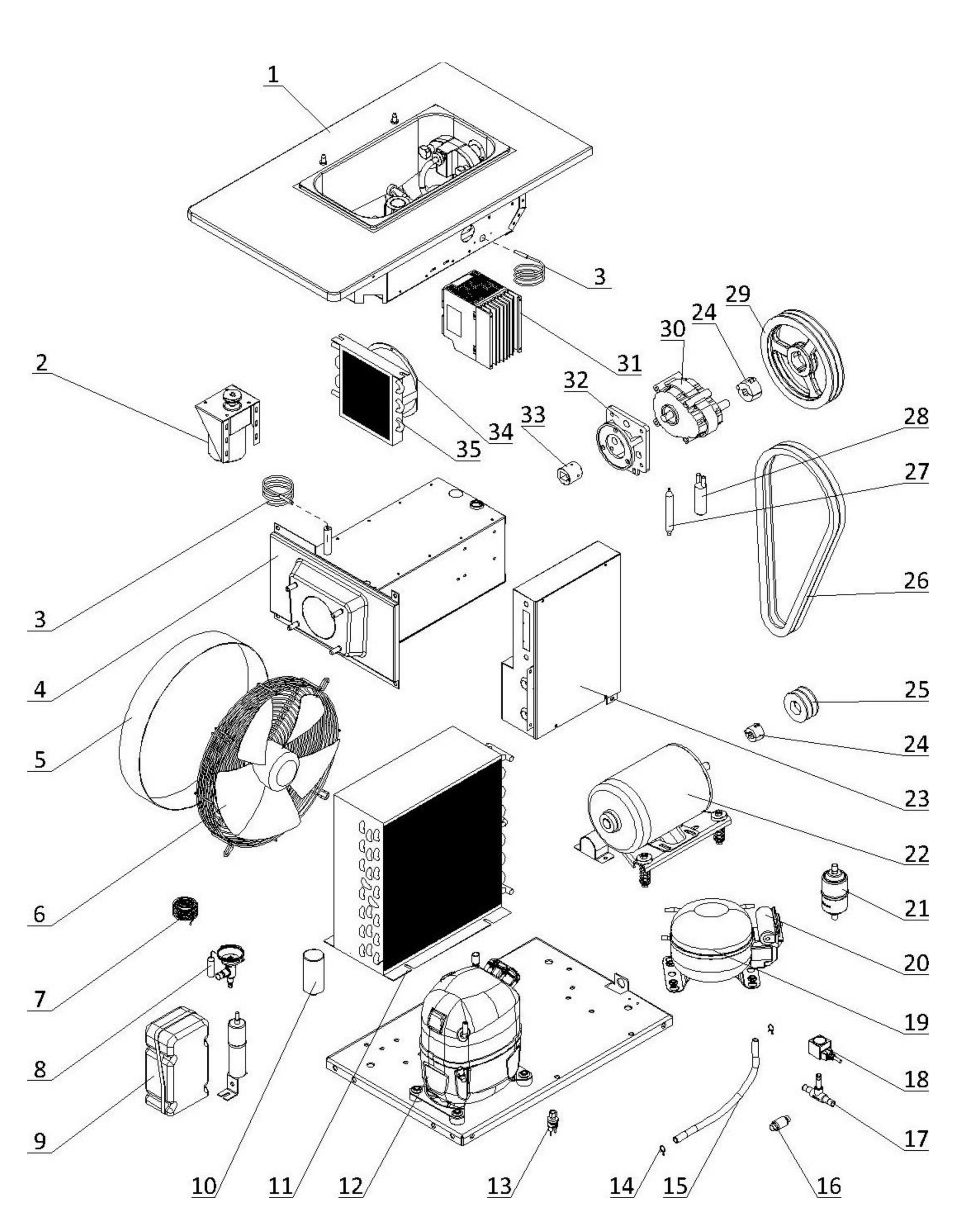

Internal
Compressors, refrigeration, motors
Click a numbered pin to view part details
