Micro Matic RPK-1-PP 4.25 Inch Premium Secondary Regulator Panel with Pro-Max and 3/8 Inch Hoses
Micro Matic RPK-1-PP 4.25 Inch Premium Secondary Regulator Panel with Pro-Max and 3/8 Inch Hoses
- Single-gauge secondary CO₂ regulator panel for draft systems
- Controls pressure to one product or keg line
- 0–60 PSI output range ensures accurate gas regulation
- Includes factory-installed 3/8" hoses for plug-and-play setup
- Wall-mountable panel for compact and organized gas distribution
- Ideal for bars, taprooms, restaurants, and breweries
- Built by Micro Matic for commercial-grade performance
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.

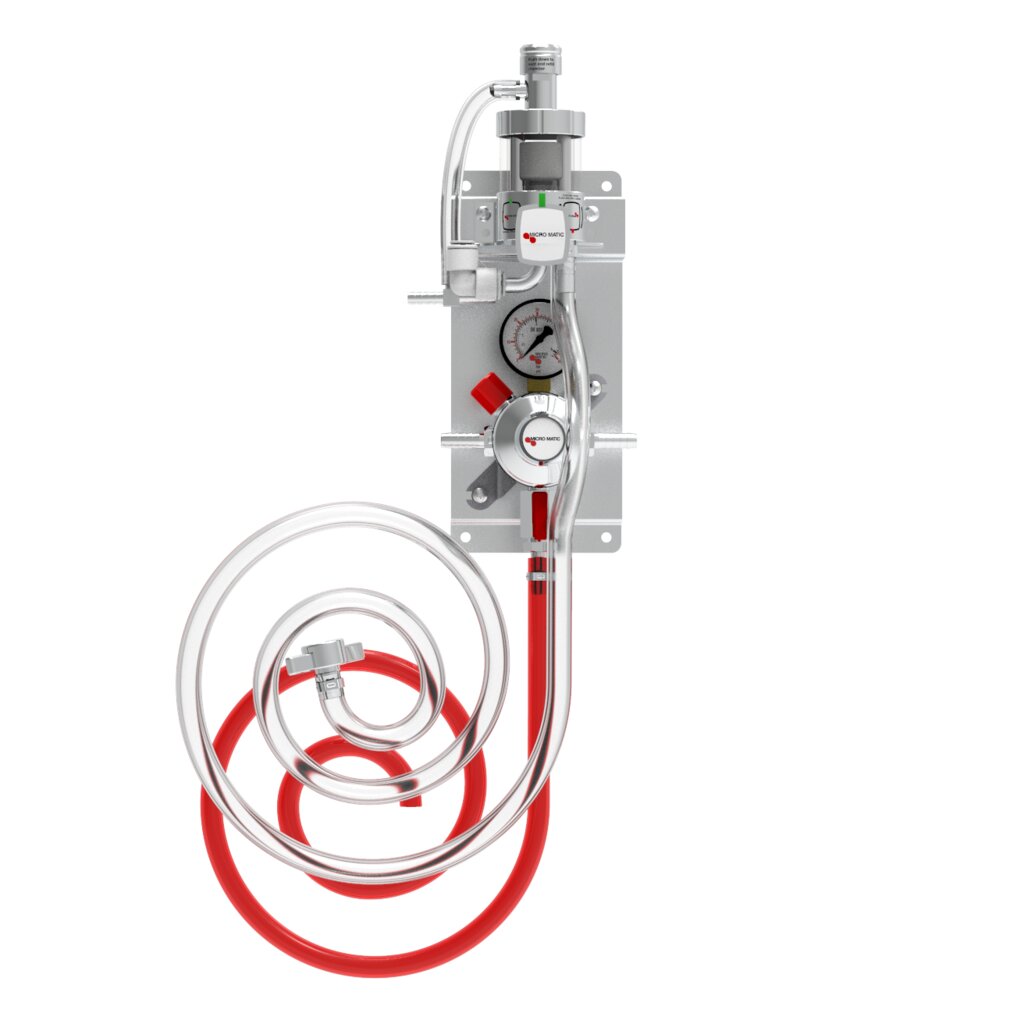

The Micro Matic RPK-1-PP Single Gauge Secondary Regulator Panel is a dependable, compact solution for precision CO₂ control in draft beverage systems. Designed to regulate a single product line, this panel features a single pressure gauge and comes pre-plumbed with 3/8" hoses for quick and secure installation.
Ideal for expanding an existing system or managing individual keg pressures, the unit delivers consistent output across a 0–60 PSI range. The rugged, wall-mountable design ensures durability and space efficiency in bars, restaurants, and breweries. Built by Micro Matic, this panel is engineered for commercial reliability and ease of use.
| Feature | Specification |
|---|---|
| Type | Panel Assembly - CO2 or Mixed Gas |
| Panel Dimensions | 4-1/2" wide x 10" tall |
| Performance | 1 Pressure / 1 Product |
| Inlet | 3/8" O.D. (Both Sides) |
| Output Pressure Gauge | 0-60 PSI, for accurate product pressure |
| Outlet Barbs | 3/8" O.D. with shut-off |
| Pressure Relief Valve | Safety Pressure Relief Valve Releases at 55–65 PSI |
| Connection (Product) | 3/8" John Guest fitting |
| Jumper Hose | 8' of 3/8" I.D. Clear Vinyl / 304 SS tail piece |
| Gas Hose | 8' of 5/16" I.D. Red Vinyl |
| Installation | Wall mount panel, pre-drilled holes |
