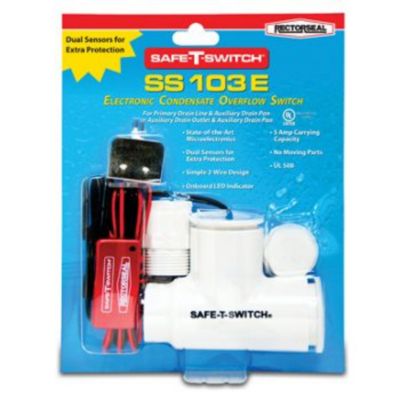

RectorSeal® Condensate Drain Switch 3/4" 24V Polyvinyl Chloride (PVC) 97692
RectorSeal® Condensate Drain Switch 3/4" 24V Polyvinyl Chloride (PVC) 97692
- 3/4" condensate drain switch
- Polyvinyl Chloride (PVC) construction
- 24V operation
- UL Listed and UL Recognized
- Genuine RectorSeal part 97692
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
The RectorSeal® 97692 is a 3/4" condensate drain switch for condensate management and HVAC plumbing. RectorSeal® - 97692 - Safe-T-Switch SS103E Electronic Condensate shutoff switches with LED indicator
Specifications
| Size | 3/4" |
| Type | Inline |
| Composition | Polyvinyl Chloride (PVC) |
| Connection Size | 3/4" |
| Voltage | 24 VAC |
| For Use With | Primary drain pan |
| Approvals | UL Listed; UL Recognized |
| Country of Origin | CHN |
| Cord Length | 48" |
| Maximum Amps Running | 1.25 |
| Plenum Rated | Yes |
| Switch Type | Drain Line |
| Product Line | Safe-T-Switch® |
| Wire Gauge | 18 AWG |
| Mounting Type | Primary drain line and auxiliary drain pan or auxiliary drain outlet and auxiliary drain pan |
RectorSeal® publishes the figures in the table above for this part number. Nothing here is inferred — if a value you need is not listed, it was not published by the manufacturer, and we would rather tell you that than guess.
For the installer: confirm nominal size and connection type against the existing run before ordering. Sizes in this category are quoted by the convention the manufacturer uses for the product family, which is not always the same as nominal pipe size.
Documents & Downloads
Warranty
3-Year Manufacturer Warranty — RectorSeal products carry a 3-year limited warranty against defects, no registration required. We handle the claim for you — contact us with your order number.
