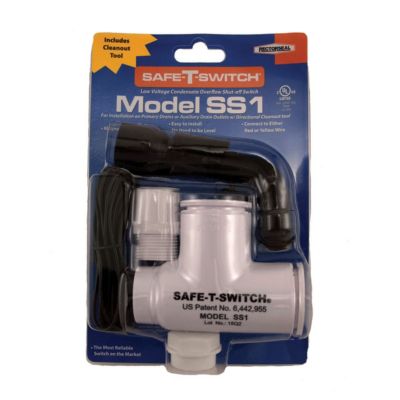

RectorSeal® Condensate Drain Switch 3/4" 24V Polyvinyl Chloride Inline 97632
RectorSeal® Condensate Drain Switch 3/4" 24V Polyvinyl Chloride Inline 97632
- 3/4" condensate drain switch
- Polyvinyl Chloride construction
- 24V operation
- UL Listed and UL Recognized
- Genuine RectorSeal part 97632
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
The RectorSeal® 97632 is a 3/4" condensate drain switch for condensate management and HVAC plumbing. Rectorseal - 97632 - Safe-T-Switch SS1 Primary Drain/ Secondary Drain Outlet Condensate Shutoff Switch
Specifications
| Size | 3/4" |
| Type | Inline |
| Composition | Polyvinyl Chloride |
| Connection Size | 3/4" |
| Voltage | 24 VAC |
| For Use With | All Tonnages |
| Approvals | UL Listed; UL Recognized |
| Country of Origin | CHN |
| Cord Length | 72" |
| Maximum Amps Running | 1.25 |
| Plenum Rated | No |
| Switch Type | Inline / Auxiliary |
| Product Line | Safe-T-Switch® |
| Wire Gauge | 18 AWG |
| Mounting Type | Primary |
RectorSeal® publishes the figures in the table above for this part number. Nothing here is inferred — if a value you need is not listed, it was not published by the manufacturer, and we would rather tell you that than guess.
For the installer: confirm nominal size and connection type against the existing run before ordering. Sizes in this category are quoted by the convention the manufacturer uses for the product family, which is not always the same as nominal pipe size.
Documents & Downloads
Warranty
3-Year Manufacturer Warranty — RectorSeal products carry a 3-year limited warranty against defects, no registration required. We handle the claim for you — contact us with your order number.
