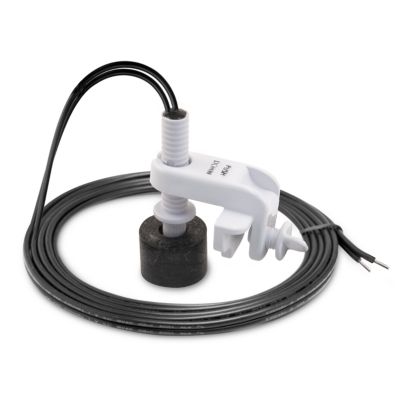

RectorSeal® Condensate Overflow Switch 3.15" W x 1.58" D x 3.55" H 24V 97089
RectorSeal® Condensate Overflow Switch 3.15" W x 1.58" D x 3.55" H 24V 97089
- 3.15" condensate overflow switch
- Polyvinyl Chloride construction
- 24V operation
- UL Listed
- Genuine RectorSeal part 97089
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
The RectorSeal® 97089 is a 3.15" W x 1.58" D x 3.55" H metal drain pan for condensate management and HVAC plumbing. Rectorseal - 97089 - Safe-T-Switch SS3 Primary And Secondary Drain Pan Condensate Overflow Switch
Specifications
| Size | 3.15" W x 1.58" D x 3.55" H |
| Type | Drain Pan |
| Composition | Polyvinyl Chloride |
| Connection Size | Works with 1-2” deep drain pans |
| Voltage | 24 VAC |
| For Use With | Safety drain pans |
| Approvals | UL Listed |
| Country of Origin | CHN |
| Cord Length | 72" |
| Maximum Amps Running | 1.25 |
| Plenum Rated | No |
| Switch Type | Drain Pan |
| Product Line | Safe-T-Switch® |
| Wire Gauge | 18 AWG |
| Mounting Type | Secondary |
RectorSeal® publishes the figures in the table above for this part number. Nothing here is inferred — if a value you need is not listed, it was not published by the manufacturer, and we would rather tell you that than guess.
For the installer: confirm nominal size and connection type against the existing run before ordering. Sizes in this category are quoted by the convention the manufacturer uses for the product family, which is not always the same as nominal pipe size.
Documents & Downloads
Warranty
3-Year Manufacturer Warranty — RectorSeal products carry a 3-year limited warranty against defects, no registration required. We handle the claim for you — contact us with your order number.
