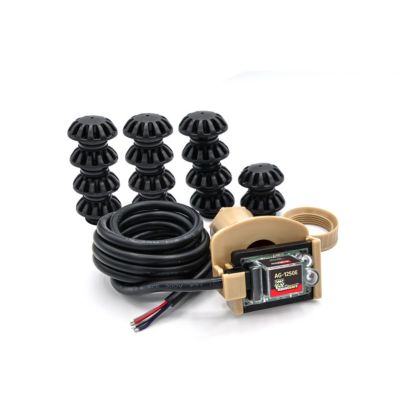

RectorSeal® Condensate Overflow Sensor 5" x 4 1/2" x 3" 24V Polystyrene 96143
RectorSeal® Condensate Overflow Sensor 5" x 4 1/2" x 3" 24V Polystyrene 96143
- 5" x 4 1/2" x 3" condensate overflow sensor
- Polystyrene construction
- 24V operation
- UL Listed and UL Recognized
- Genuine RectorSeal part 96143
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
The RectorSeal® 96143 is a 5" x 4 1/2" x 3" hvac plumbing fitting for condensate management and HVAC plumbing. RectorSeal® - 96143 - AG4200 Electronic Condensate Sensor
Specifications
| Size | 5" x 4 1/2" x 3" |
| Type | Electronic |
| Composition | Polystyrene |
| Connection Size | 3/4" |
| Voltage | 24 VAC |
| For Use With | Goliath series secondary drain pans, furnace series secondary drain pans, value series secondary drain pans, and titan Flexible series secondary drain pans |
| Approvals | UL Listed; UL Recognized |
| Country of Origin | CHN |
| Cord Length | 6' of control wire |
| Maximum Amps Running | 5 |
| Plenum Rated | No |
| Switch Type | Electronic |
| Product Line | Goliath |
| Wire Gauge | 18 AWG |
| Mounting Type | Secondary |
RectorSeal® publishes the figures in the table above for this part number. Nothing here is inferred — if a value you need is not listed, it was not published by the manufacturer, and we would rather tell you that than guess.
For the installer: confirm nominal size and connection type against the existing run before ordering. Sizes in this category are quoted by the convention the manufacturer uses for the product family, which is not always the same as nominal pipe size.
Documents & Downloads
Warranty
3-Year Manufacturer Warranty — RectorSeal products carry a 3-year limited warranty against defects, no registration required. We handle the claim for you — contact us with your order number.
