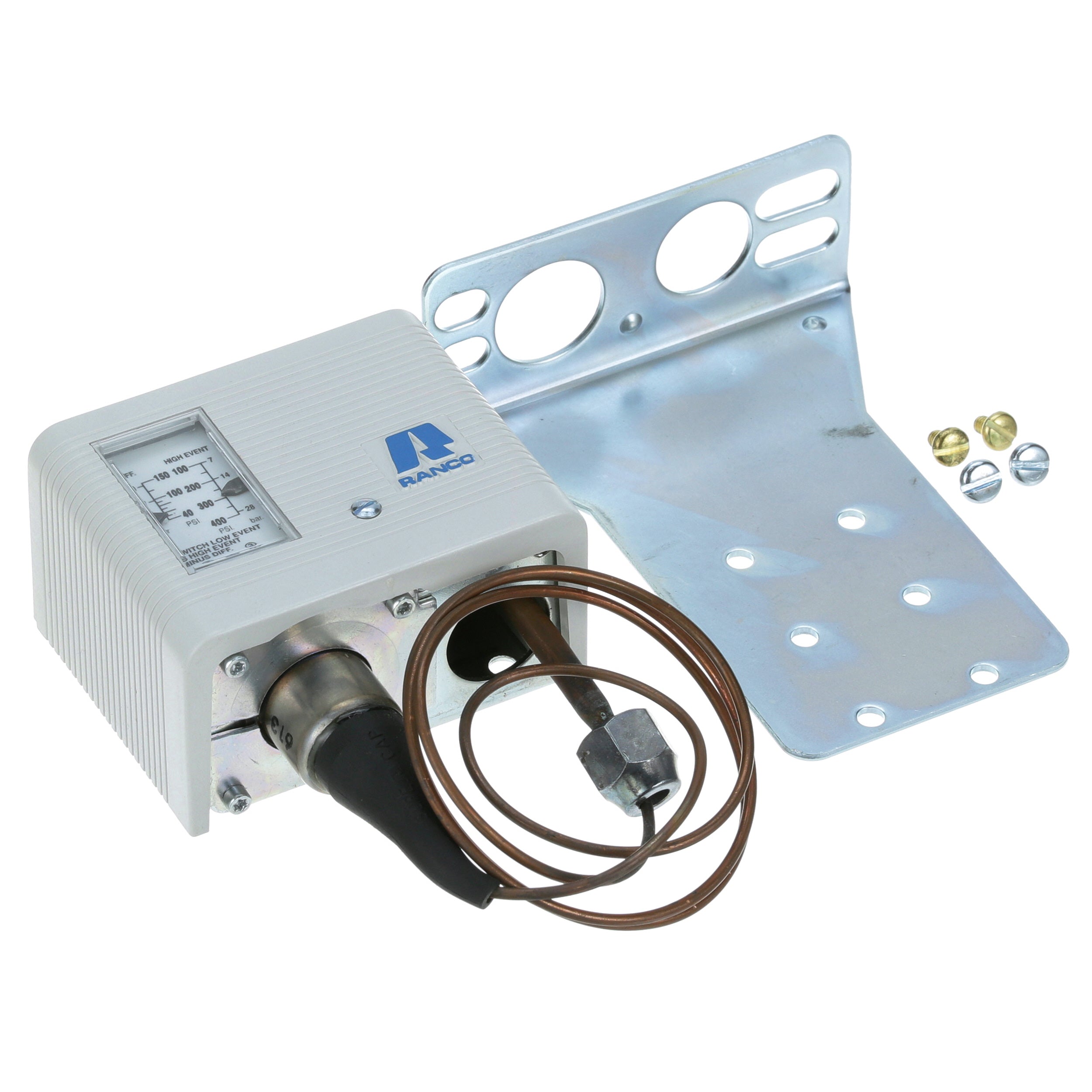

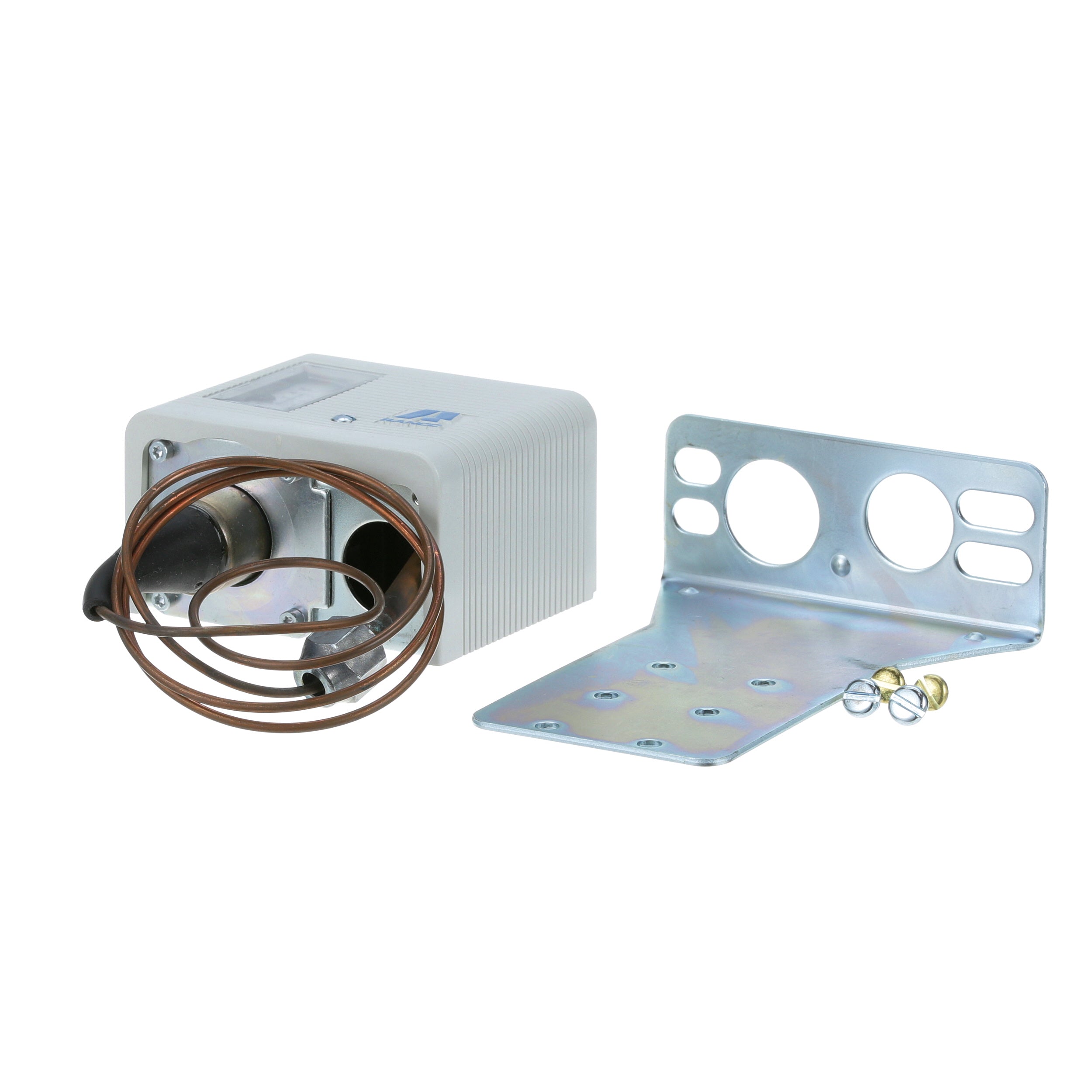

Ranco® High Pressure Refrigeration Control w/ 36 in. Capillary (100-400 PSI) 120/240V - O10-2054
Ranco® High Pressure Refrigeration Control w/ 36 in. Capillary (100-400 PSI) 120/240V - O10-2054
- Height (in.): 3
- Length (in.): 6.63
- Size: 36
- Voltage (V AC): 120/240
- Width (in.): 4
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
Ranco® O10-2054 is a High Pressure Refrigeration Control w/ 36" Capillary (100-400 PSI). Matching the original part number is the surest way to keep the assembly working as designed.
It also cross-references 1 manufacturer part number. Check the number on the part you are replacing, or your unit's model number, against the lists below before ordering. The specifications below are the published figures for this exact part number.
Supplied as a single replacement unit.
Range = 100 To 400 Psig, Differential= 40-150 PSI 36" Cap With Flare Nut, SPST, Full Load Amps = 120/240VAC, 24A Locked Rotor Amps = 120/240VAC, 144A Pilot Duty Volt Amps = 120/240VAC, 720VA.
Specifications
| Height (in) | 3 |
| Length (in) | 6.63 |
| Outlet | Flare nut |
| Pressure (PSI) | 100 to 400 |
| Psi | 100 to 400 |
| Size | 36 |
| Voltage (V AC) | 120/240 |
| Width (in) | 4 |
Cross-reference
- Ranco: O10-2054
Ordering by part number is the most reliable way to get the right part. If you are matching an existing component, compare the values in the table rather than the description.
